Robotic Laser Cladding Equipment Cnc Laser Hardening Machine introduction

Equipment name: 3KW galvanometer laser quenching equipment

Equipment model: QA-RCW-R030-J

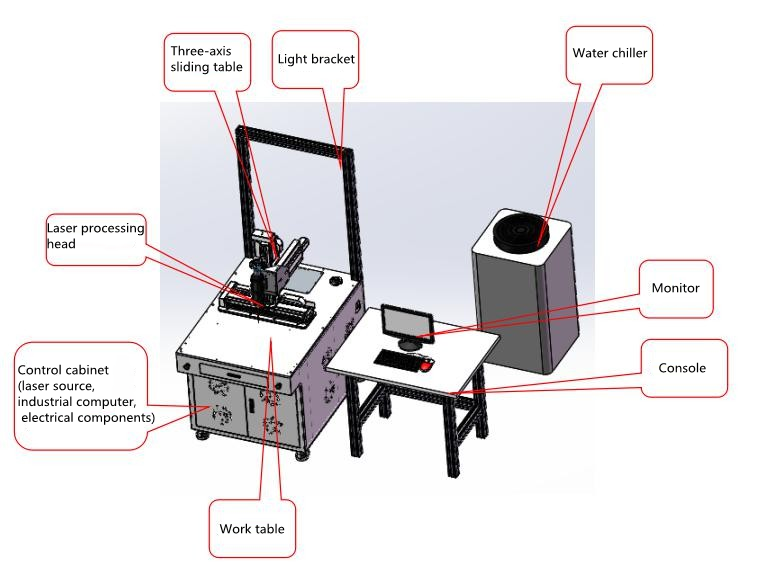

The main structure of Robotic Laser Cladding Equipment Cnc Laser Hardening Machine : The equipment adopts a 3kW fiber laser (including fiber), a galvanometer laser processing head, a three-axis sliding table, a dual-temperature water chiller, a control system, and a fiber support.

 Features

Fiber laser, high brightness, high efficiency, high stability, optical fiber adopts QBH standard interface commonly used at home and abroad, convenient and fast, and good interchangeability;

QUESTT independently researched and developed fiber laser control system with high integration, simple operation, space saving and convenient maintenance;

QUESTT independently develops an operating platform based on years of experience. The system is easy to integrate and operate with one-key operation. The equipment has a wide range of adaptability and a small area of equipment;

The galvanometer laser processing head adopts a new generation of motors and a new generation of high-efficiency water-cooled sealing structure, coupled with customized high-power optical lens components, which perfectly solves a series of process problems caused by high power.

The main configuration list of Robotic Laser Cladding Equipment Cnc Laser Hardening Machine

Equipment performance parameters

laser source

Robotic Laser Cladding Equipment Cnc Laser Hardening Machine adopts fiber laser source, the output optical system adopts reinforced armored output fiber, and the output connector is QBH, which is more convenient for customers to configure. The dynamic working range of this series of products is between 10% and 100% of the rated output power, which can meet the needs of most applications. Its good compatibility has been widely recognized by the market, and the products are sold at home and abroad.

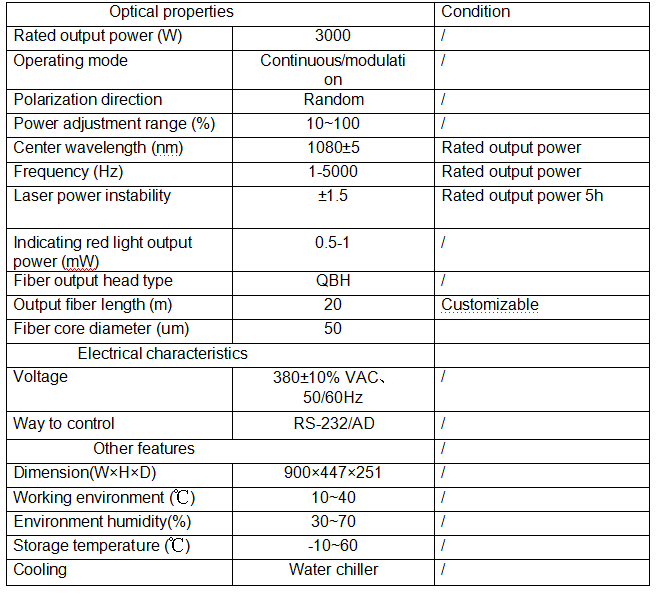

Laser source technical parameter

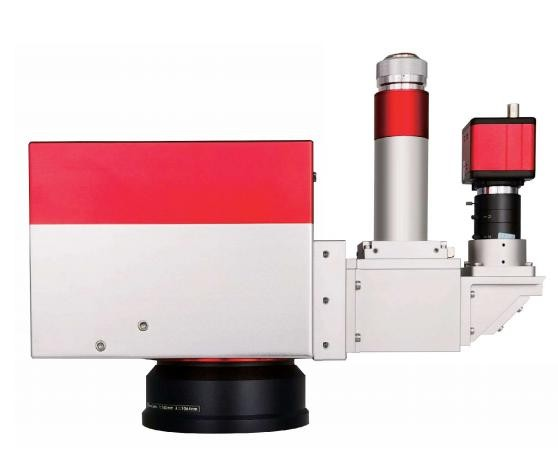

Galvo laser processing head

The laser processing head adopts a new-generation motor and a new-generation drive solution designed specifically for the challenges brought by ultra-high laser power applications and an efficient water-cooled sealing structure, coupled with a customized high-power optical lens assembly, which perfectly solves the high-power down belt A series of technical problems that come with high precision, high linearity, ultra-low temperature drift and other excellent performance, can meet the use of 3000w laser power.

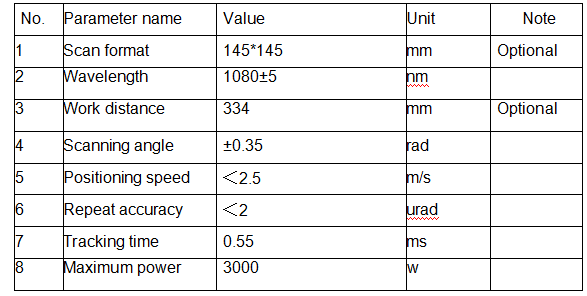

 Optical head performance parameter table:

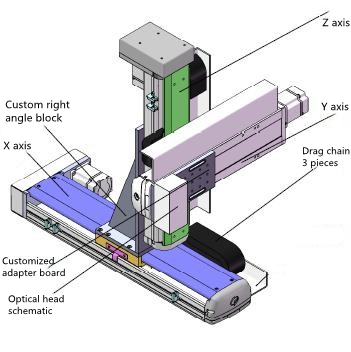

Three-axis sliding table

Robotic Laser Cladding Equipment Cnc Laser Hardening Machine adopts a high-precision three-axis (X, Y, Z) movable sliding table, and the positioning accuracy of the XYZ axis is ±0.06mm, which meets the needs of laser processing technology. The laser processing head is installed at the front end of the Y-axis of the movable sliding table to ensure that the laser processing head can operate independently in three directions. The main body of the movable sliding table is aluminum profile, and the transmission method adopts a screw rod and a linear slide rail. The three-axis transmission modules are all equipped with protection mechanisms, and all three-axis are equipped with limit and zero return.

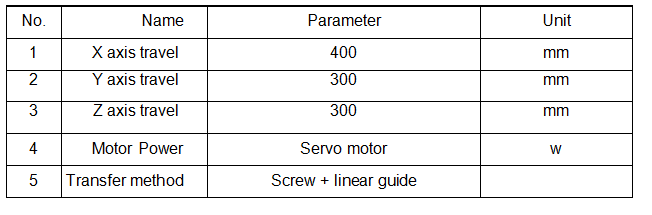

The main technical parameters

1.Q:What is the warranty of Robotic Laser Cladding Equipment Cnc Laser Hardening Machine?

   A:2 years.

2.Q:Are you a factory or trading company?

   A:Quesstt Laser is a factory for 22 years.Got import and export License.

3.Q:How about the quality?

   A:Technology is from Germany.High quality best price.

4.Q:What is your after-sale service?

   A:If needed,Questt Laser offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!

5.Q:How do i get technical support after purchasing?

   A:Questt Laser offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.

 6.Q:How can i get assurance of my Payment?

 A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
