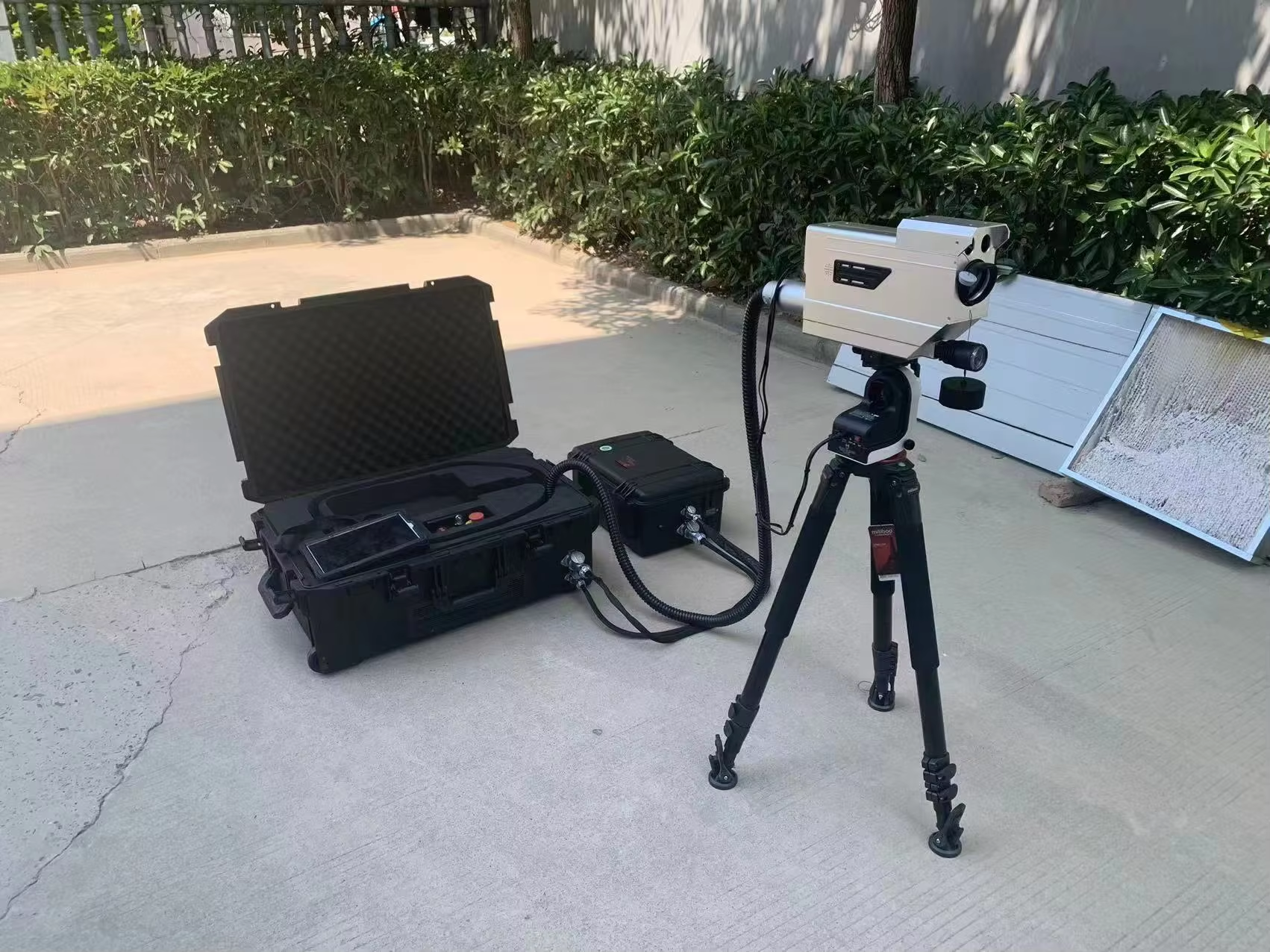

Portable laser Obstacle Remover For Trees Electric Power Grid Laser Obstacle Removal

Portable laser Obstacle Remover For Trees Electric Power Grid Laser Obstacle Removal

Product Introduction

-Portable laser Obstacle Remover For Trees Electric Power Grid Laser Obstacle Removal collimates the light from the fiber laser and can work effectively over long distances. -Complementary mobile power operation, portable trolley case design, convenient for outdoor work; -Complementary mobile power operation, portable trolley case design, convenient for outdoor work. -Adopts visual coaxial or green light-assisted aiming and is equipped with a high-precision motorized gimbal to quickly aim at the target; -Adopts visual coaxial or green light-assisted aiming. ·Independently designed operating system, customized customer logo, diversified operation functions; -Equipped with high power lens, it can produce light stably for a long time. -Can be customized according to the customer's requirements of large diameter lens, to achieve a longer distance, smaller spot needs.

Features

1.Automatic cutting function: can edit the cutting path and cutting speed, intelligent operation to remove foreign objects；

2.Electronic fence function: can edit the electronic fence area, when the laser moves to the fence can automatically turn off the light；

3.Cross-center calibration function: can quickly adjust the position of the cross-center, convenient and accurate operation；

4.Continuous power setting function: 10 laser output power can be selected, precision control of light；

5.PTZ speed gear setting function: 9 PTZ speed adjustable, precise targeting；

6.Video camera function: can monitor the operation process, visualization and safety；

7.Dumping protection function: when the equipment is dumped is automatically turn off the light；

8.Foreign body invasion alarm function: when the equipment in front of 10 meters in the presence of people and other dangerous items can automatically turn off the light；

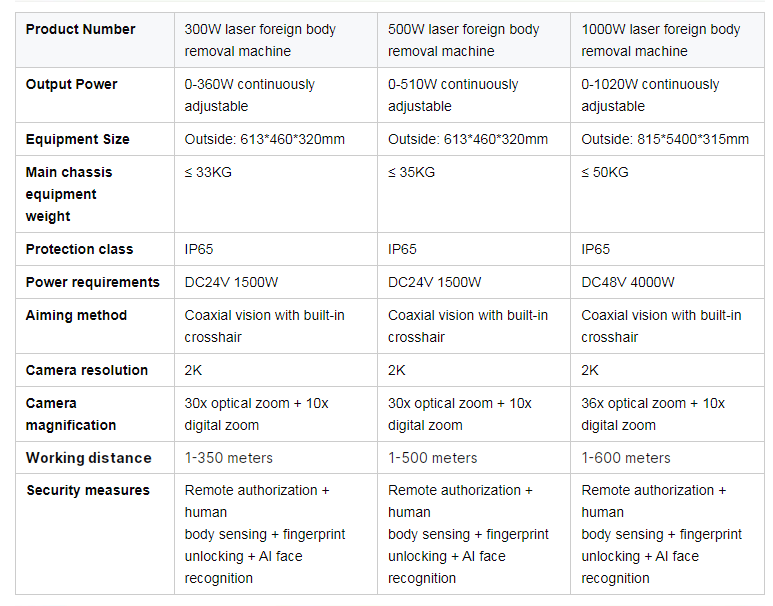

Parameters

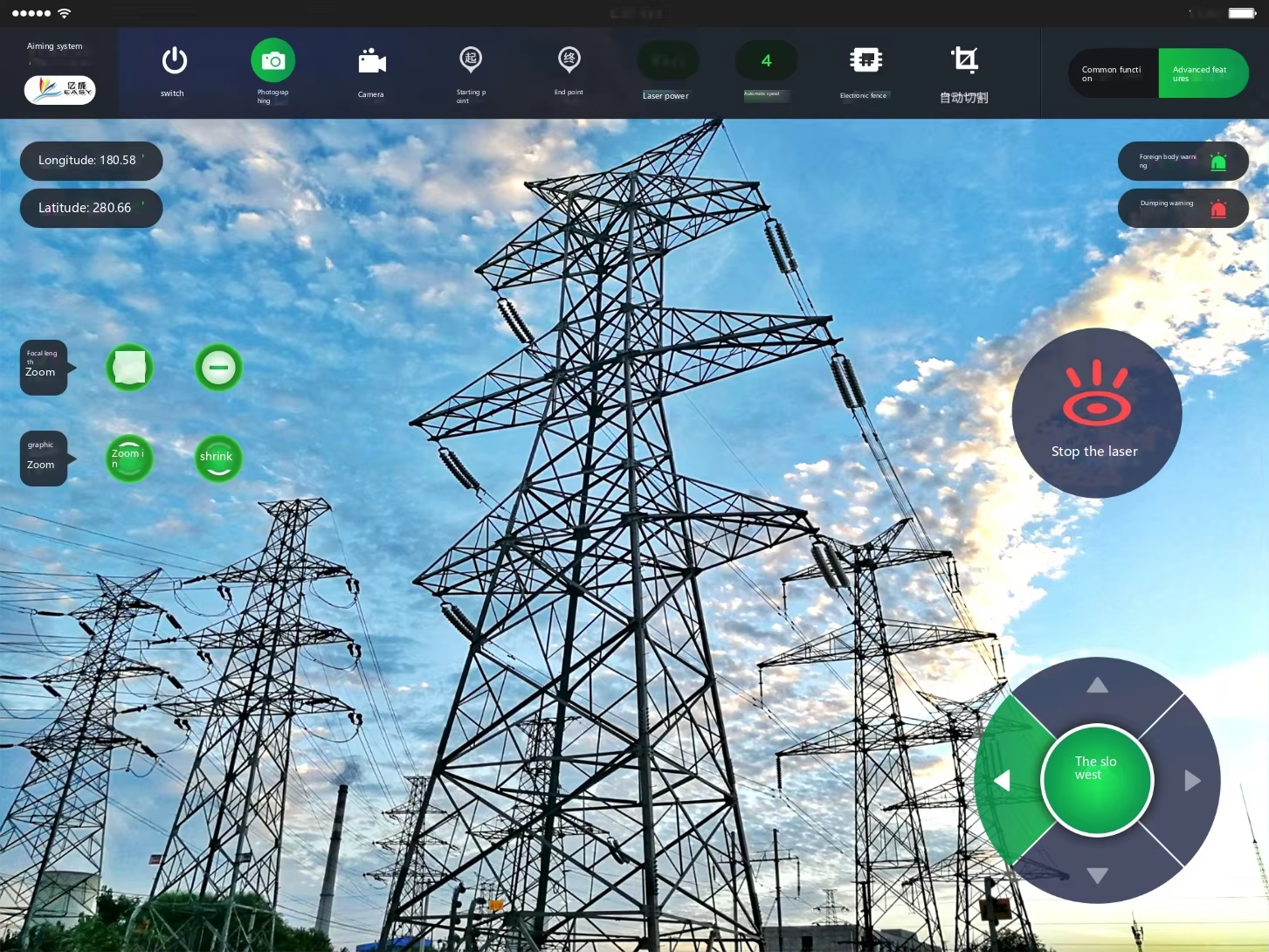

Software

Advanced software features (optional)

1. With remote control function: operators need to be authorized by remote personnel to carry out operations. 2. With laser ranging function: it can accurately display the distance between the device and the target on the operation panel. 3. With laser automatic zoom function: the laser spot size at different distances can be automatically adjusted according to different distance values.

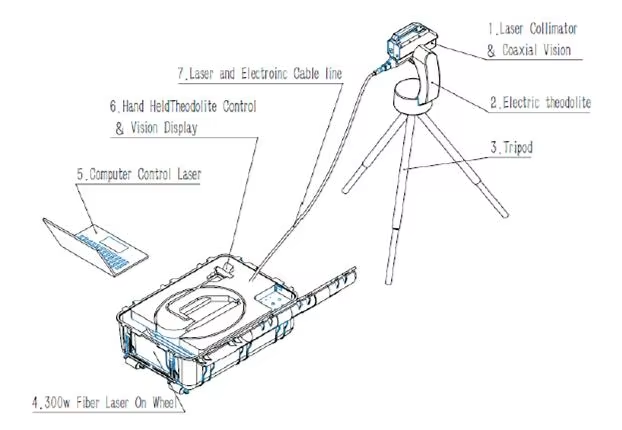

Configurations

l Laser machine (trolley case type)

l Tripod head

l Battery (with charger)

l Rangefinder

l 10-inch tablet

l Instruction manual

l Certificate of conformity,

Applications

Removal of non-metallic hanging objects (tarpaulins, plastic bags, kites, branches, bird nests, etc.) from transmission lines in the power industry and other industries that require remote obstacle removal.
