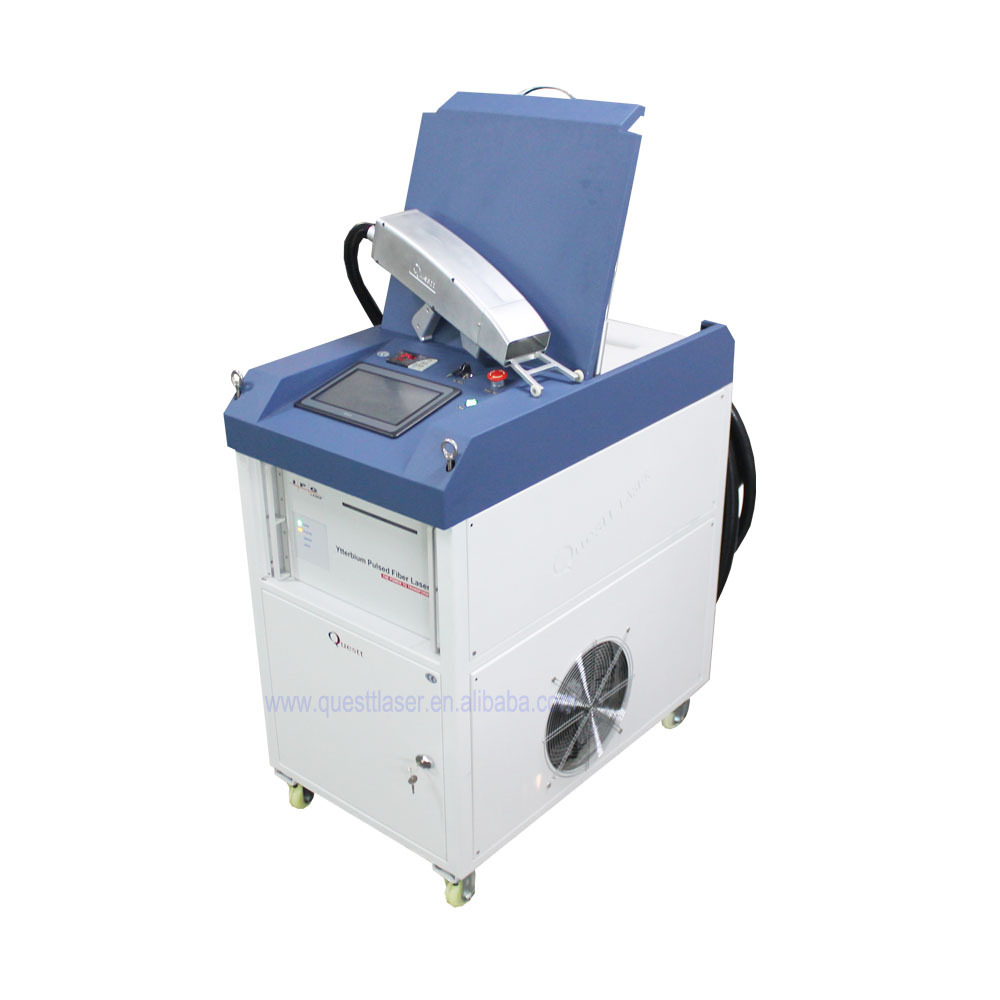

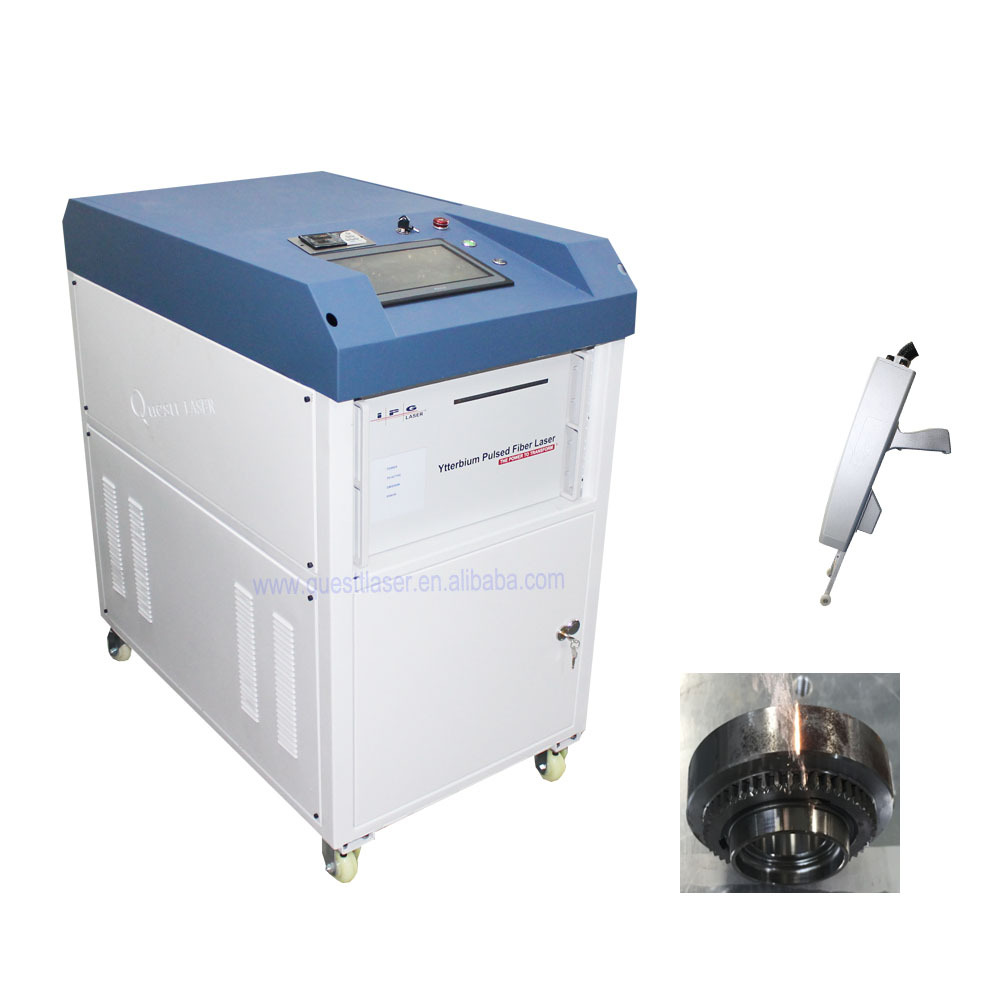

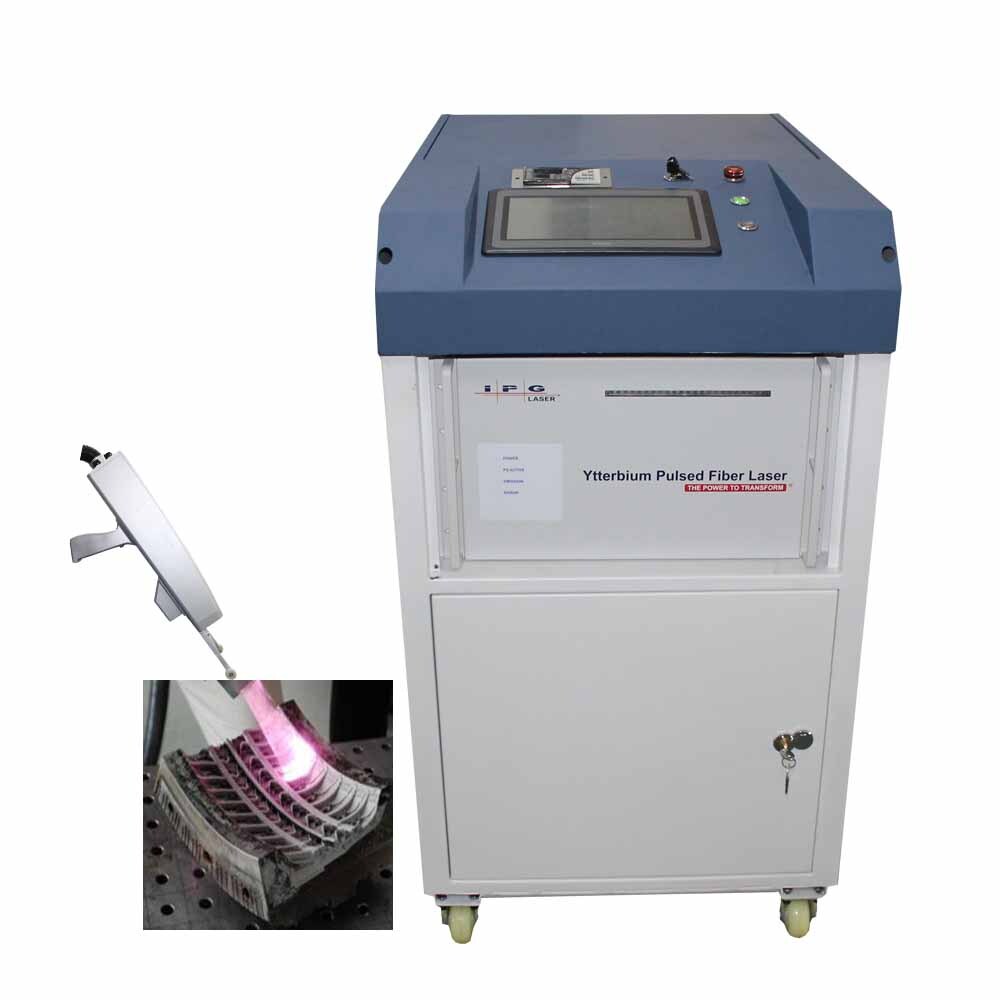

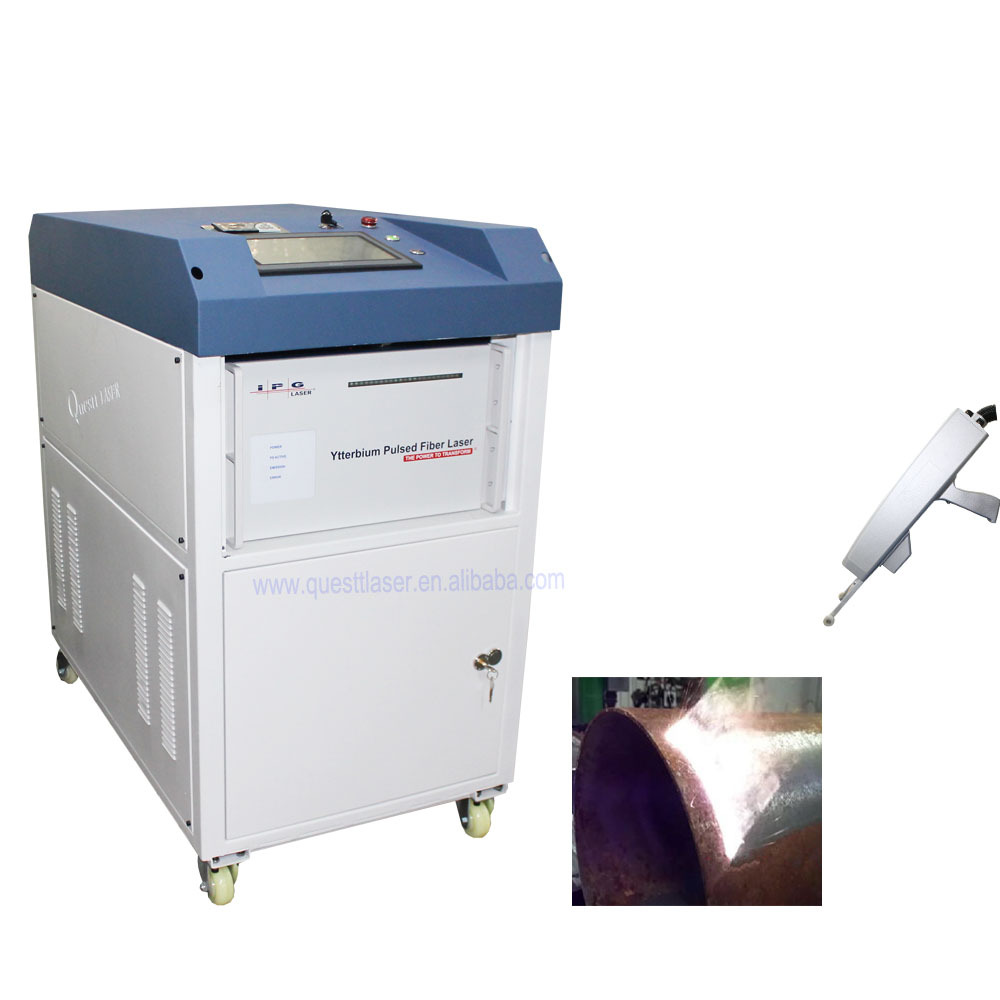

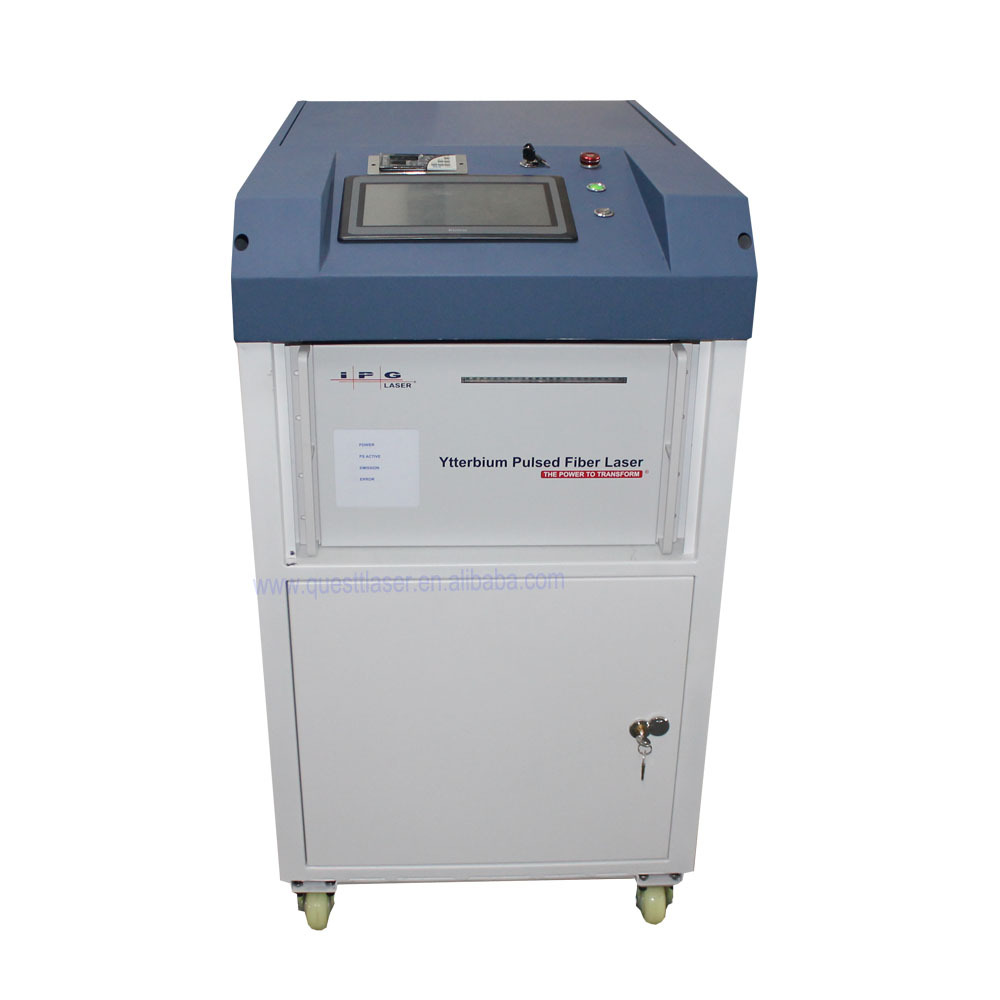

Motorised Laser Cleaning Workstation

Motorised Laser Cleaning Machine Workstation is a composite clean laser system.
The advantage of laser composite cleaning is that the continuous laser and pulsed laser are functionally composited at the same time to form a processing characteristic of 1+1>2. The principle is mainly through the semiconductor continuous laser as the heat conduction output, so that the attachment to be cleaned absorbs energy to generate vaporization and plasma cloud, and forms a thermal expansion pressure between the metal material and the attachment, reducing the bonding force between the two layers. When the pulsed laser outputs a high-energy pulsed laser beam, the generated vibration shock wave will cause the attachments with weak binding force to be directly separated from the metal surface, thereby realizing rapid laser cleaning.

1.Apply to the cleaning of thicker coating materials. Due to the large energy output of a single laser with multiple pulses, the high cost of high-power pulsed lasers limits the laser cleaning of thick coating materials, and the use of pulsed laser-semiconductor laser composite cleaning can quickly and effectively improve the cleaning quality, and the substrate is not easy Causes damage, so it is suitable for cleaning thicker coating materials.

2.Apply to laser cleaning of high reflective materials such as aluminum alloy. Single laser cleaning aluminum alloy and other surface oxide layers has problems such as high reflectivity. However, pulse laser-semiconductor laser combined cleaning, due to the thermal transmission of semiconductor laser, increases the energy absorption rate of the metal surface oxide layer, making the pulse laser The beam can peel off the oxide layer faster, thereby more effectively improving the removal efficiency.

Motorised Laser Cleaning Machine Workstation can be applied to the cleaning of thick coatings and strong adhesion attachments. It can remove resin, paint, oil, stains, dirt, rust, coatings, coatings and oxide layers on the surface of objects, and it is widely used in the industry, covering ships , Auto repair, rubber molds, high-end machine tools, track and environmental protection, etc.
