Introduction
The mold repairing Metal laser welding machine is a precise welding technology with concentrated high-heat energy of laser, which effectively processes the welding and repairing of some tiny damaged parts of the mold, such as: cracks, blisters, chipping, mold flashing, sealing edges, etc. of various molds. Repair of tiny parts. This Metal laser welding machine is specially designed for the electronics industry and jewelry welding design. It is improved by the introduction of advanced German technology. It can be used for gold and silver jewelry, electronic components, air welding, welding, etc.
Features
1)Specifically designed for mould industry, it has introduced German technology and adopted unique structure design, and is suitable for all kind of large, medium and small mould repair.
2)Adopt UK ceramic light-gathering cavity, it is anti-corrosion and heat-resistance, the service life is up to 8-10 years, and more than 8 million times life of Xenon lamp.
3)Using the World's most advanced automatic shading system, it eliminates the stimulation to the eyes in work.
4)The laser head can rotate 360 degrees, overall light path can rotate 360 degrees ,and it is more convenient for different objects position welding.
5)The workbench adopts electric hoist and fixes focus more quickly.
6)Parameter adjustment adopts intelligent remote control, the operation is simple and quick.
Technical Parameters
Model | ROBOT3005300 |
Max Output Power | 300W/500W |
Laser Wavelength | 1064nm |
Worktable Max weight | ≤200KG |
Laser Puse Width | 0.2～25 ms |
Laser Pulse Frequency | ≤50Hz |
Focus Spot | 0.1～0.3mm |
Red Light Spot | 0.2-3.0mm |
Power Supply | 220V±10%/50Hz or 380V±10%/50Hz |
Power Max | 6KW/8KW |
XYZ worktable | X=300mm,Y=200mm manual |
Laser Focus Distance | 80mm/100mm/120mm(Optional) |
Laser Cooling | Water Cooling |
CCD | CCD (rotate 360 Degree) |
Optical Magnification | 10* |
Wire Diameter | 0.1mm～0.8mm |
Machine Weight | 300kg |

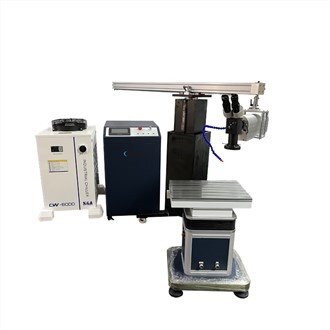

Machine details
Water chiller
Microscopes
Control panel
Lifting working table
Applications
Metal laser welding machine is applicable to metallic materials such as cold working high alloy steel, hot forging high alloy steel, nickel tool steel, high grade steel, copper alloy, beryllium steel, and high flexibility aluminum alloy. The remote controller or the touch operation panel can be used to select the laser output power, frequency, pulse width and other parameters. The moving speed of the workbench can be set to manipulate the workbench moving, so that the welding parameters match the welding requirements, and thus producing optimal effect of smooth welding joints and points.
