QUESTT
Mini Portable Gold Silver Jewelry YAG Laser Spot Welding Machine
Main features
1. Mini Portable Gold Silver Jewelry YAG Laser Spot Welding Machine adopted ergonomics design. It can better meet jewelry industry’s requirements on precision, beautiful, stable performance, long time and constant processing.It's strong
2. Big inner space, it is convenient for placing tools and fixtures.
3. Mini Portable Gold Silver Jewelry YAG Laser Spot Welding Machine is equipped with electric focusing mechanism, digital scale reading display, regulating switch for laser parameters, it
operates more smoothly.
4. Mini Portable Gold Silver Jewelry YAG Laser Spot Welding Machine is easy to replace dust screen, clean working area and recycle welding slag.
5. With the LED lamp which can be highlighted and 10x microscope, the observation on welding position is much clearer.
6.More precise light spot, it meets the requirement of precision welding.
2. Big inner space, it is convenient for placing tools and fixtures.
3. Mini Portable Gold Silver Jewelry YAG Laser Spot Welding Machine is equipped with electric focusing mechanism, digital scale reading display, regulating switch for laser parameters, it
operates more smoothly.
4. Mini Portable Gold Silver Jewelry YAG Laser Spot Welding Machine is easy to replace dust screen, clean working area and recycle welding slag.
5. With the LED lamp which can be highlighted and 10x microscope, the observation on welding position is much clearer.
6.More precise light spot, it meets the requirement of precision welding.

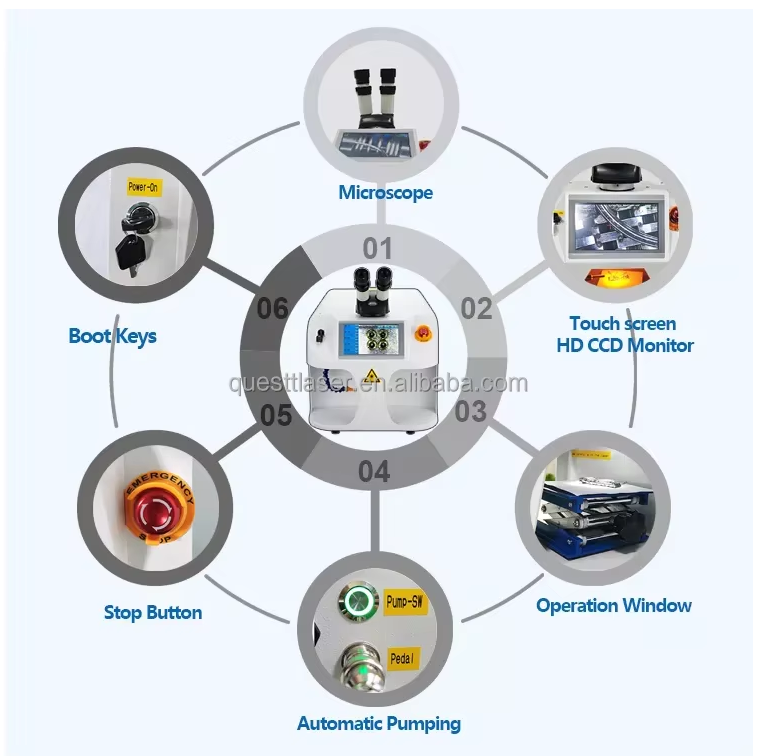

Jewelry laser welder details

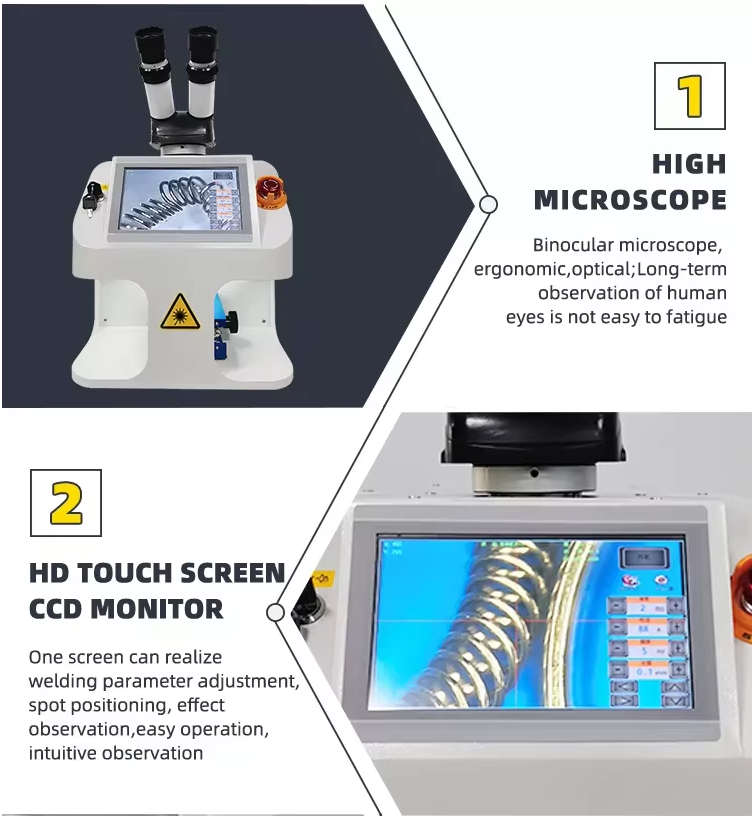

1.High microscope
Binocular microscope,ergonomic,optical;Long-term observation of human eyes is not easy to fatigue
2.HD TOUCH SCREENCCD MONITOR
One screen can realize welding parameter adjustment spot positioning, effectobservation,easy operation,intuitive observation

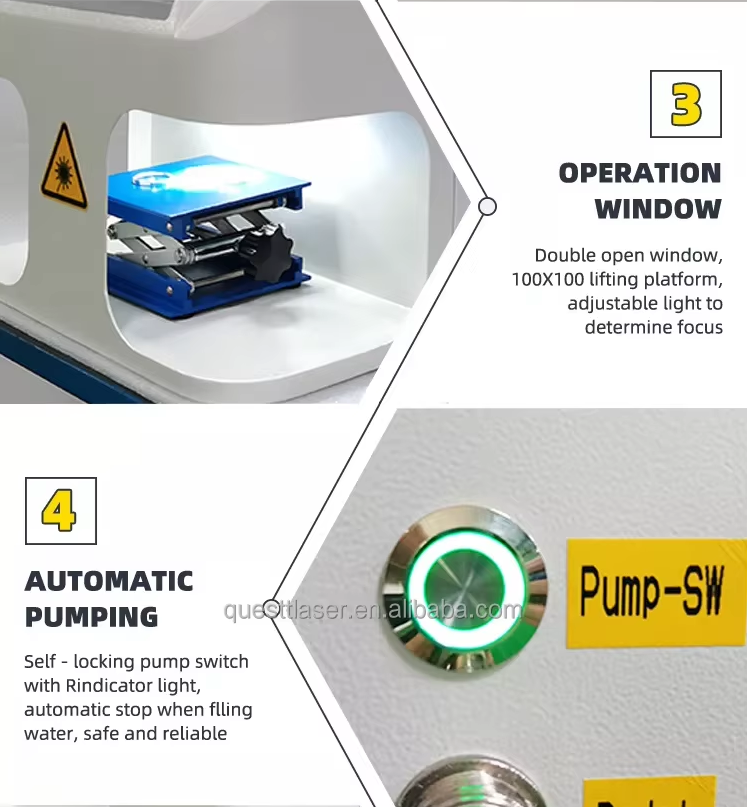

3.OPERATION WINDOW
Double open window,100X100 lifting platform,adjustable light to determine focus
4.AUTOMATIC PUMPING Self - locking pump switch with Rindicator light,automatic stop when flling water, safe and reliable

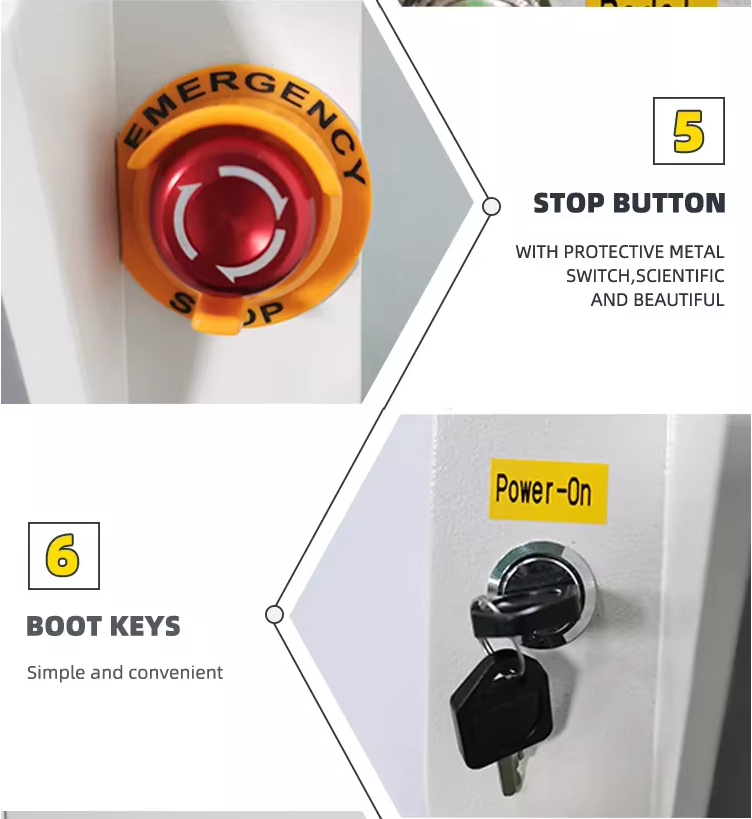

5.Emergency stop button
With protective metal switch,sientific and beautiful,one button to avoid accidient
6.Boot key
Simple and convinient,when turn on the key switch, the main power is on.

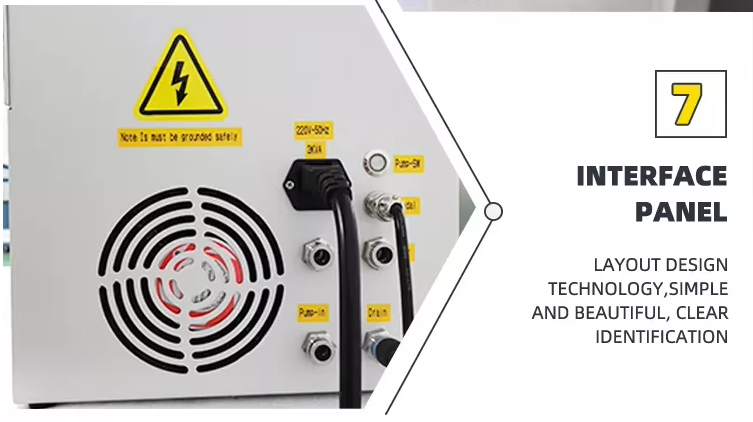

7.Interface panel
Layout design technology,simple and beautiful,clear identification
Technical parameter
| Item | 60w jewelry laser welding machine |
| Laser wavelength | 1064 nm |
| MAX laser power | 60W |
| Spot diameter adjusting scope | ±3.0mm |
| Energy per pulse | 60J |
| Laser frequency | 1.0~10.0Hz Continuously Adjustable |
| Input voltage | Single phase AC 220v 50Hz |
| Display touch screen mouting dimensions | 137*190 mm |

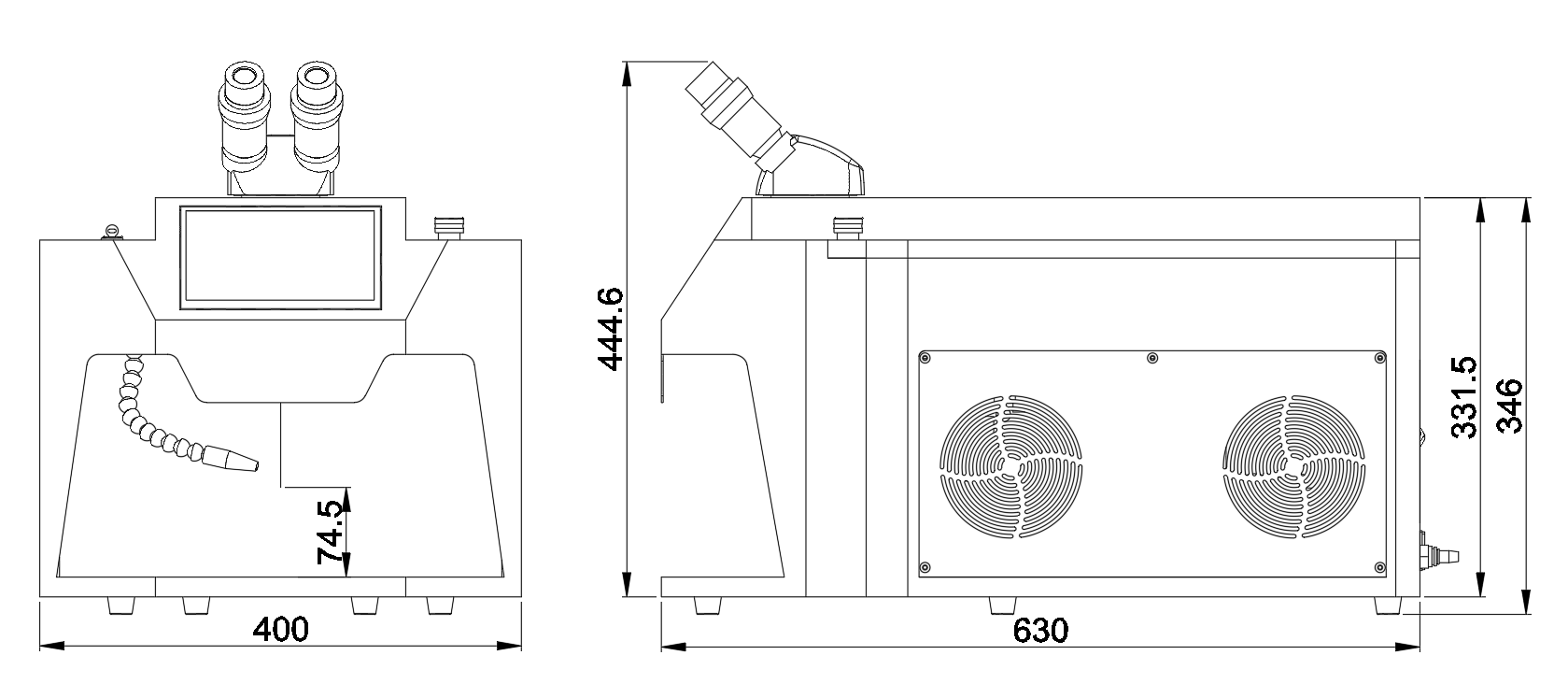

| Machine dimensions | L650*W400*H450 mm |
| Cooling system | Built-in water-cooled |
ApplicationsWidely applicable to all kinds of micro parts of precision welding, such as: Jewelry, electronics, Dental,watches.
- Power:
- 60w
- Condition:
- New
- Function:
- Metal silver gold welding
- Warranty:
- 1 year
- Application:
- Machinery repair shop silver gold metal repair welding
- Certificate:
- CE ISO
