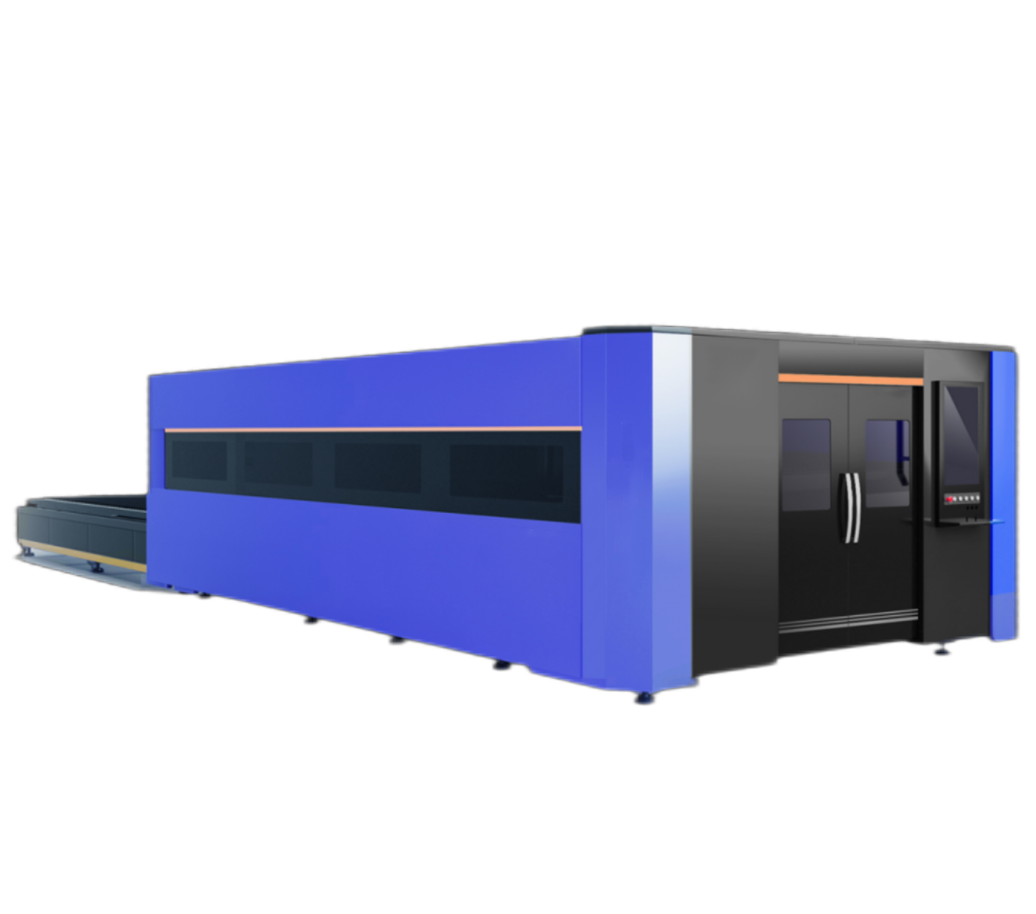

High Power Fully Enclosed Cover And Exchange Table Fiber Laser Cutting Machine

High Power Fully Enclosed Cover And Exchange Table Fiber Laser Cutting Machine

Overview

High Power Fully Enclosed Cover And Exchange Table Fiber Laser Cutting Machine has high quality beam, high reliability, good optical mode, high top power, smooth incision, good perpendicularity, High Power Fully Enclosed Cover And Exchange Table Fiber Laser Cutting Machine is a special cutting machine, High Power Fully Enclosed Cover And Exchange Table Fiber Laser Cutting Machine is suitable for stainless steel, carbon steel, Copper, Aluminum, Mo to cut and punch, the cutting speed and incision are both high level, CYPCUT program can process any graphics and text, running stably, good processing quality, high efficiency, good precision, easy operation, convenient maintenance.

Specification

Detailed discription of all parts:

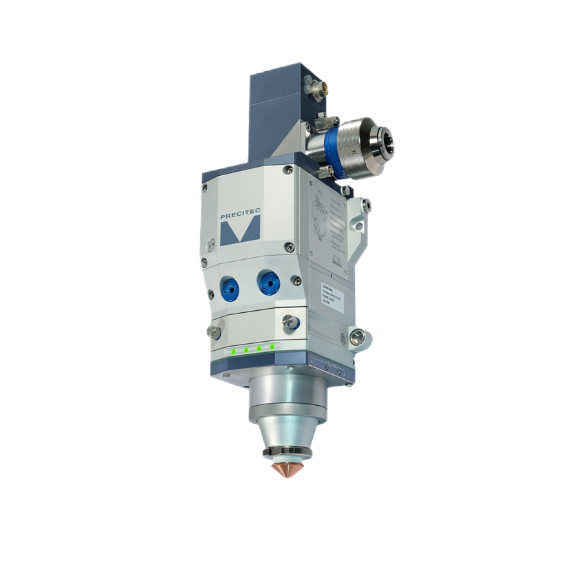

PRECITEC Auto Focus Laser Cutting Head

1000-times reliability in use: the ProCutter 2.0 impresses worldwide with its high performance and automation. Its reliability and load capacity in flatbed and tube cutting systems has been perfected - up to a maximum laser power of 30 kW.

The software automatically adjusts the focusing lens to realize automatic
perforating and cutting plates of
different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger Adjustment Range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

Long Service Life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

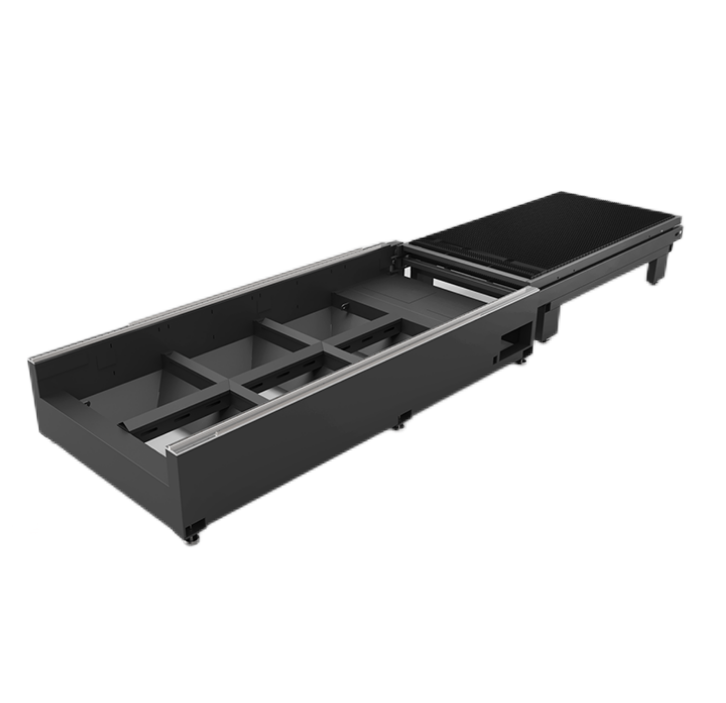

Super heavy welded bed

The industrial bed structure is adopted. The bed and gantry are quenched at high temperature and tempered to relieve stress.

The rack and guide rail mounting plane and mounting holes are formed at one time by a large-scale high-precision machining center.

The accuracy is required to be within 3um, which ensures the strength of the machine tool. and geometric accuracy life.

It is welded by heavy steel plate, the current mainstream bed structure, high stability;

Effect force annealing treatment, high mechanical strength, not easy to deform;

Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;

The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.

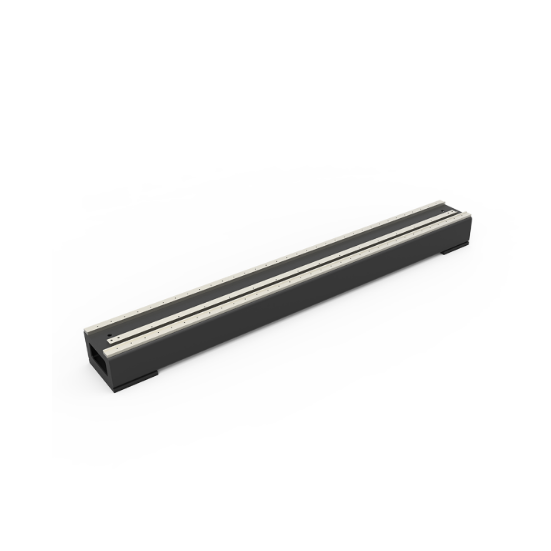

Crossbeam

The integral steel mold is die-casting, and after artificial aging and solution treatment, it is finished, so that the integrity, rigidity and surface quality of the beam are very good. At the same time, it has good toughness and ductility. It is convenient for high-speed movement during processing.

At the same time, it has the characteristics of high flexibility, and can realize high-speed cutting of various types of drawings under the condition of meeting the accuracy. Let the equipment have higher operating speed and higher precision.

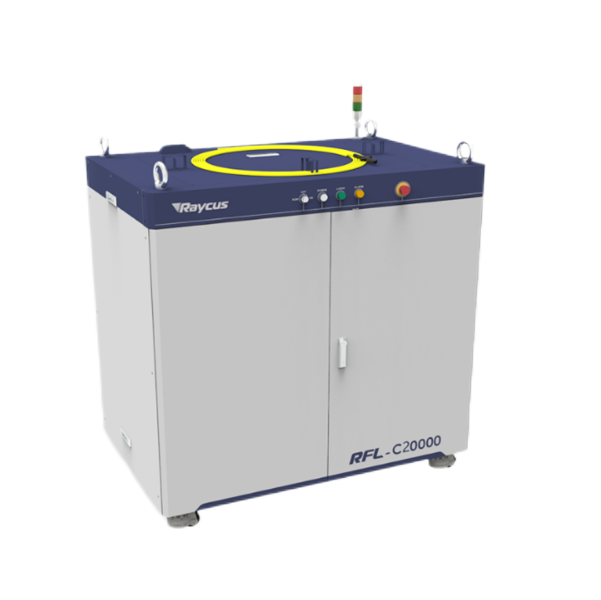

20000W Raycus Fiber Lasers Source

World Famous Brand

TXT laser cutting machine TXT-GH-EX series high power fiber laser of Raycus. Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 40mm.

Long Service Life

The world leading Raycus laser has stable performance, the service life can reach 100000 hours, and the overall quality of the equipment can be guaranteed safely.

Stable Cutting Performance

Fiber laser source can produce excellent beam quality, finer cutting lines, higher working efficiency and better machining quality. Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation.

Control System Display

FSCUT8000 is EtherCAT bus system designed for ultra high power fiber laser above 8KW, featured by out of box service, easy to install and adjust, full solution functions. It supports customization, automation and informatization solutions, is the leading edge EtherCAT laser cutting control system on the market.

Multiple piercing solutions for metal sheet of different thickness; piercing slags removal; vibration suppression; close-loop gas control; seperate layer technique for large, medium and small contour cutting, all to expand your machine production capability.

Advantage

1) High precision: precise cutting for various precision parts, arts and crafts.
2) Fast speed: 100 times higher than linear cutting
3) Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process
4) High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch
5) Low use cost: only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour)
6) Low follow-up maintenance cost: only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch
7) Steady performance: as a mature laser apparatus, the YAG laser cutting machine is suitable for most metal manufacturing and processing industry
8) Steel plate Quality cutting thickness: 0.1mm-12mm

Applications

Kitchenware, Saw Blade, Mechanical Parts, Electrical Equipment Components, Electric Cabinet, Textile Machinery, Billboard, Automobile, Cooking Utensil, Hardware, Crafts, Spectacle Frame, Earrings And Rings, Advertising Words And Letters, Adornment, Subway Parts, Household Appliances, Electrical Appliance, Precision Components
Tools, Gifts and Crafts, Ultra-fine Contours, Filigree Structural Components, Gearing Components
Reamer, Mobile Phone Housing, Aviation

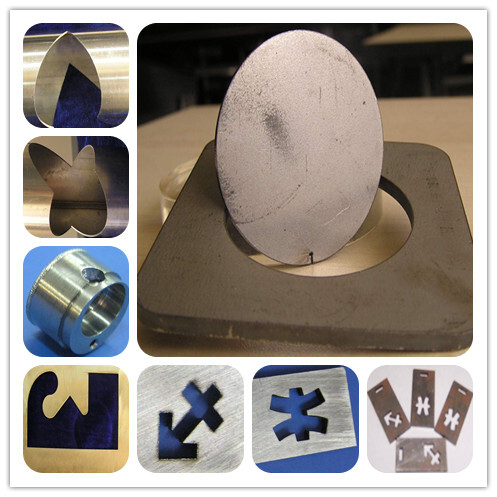

Cutting Samples
