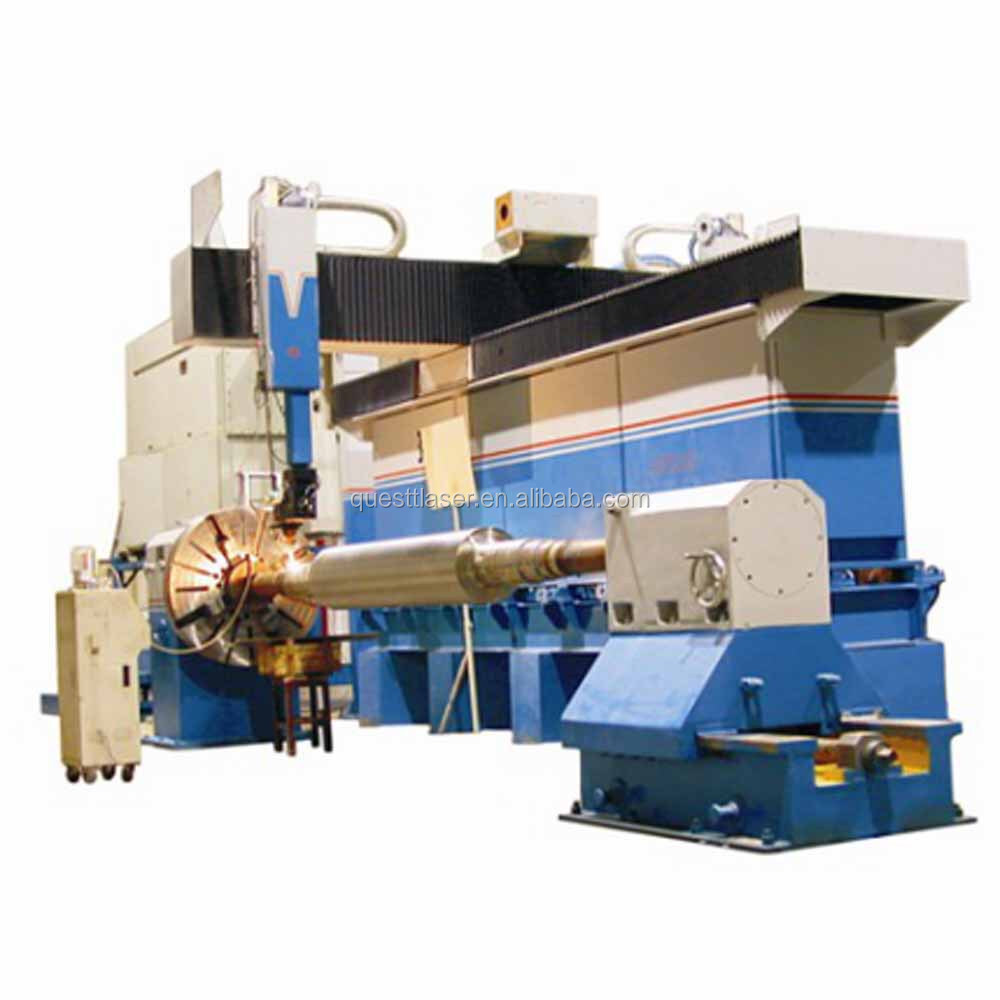

Laser Shocking Peening Lazer Hardening Machine for Surface Treatmenet

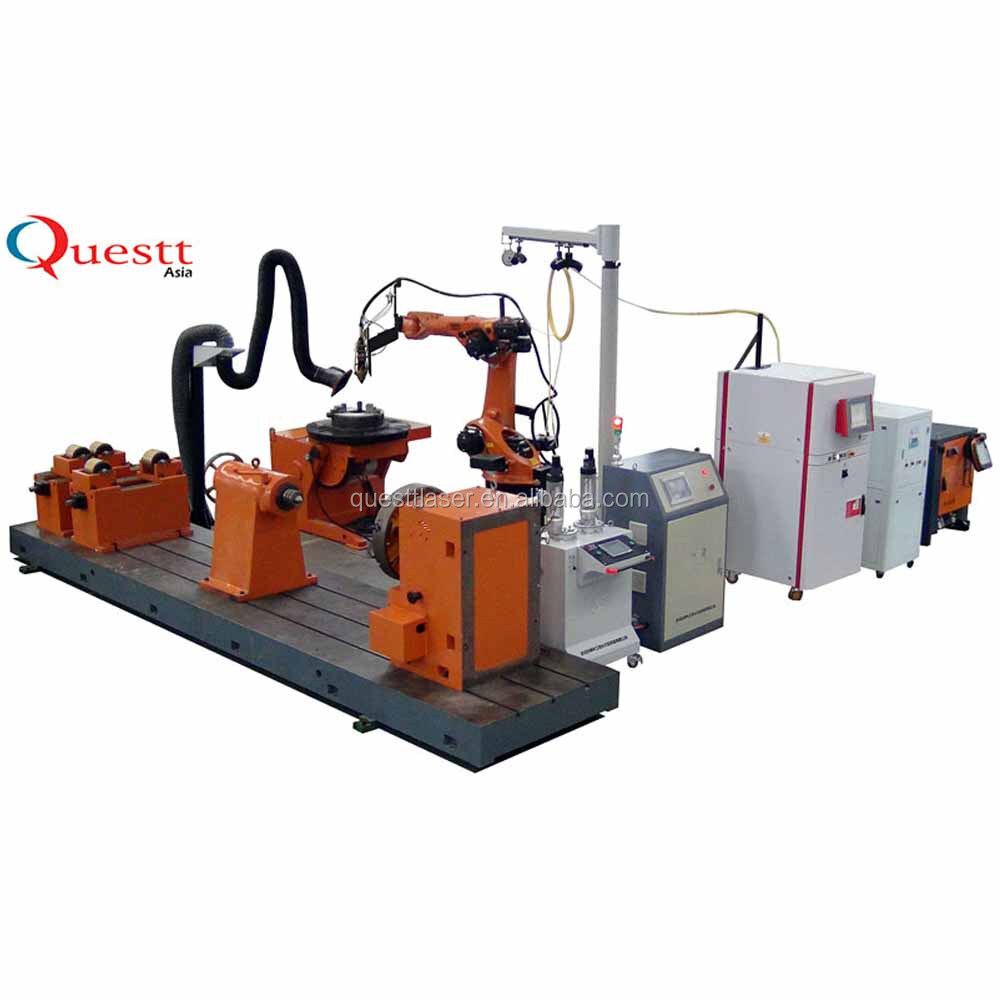

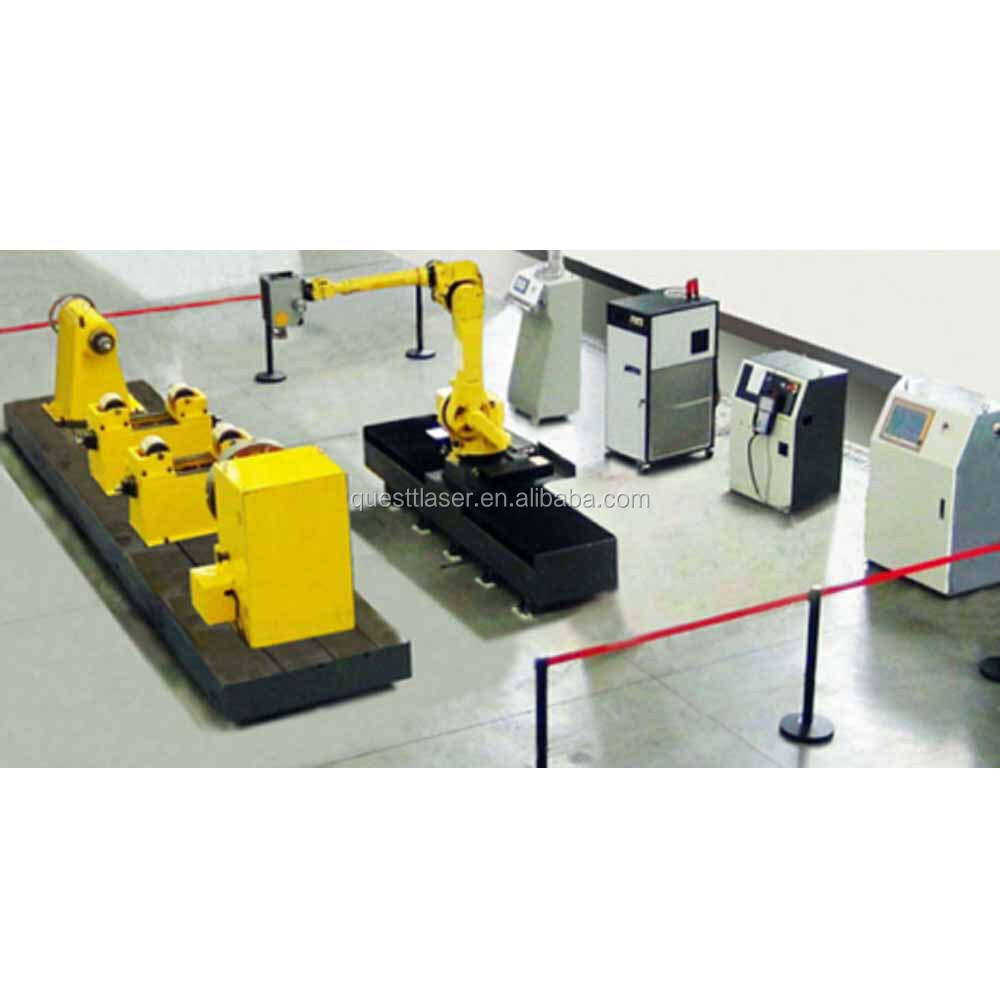

Laser Shocking Peening Lazer Hardening Machine for Surface Treatmenet is a high power laser clading machine system, which adopta the latest diode laser, Kuka 6 axis robot and Siemens control system.

Laser Shocking Peening Lazer Hardening Machine for Surface Treatmenet is a flexible system with multi-axis, transimiting via a fiber cable to meet the metal surface laser hardening / normalizing / tempering/laser alloying and laser cladding / re-manufacturing and other advanced strong processing requirements.

Function:

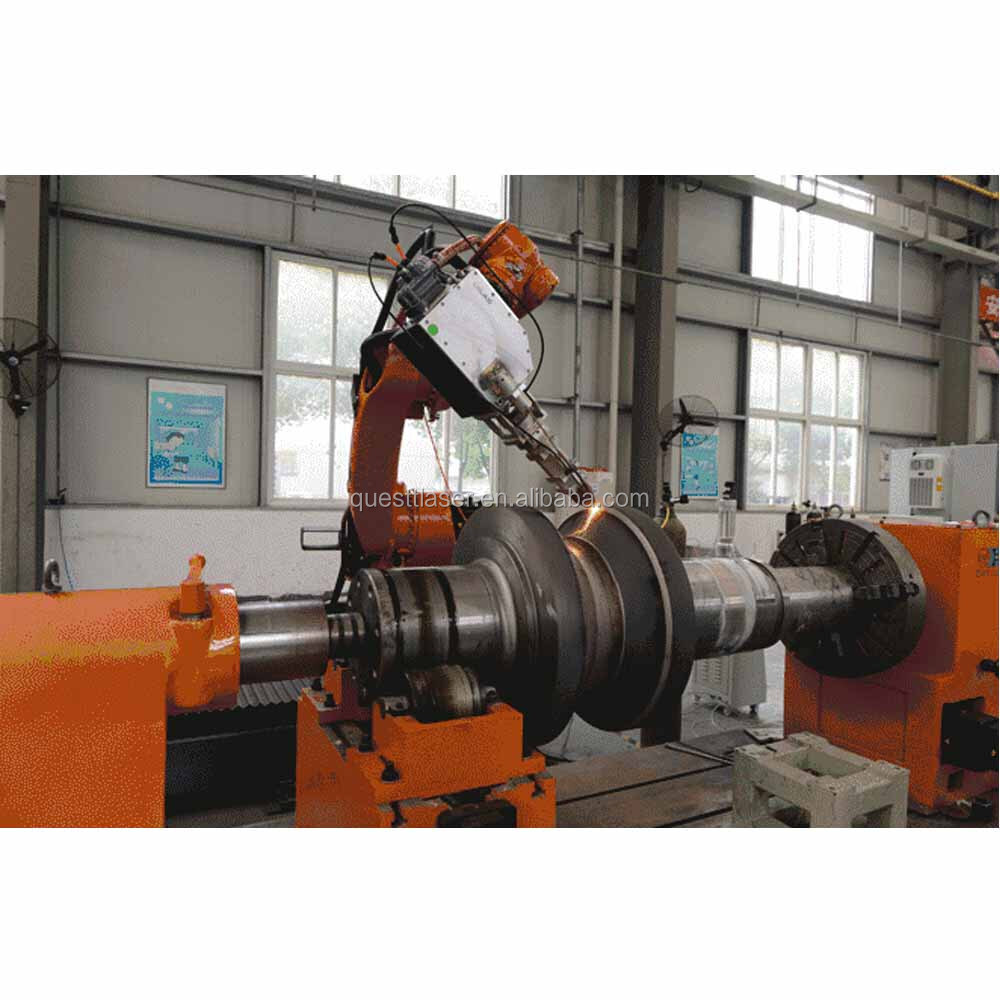

Laser Shocking Peening Lazer Hardening Machine for Surface Treatmenet is mainly used for laser processing (laser cladding ) on the surface of shafts, gears, discs, special-shaped parts, etc., to increase the hardness or corrosion resistance of the surface. The laser processing organization has metallurgical combination, small deformation, low interface dilution material, fine microstructure of the microstructure, and high surface fatigue life.

Processing capacity:Fast laser cladding, normal laser cladding, laser hardening, inner hole laser cladding

2. Features

        1.Imported Laserline laser device, high quality and stability, continuous operation in 48 hours;

2.The quality of laser working lens, high uniformity of spot, good thermal stability, long focal length of lens, small lens pollution, long service life and low damage rate;

3. Independent research and development of semiconductor laser control system with high integration, easy operation, space saving and convenient maintenance;

4.Germany KUKA six-axis robot control robot slide rail and spindle realize 6+2 axis linkage, high precision machining and wide adaptability;

5.Based on Siemens self-developed operation platform based on years of experience, the system integration operation is simple and one-button control, the machine tool adapts to a wide range and the equipment covers a small area;

Specifications

Laser: diode Fiber Laser
Output power range: 3-15kW
Power Stability: ± 2%
Electro-optical conversion rate: up to 50%
Laser wavelength: 900-1070nm
Wavelength Output: CW
Input voltage: 340-420V three-phase five-wire @ 50-60Hz
Fiber core diameter: 0.6,0.8,1 mm with BEAM
Time division multiplexing optical fiber function SWITCH

Applications

Metallurgy, mold, machinery manufacturing, petrochemical, light industry, energy, transportation and other industries.

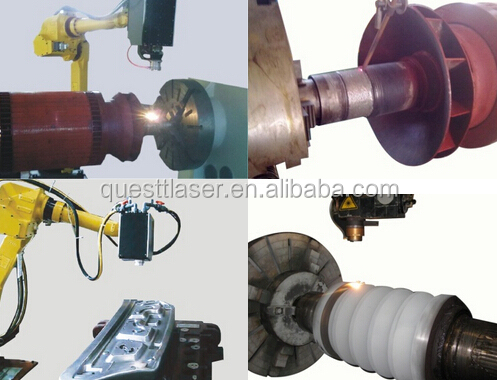

Typical applications: automotive mold, mining machinery, coal machinery, petrochemical machinery, generator sets, rolling mill machinery and other large mechanical parts.

Optical head specifications and characteristics

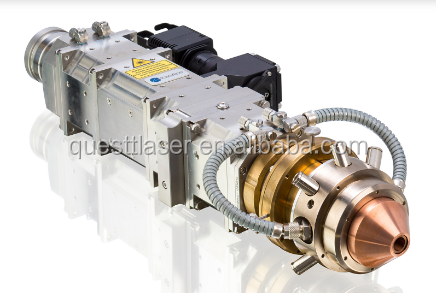

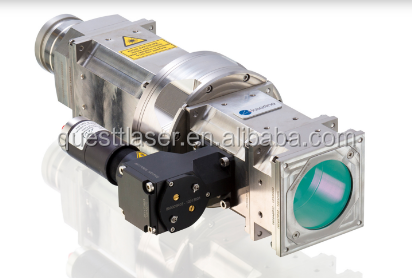

OD processing head: According to different process requirements, it adopts the German laserline imported OTS-5 optical head, fast cladding and traditional laser cladding using a circular spot laser head, laser hardening and wide cladding using a rectangular spot laser head, spot size: Ø1 .6-2mm (fast cladding), Ø3.5-4mm (normal cladding) and 17mm (wide cladding and hardening) total 3 pcs, in addition, equipped with a special ID cladding processing head. The following picture shows laserline imported OTS-5 optical laser head, for reference only, subject to delivery:

Horizontal rotary table and 2D Tilt Jig
