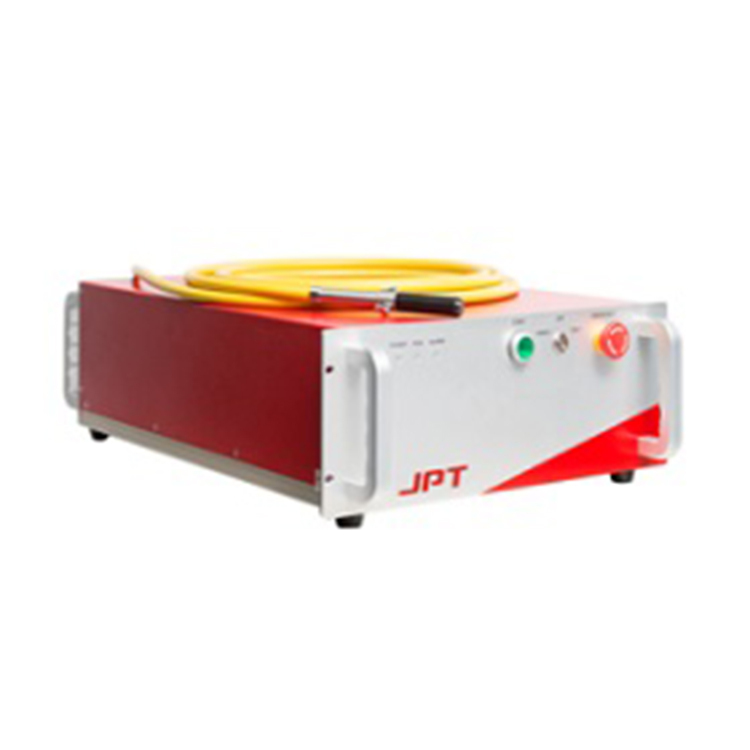

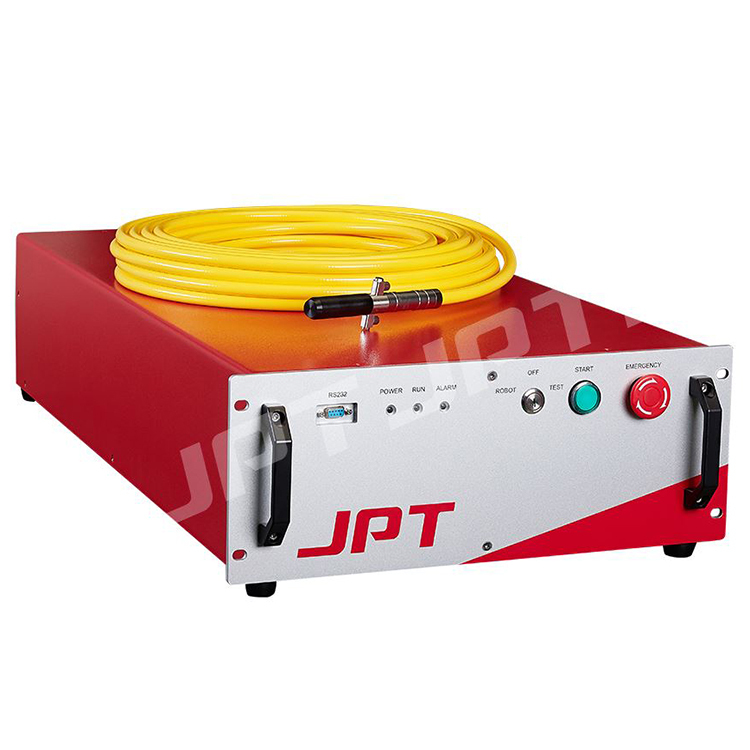

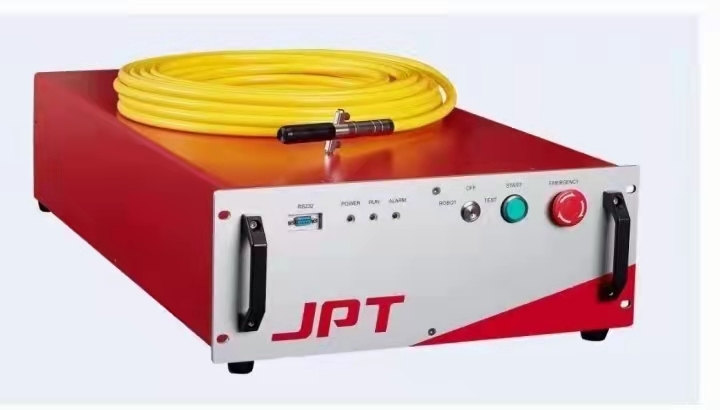

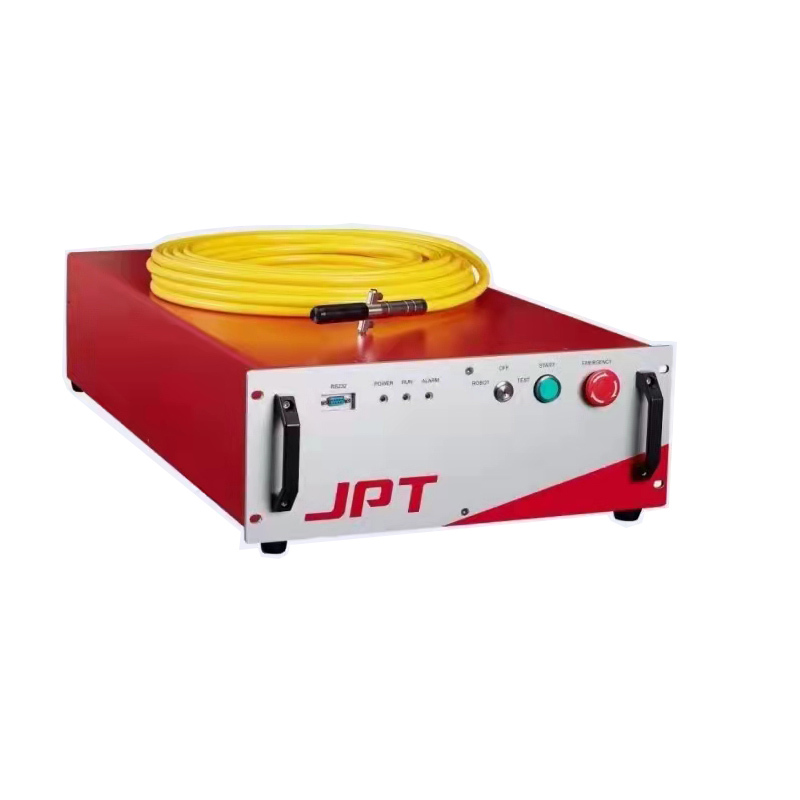

JPT 3000W Continuous Pulse Laser Source New Condition

reviews

Model Number

Product Tag:

laser spare parts

JPT 3000W Continuous Pulse Laser Source New Condition

1000W,1500W,2000W JPT cw laser source

JPTCW series laser (1000/1500/2000W) is an strong optimized combination of optical, mechanical, electrical and soft.

Features

JPT 3000W Continuous Pulse Laser Source New Condition Features

---Through the control interface and Jeep standard software, the running status of the laser can be monitored and alarmed in real time, and the running data can be collected and recorded. The laser adopts water-cooled heat dissipation and cabinet design.

---It has many advantages such as high electro-optic conversion efficiency, low energy consumption, maintenance-free adjustment, flexible fiber optic conductive output, and easy handling and lifting.
---JPT 3000W Continuous Pulse Laser Source New Condition is an ideal light source for industrial laser cutting, welding and other applications.

Product Paramenters

Nominal Average Output Power	1000w	1500w	2000w
Beam parameter Product	<0.45mm×mrad	<1.5mm×mrad	<1.5mm×mrad
Central wavelength	1080nm	1080nm	1080nm
Spectral width@3db	<6nm	<6nm	<6nm
Armored Cable Length	15m	20m	20m
Cooling Method	Water cooled(Purified Water)
Operating Voltage	Single-phase 220(AC)±10%	Single-phase 220(AC)±10%	Three-phase 380(AC)±10%
Maximum Power Consumption	3300w	5000w	7000w
Switch on/off time	20us	20us	20us
Maximum modulation frequency	20KHZ	20KHZ	20KHZ
Operation Temporature	23-26℃	23-26℃	23-26℃
Storage temperature range	-10-60℃	-20-50℃	-20-50℃
N.G.	60KG	90KG	110KG
SIZE	760483196mm	864483241	864483267

Our factory

FAQ

1.Q:What is the warranty of JPT 3000W Continuous Pulse Laser Source New Condition ?

A:2 years.

2.Q:Are you a factory or trading company?

A:Quesstt Laser is a factory for 22 years.Got import and export License.

3.Q:How about the quality?

A:Technology is from Germany.High quality best price.

Place of Origin:: China

Warranty:: 2 years

After-sales Service Provided:: Video technical support, Online support

Spare Parts Type:: laser source

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: New Product 2022

Key Selling Points:: High-accuracy

Showroom Location:: Egypt, Turkey, Italy, Russia

Applicable Industries:: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Other

Weight (KG):: 52 KG

Product name:: JPT CW Series

Laser Type:: Fiber

Delivery Cable Length:: 3m

Pulse Repetition Rate Range:: 1-4000 KHZ

Pulse Width:: 2-500ns

output Power Instability:: <5

Cooling Method:: Air-cooled

Power supply current requirement:: >6>7>8>9

Polarization:: Random

Central Wavelength:: 1064nm
