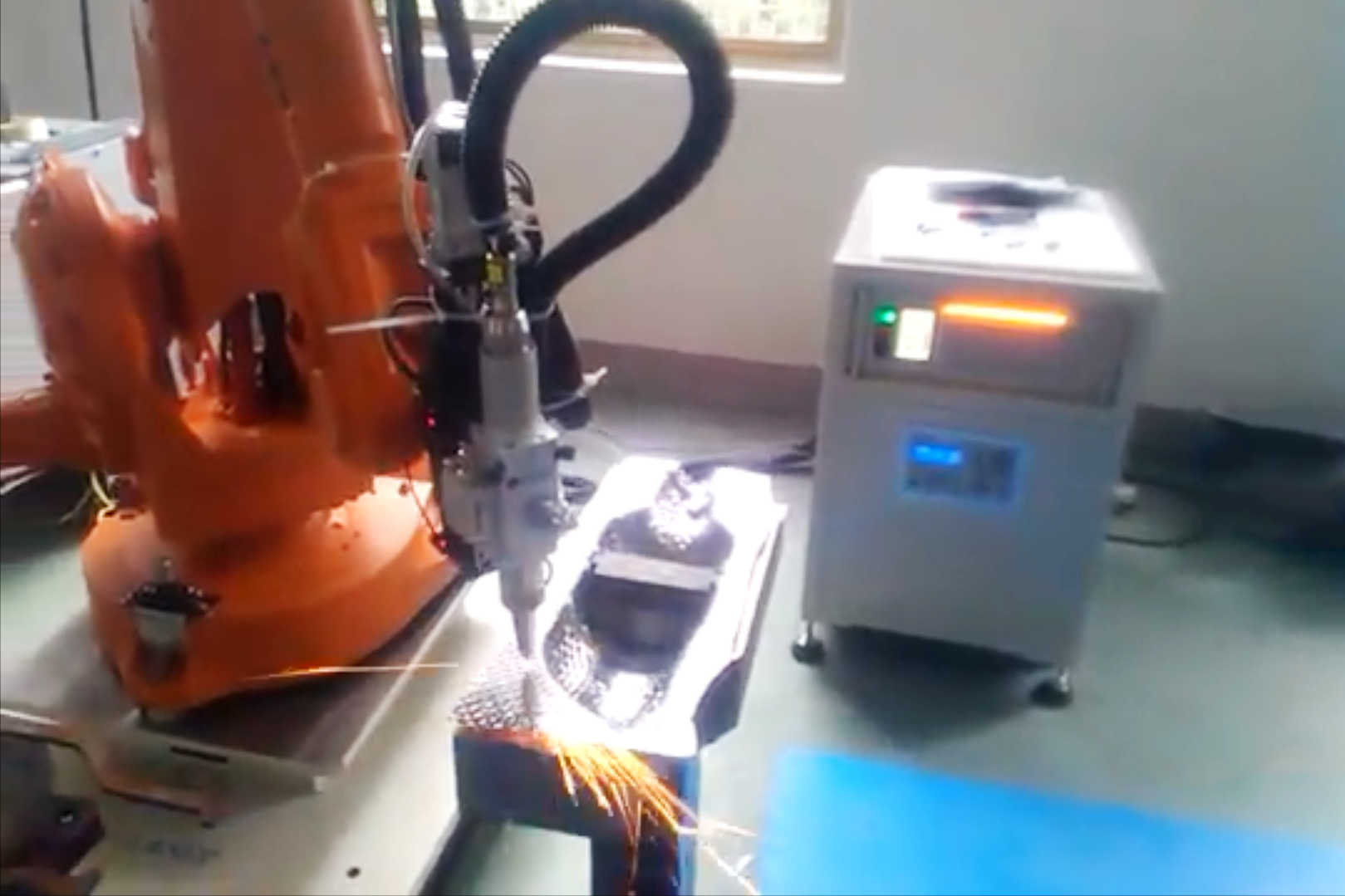

Automation Lazer Cutter for Helmet 2000W 3000W 6 Axis Robot fiber laser cutting machine
Introduction:
Automation Lazer Cutter for Helmet 2000W 3000W 6 Axis Robot fiber laser cutting machine is instead of the traditional way of processing, reducing the investment mold, reducing the time cost of the parts suppliered in the development cycle, improving processing efficiency and cutting the workpiece accuracy.
Benefits of Laser Cutting Automation for Helm 2000W 3000W 6 Axis Robotic Fiber Laser Cutting Machine:
1) Represents the most advanced laser cutting patterns;
2) Professional laser cutting control system and computer operation guarantee cutting quality and make cutting work easier;
3) The six-axis robot can perform 3D cutting, is easy to operate and highly intelligent, ensuring high precision and high reliability of high-speed equipment;
4) The imported laser cutting head is responsive and precise, and effectively cooperates with the robot to ensure the cutting focus position and stable cutting quality;
5) The laser cutting head can withstand a gas pressure of 1.0Mpa, improving the cutting ability of steel and other materials.
Specification:
|
Model |
QA-RLC3000 |
|
Laser |
fiber laser |
|
laser ouput |
CW |
|
laser wave length |
1070 nm |
|
Beam quality |
2 mm*mrad |
|
diameter of fiber |
50-100um |
|
Output Power |
3000 W |
|
Power Stability |
±2% |
|
Cooling |
Water cooled |
|
Robot |
6 axis |
|
Max Load |
18 Kg |
|
Average Load |
5 Kg |
|
Axis |
6 |
|
Position Precision |
±0.025mm |
|
Max arm Length |
1440mm |
|
Protect Grade |
IP54 |
|
Arm Weight |
225kg |
|
Assemble |
Floor |
Materials:
For stainless steel, carbon steel, silicon steel, titanium and other materials.
Main configuration list:
|
Name |
Unit |
Quantity |
Brand |
Notes |
|
Laser source |
set |
2 |
Raycus |
3KW |
|
Cutting Head |
set |
2 |
WSX |
|
|
Robot arm |
set |
2 |
Chinese |
IRB1410 6 axis |
|
Water chiller |
set |
2 |
Hanli |
|
|
Control system |
set |
2 |
Questt |
|
|
Vacuum suction |
set |
2 |
Questt |
|
FAQ
1. How can I place an order?
You can contact any of our sales person for an order. Please provide the details of
your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.
2. When can I get the price?
Usually we quote within 24 hours after we get your inquiry.
3. Can you do the design for us?
Yes. We have a professional team having rich experience in gift box design and manufacturing.
Just tell us your ideas and we will help to carry out your ideas into perfect boxes.
4. How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready
for delivery in 1-3 days. The samples will be sent to you via express and arrive in 3-5 days.
5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.
Alway 25-28days based on general order .
6. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient
or cost effective for you.
- Place of Origin:
- Hubei, China
- Brand Name:
- QUESTT
- Certificate:
- CE
- Service:
- Online
- OEM:
- OK
- Function:
- painting transporting welding cutting
- Armlength:
- 900mm
- Payload:
- 5kgs
- quality:
- best
- axis:
- 6 axis
- keyword:
- Robotic Arm
