Introduction

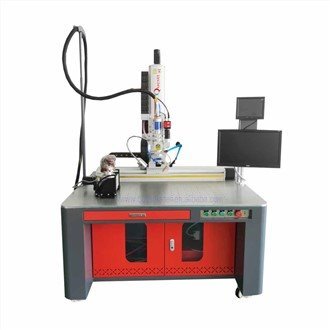

Automation Fiber Laser Welding Machine adopts continuous fiber laser, and through digital control of laser pulse width, energy, repetition frequency and other parameters, the workpiece is melted to form a specific molten pool, so as to realize the laser welding of the processed workpiece.
Features
1.Latest generation of fiber laser, self-developed wobble/common welding gun with safety sensing function and adjustable weld seam width;
2.Easy welding of large objects over long distances, and hard-to-reach places;
3.High strength and fine weld seam, no need for polishing, no consumables, no deformation;
4.3-10 times the speed of conventional argon arc welding plasma welding;
5.Power consumption is 10-20% less than traditional process, save 2-3 labor costs;
6.Easy operation, long service life.
Advantages
1. Precise positioning
Optical fiber laser welding machine is equipped with CCD camera monitoring system, which is convenient to observe, and can precisely locate by spot in micro-welding.
2. Uniform weld spot
The spot energy distribution of optical fiber laser welding machine is uniform, and it has the best spot needed for welding characteristics.
3. Suitable for all kinds of weld screams
Fiber laser welding machine adapts to all kinds of complex welds, spot welding of various devices, and welding seams of thin plates within 1mm. It has fast welding speed, large depth and small deformation.
4. Batch & Mass Production
Optical fiber laser welding machine can customize special automatic fixture to realize mass production of products.
5. Wobble welding
In the welding process, wobble welding can be realized, the spot size can be adjusted, and the automatic wire feeding device can be added according to the needs of customers
Main configurations
| Laser welding head Automation Fiber Laser Welding Machine |
| Multi-access linkage module |
| Workbench |
| HD solder joint monitor |
| Water chiller |
| Rotary Fixture |
Parameters
Model | ROBOT-FL1000V |
Output Power | 1000W |
Laser Wavelength | 1064nm |
Laser welding Depth | ≤5mm depending materials |
Focus Spot | 0.1-3.0mm |
Red Light Spot | 0.2-3.0mm |
Power Max | 10KW |
Laser Power Supply | 380V/3 phase/50Hz/40A |
Max Weight load | ≤200Kg |
Worktable Running distance | 200*200mm to 1200*1200mm |
Repeat Precision | ±0.01mm |
Position Precision | ±0.02mm |
Position System | Red light, CCD and Optional Rotary |
Laser Cooler | Water Cooling |
Dimension | 1600*800*1800mm |
Machine Weight | 300kg |
Applications
Automation Fiber Laser Welding Machine is widely used in mobile phone battery shell, electronic components, mobile communication, precision equipment, hardware products, automotive accessories, glasses, clocks, jewelry, medical equipment, thermal cups, wine pots, kitchens and other industries.
