Au3tech HW980 3 IN 1 laser welding cutting cleaning head
Product introduction:
Handheld laser welding&cutting&cleaning application is a new laser technology solution in the laser processing manufacturing industry. Comparing with traditional CO2 arc welding, it can present quality weld joint, high efficiency, and decent joint strength. Au3tech HW980 3 IN 1 laser welding cutting cleaning head is an ideal solution for all kinds of thin metal processing.
Product features:
HW980 welding head |
New upgraded wireless remote panel, all functions controller with one finger |
Precision optical element, excellent and stable of beam |
Cool appearance and ergonomic design, comfortable handheld |
Double protection lenses, high grade dust-proof design |
0-5mm welding beam width, easy operation, high firmness, nice welding joint |
Applied D200-F600 cleaning lens to achieve 80mm beam width |
HWS5000L controller |
Reliable safety performance, adapting with touch laser emitting, high security grade |
Remote controller at the welder side for multi-parameters adjustment |
Multi working modes, flexible switching in different laser emitting ways |
Modular design of controller and motor drivers, easy for matching with different solutions |
Product details:

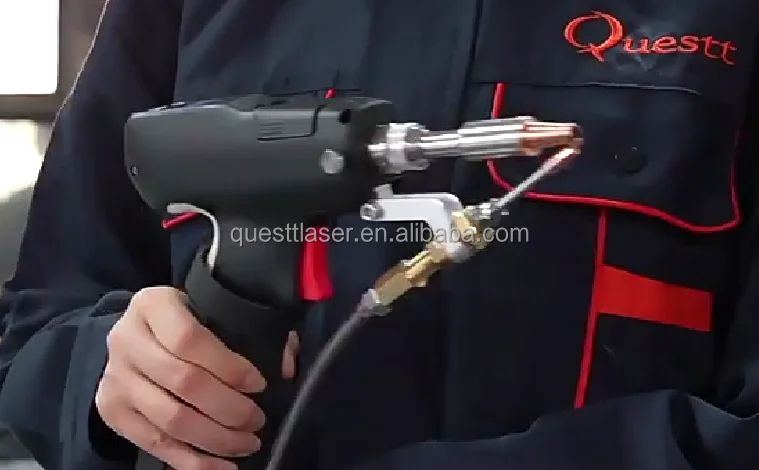

| Laser welding head Lightweight and flexible, can weld any part of the work piece Drawer type protection mirror and focus mirror, easy to change |

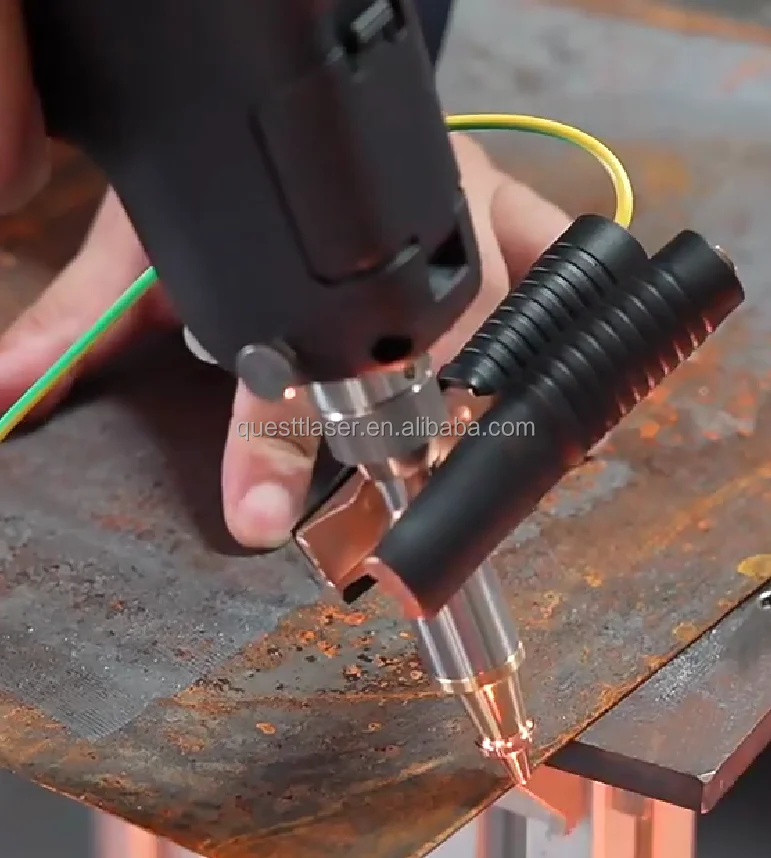

| Laser cutting head Capable of cutting carbon steel,aluminum plate, copper sheet and other metal materials |

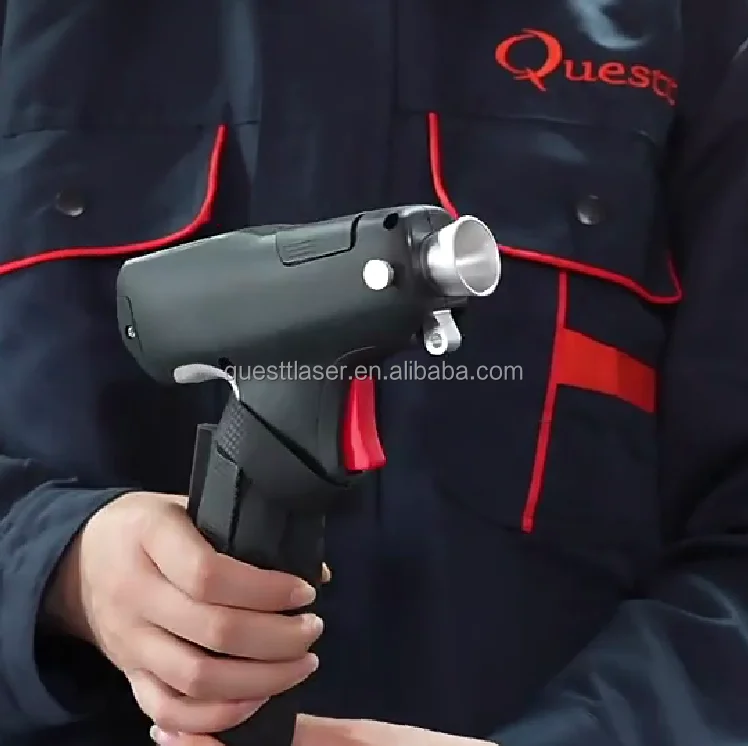

| Laser cleaning head Lightweight and flexible in the hand 360° cleaning |
Product Structure:
Product Specification:
HW980 3in1 head | |
Max Power | 2000W |
Focus Lens for welding | D=20mm, F=150mm |
Focus Lens for cleaning | D=20mm, F=600mm |
Collimator Lens | D=20mm, F=50mm |
Protective Windows | D=20mm, T=3mm |
Head Weight | ≈0.9kg |
Max. Pressure | 15kg |
HWS5000L Controller | |
PWM adjustable range | 0~10KHz |
Wobble frequency | 0~400Hz |
Beam width | 0~5mm(welding mode), 0~80mm(cleaning mode) |
User interface | 7 inch LCD touch screen |
Communication ports | RS485/RS232 |
Product Application:
We provide variety of products across laser welding applications including laser cutting heads, Au3tech HW980 3 IN 1 laser welding cutting cleaning head , cleaning head, laser welding system, laser cleaning system. With comprehensive solutions, our customer can experience best services and products without worrying about competitive and other issues which may result in unsatisfied condition.

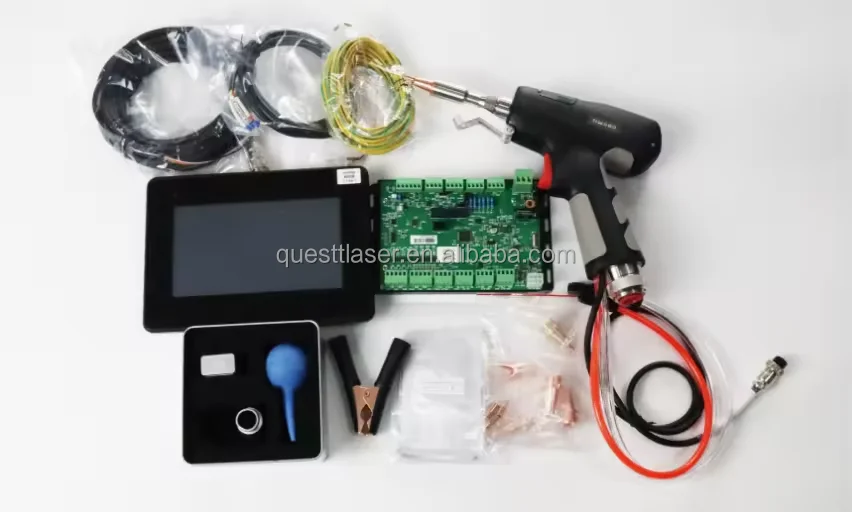

Package contentst:
HW980 3in1 head | 1 pcs |
HWS5000L controller | 1 pcs |
7-inch touch display | 1 pcs |
MARS9000P wire feeder | optional |

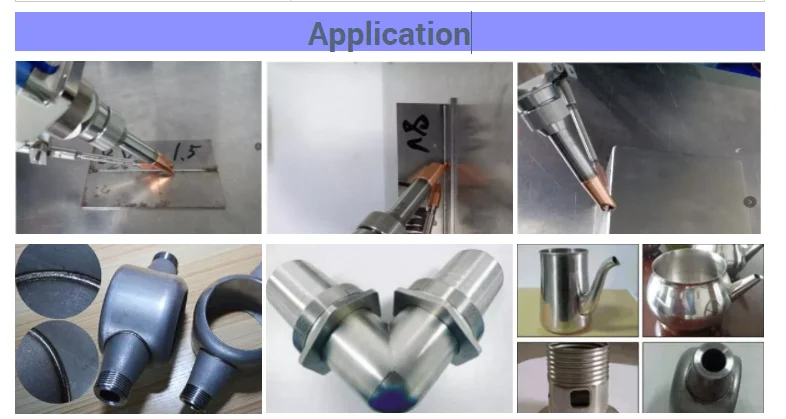

APPLICATION
1.Q:What is the warranty of the machine?
A:Questt Lasers have a warranty for 1-2 years.
2.Q:Are you a factory or trading company?
A:Quesstt Lasers is a factory for 22 years.Got import and export License.
3.Q:How about the quality?
A:Quesstt Lasers Technology is from Germany.High quality best price.
4.Q:What is your after-sale service?
A:If needed,Questt Lasers offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!
5.Q:How do i get technical support after purchasing?
A:Questt Lasers offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.
6.Q:How can i get assurance of my Payment?
A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
