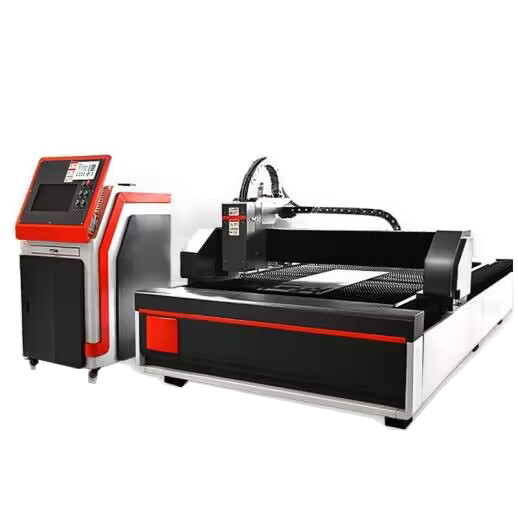

6KW Fiber Laser Cutting Machine

​

QA-FL6000-13025 6KW Fiber Laser Cutting Machine

6KW Fiber Laser Cutting Machine is a new designed model.Specially for slicing lengthy steel sheets up to thirteen meters.

Good for reducing massive layout thick steel sheets such as iron, stainless steel, aluminum, etc.

The cutter worktable is 13000mm*2500mm. It has excessive pace and its merchandise have clean edge, small kerf width and little warmth effect.

1.6KW Fiber Laser Cutting Machine undertake bilateral driver structure,process measurement is 13000mm×2500mm.

Y axis undertake carbon metal beam and it suitable for dynamic property.The computing device compact structure, with adequate rigidity, desirable reliability and excessive reducing efcient.according to the client product customization, extend the extension of the gantry arm, extend the slicing scope, to gain the reason of slicing the special-shaped workpiece outdoor the workbench area.

At the identical time, the hydraulic raise is embedded in the working location of the prolonged gantry arm to regulate the peak of the facet desk to reduce the workpiece of exclusive sizes.

​

​

2.The base of machine tool can be preset and precisely adjusted to ensure the precision life of the equipment.

3.X, Y axis adopt imported precision gear and rack driving, the Z axis adopts imported precision ball screw drive, machine tool maximum positioning speed can reach 40 m/min.

​

​

4.Partition dust removal table

​

5.Randomly equipped with cooling and dust removal device, corresponding national environmental requirements. It has advanced multi-chamber target-position dedusting system, which can respond to cutting position quickly. It has higher efficiency, better dedusting effect and more environmental protection than single-chamber exhaust system.

6.Use the non-contact capacitive sensor to control the Z axis,high induction accuracy、responsive and stable.When cutting,can automatic tracking the shape of plate’s surface,automatic revise the distance of nozzle and plate,keep stable of the laser focal spot and plate,to eliminate the undulating plate’s influence of the cutting quality.

​

7.Using high precision servo dual proportional valve automatic control cutting gas pressure, high pressure and low pressure automatic intelligent control, gas intelligent switching, in the process of perforating, cutting, corner, the end of the moment and continuous cutting, you can get the required precise gas pressure, improve automation and cutting quality.

​

8.With automatic edge finding function.

9.Transmission system protection and lubrication: leading screw ,guide(gear rack)adopt fully enclosed with flexible protective cover,Avoid dust pollution. Adopted professional lubrication system, point to point lubrication of all transmission components,The lubricating oil is no40 professional guide rail and screw lubricating oil, Ensure the life of moving parts.

​

10.Anti-interference protection：Adopt strict anti-interference rules, Signal lines and power lines are all high-density shielding,The zero line is isolated from the ground line, Ensure reliable and stable operation of machine tools

(1) Adopt the world's first brand intelligent high-power laser cutting head.
(2) It can also provide a wider parameter window, so that the best cutting parameters can be easily obtained.
(3) ProCutter 2.0 has 4.0 ready for industry.The built-in sensor can detect the contamination and condensation state of the lens in the cutting head and send an alarm signal.
(4) All the test data can be read at the mobile terminal through the wireless network to facilitate the user to monitor the running state of the cutting head.

A. Excellent beam quality (BPP)

B. Constant BPP in full power range
C. Use a long focal length to still get a small spot
D. Electro-optic conversion efficiency >25%
E. Maintenance-free operation
F. Modular design
G. Compact and easy to install
H. Service life of pump source >.1 million hours
I. Integrated light-light coupler, or light gate

1.The filter aspect is robotically cleaned barring stopping the principal computing device and different operations.When the floor saturation resistance of the filter barrel reaches a positive allowable value, the automated cleansing feature is grew to become on, and every filter barrel unit is cleaned for my part in flip throughout the working method of the principal machine, so as to make sure that the deduster is usually in a correct working state.

2.All filter cylinders are mounted vertically, and the dirt purification impact is greater high-quality than different structures.The exceptional polytetrafluoroethylene (ptfe) movie protecting the floor of the filter barrel can make certain the lengthy provider lifestyles of the filter barrel.

3.Filter cartridge with unique filter substances can be chosen to meet the necessities of dirt elimination or air filtration of exceptional properties.

4.The filter cylinder is changed via extraction, which can be changed besides any auxiliary tools.

5.Pipeline interface is preset on the proper side, which can be freely chosen by means of the person in accordance to the occasion.

6.Equipped with excessive overall performance worm tools fan, it has massive air suction and exquisite suction.

7.The operation of the filter cylinder can be located via the digital instrument on the manage panel.

8.1 mg (adjustable) filter is chosen to successfully stop the inhalation of particles and sundries containing water and oil.

Q1: I knew nothing about this machine, what kind of machine i should choose?
     Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
     We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
    We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials.
Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?

If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.

​
