Description:

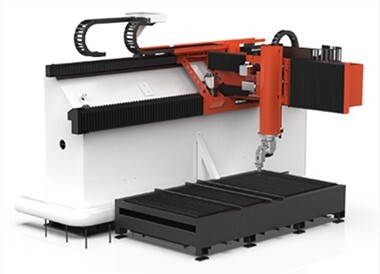

The 3D 5 Axis Laser Cutting Machine is characterized by high precision, high speed, high efficiency, high stability, leading technology in the world, compact structure, simple operation and easy maintenance. The products are widely used in automotive, mould, household appliances, engineering machinery, ships, hardware, medical equipment, fitness equipment and other fields to meet the requirements of various metal workpiece surface cutting and trimming.
Compared with robot 3d cutting, 3D 5 Axis Laser Cutting Machine has fast speed and high precision;
Compared with the traditional CARBON dioxide laser cutting machine, the use cost is low, the operation is simple, the maintenance is convenient.
3D 5 Axis Laser Cutting Machine Characteristic:
1.High Cutting Accuracy
2.Perfectly solving the problems of metal surface cutting and trimming.
3.High-speed rotary worktable;
4.High-performance 3D laser processing head；
5.Independently developed online modification software.

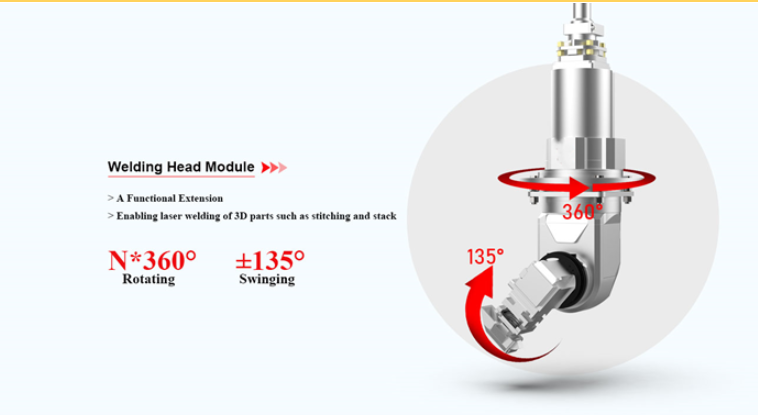

3D Head
Technical data of 3D 5 Axis laser cutting machine
|
MODE |
QA-3015RC |
||
|
X Axis |
3000mm |
||
|
Y Axis |
1500mm |
||
|
Z Axis |
680mm |
||
|
EACH AXIS |
A-Axis Travel ( Swing Axis ) |
±135° |
|
|
C-Axis Travel ( Rotary Axis ) |
土nx360。 |
||
|
U-Axis Travel ( Floating Axis ) |
±12.5mm |
||
|
WORKING TABLE |
MOBILE/ROTARY/FIXED |
||
|
X/Y/Z Axis Positioning Accuracy |
±0.03mm |
||
|
X/Y/Z Axis Repeat Positioning Accuracy |
±0.02mm |
||
|
ACCURACY |
A/C-Axis Positioning Accuracy |
0.015° |
|
|
A/C-Axis Repeat Positioning Accuracy |
0.005° |
||
|
Maximum X / Y / Z Axis Positioning Speed |
60m/min |
||
|
A/C-Axis Maximum Positioning Speed |
720°/s |
||
|
SPEED |
X / Y / Z Axis Maximum Acceleration |
0.5G |
|
|
A/C Axis Max. Acceleration |
5400°/s2 |
||
|
Phase |
3 |
||
|
Power Supply Rated Voltage |
380V |
||
|
POWER SUPPLY |
Frequency |
50Hz |
|
|
Total Power Protection Plass |
IP54 |
||
|
Total Weight |
52000kg |
||
|
WEIGHT AND SIZE |
Machine footprint (whole machine) |
~6300mm(L) |
x6000mm(W) x3900mm(H) |
Application of 3D 5 Axis Laser Cutting Machine

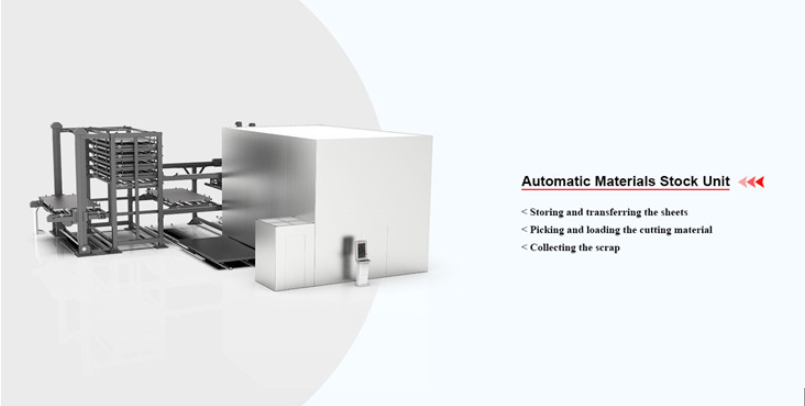

Cutting,Welding; visual inspection; automatic loading and unloading etc.
