200w Pulse Suitcase Laser Cleaning Machine Rust Removal Laser
200w Suitcase Fiber Laser Cleaning Machine Rust Removal Laser
Introduction

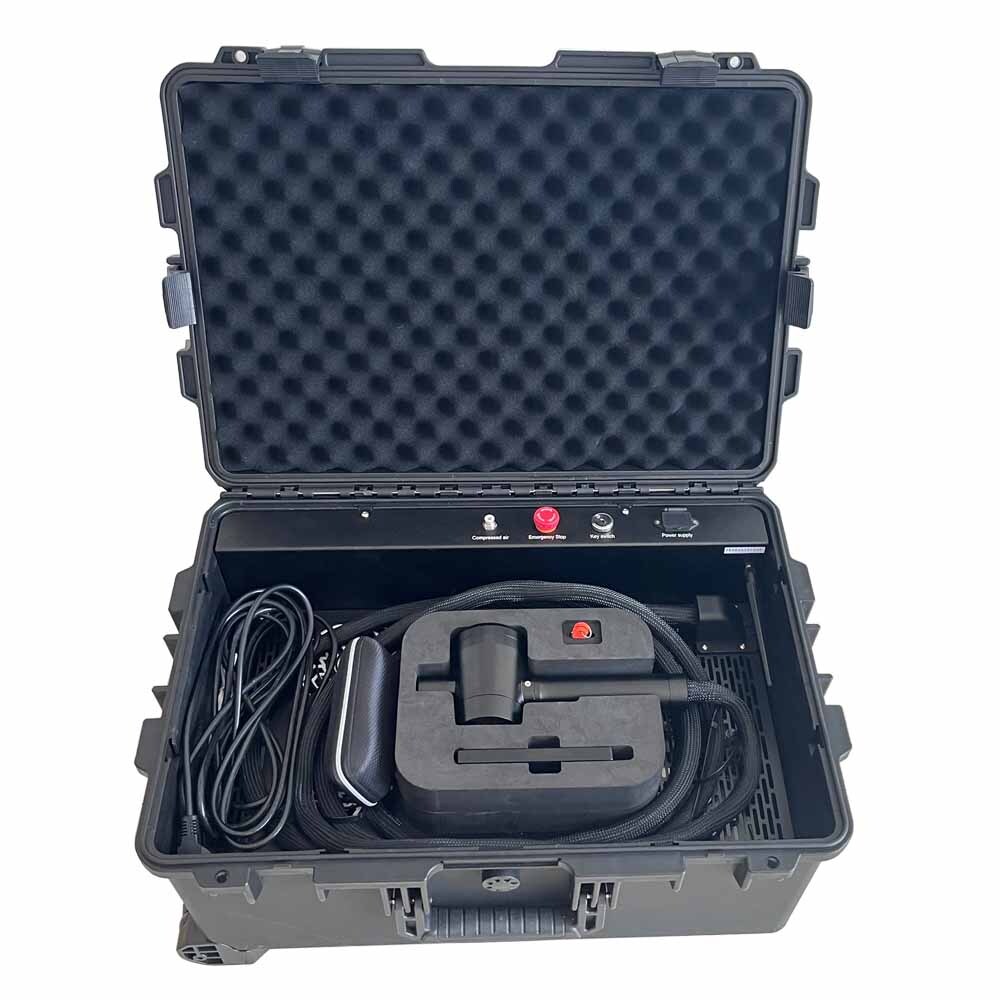

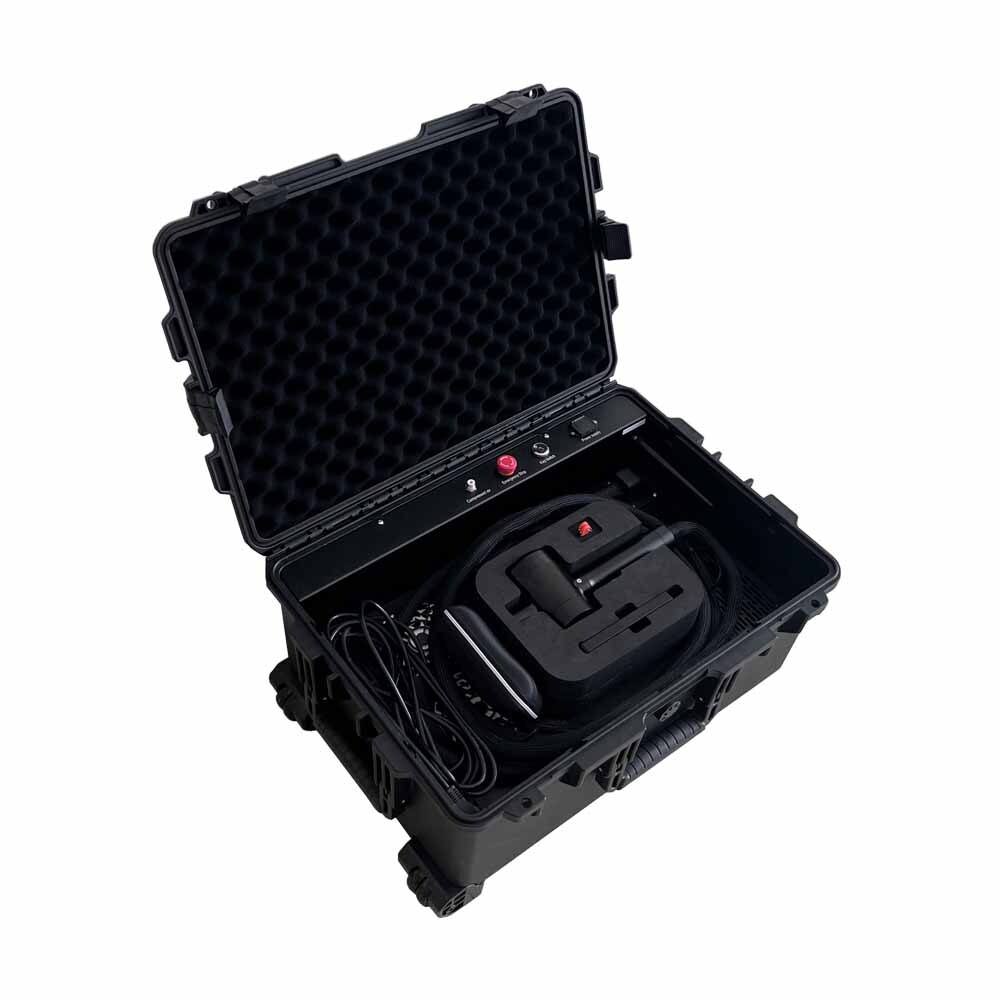

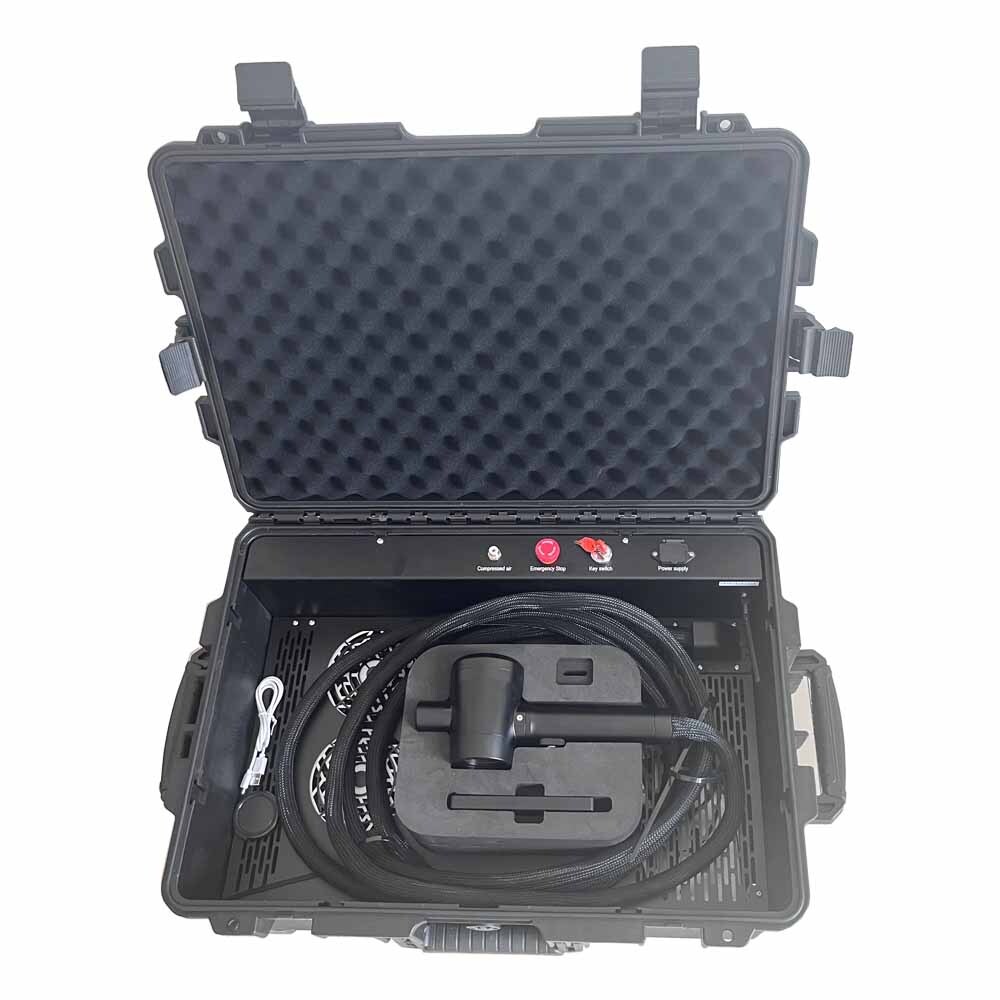

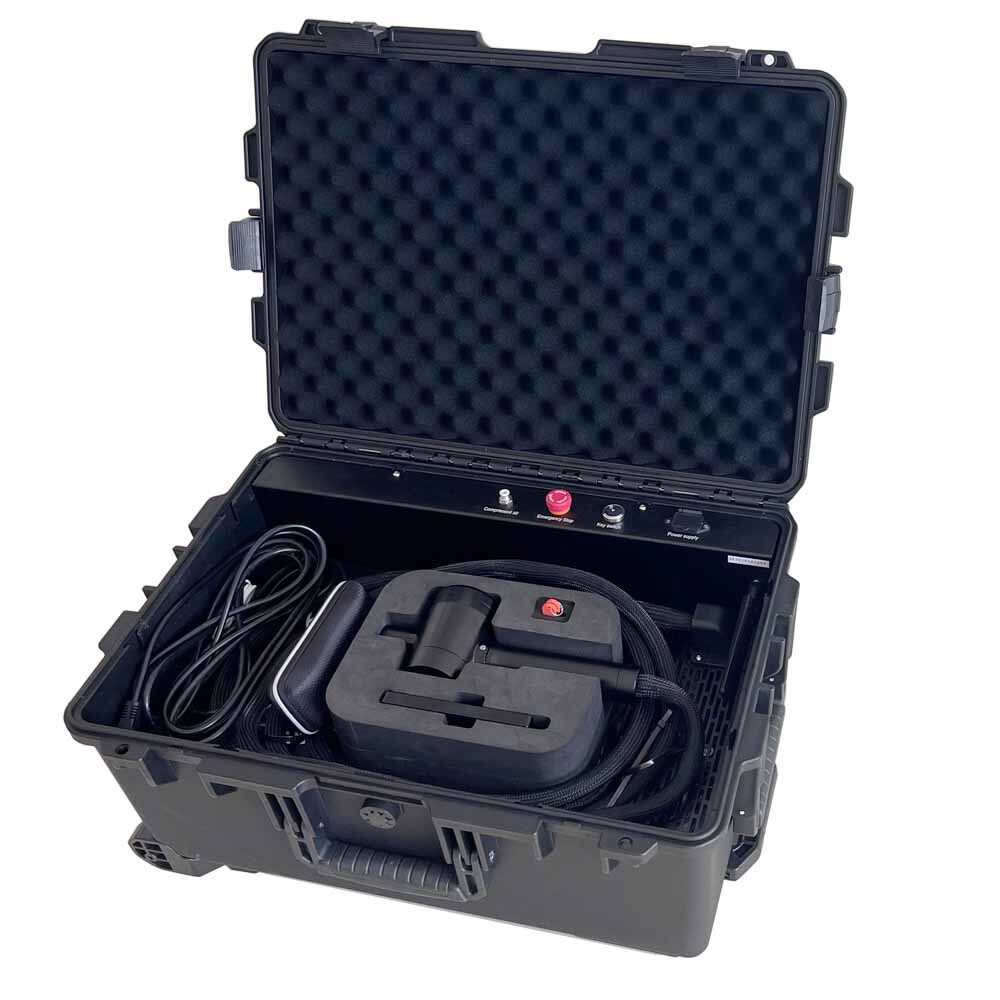

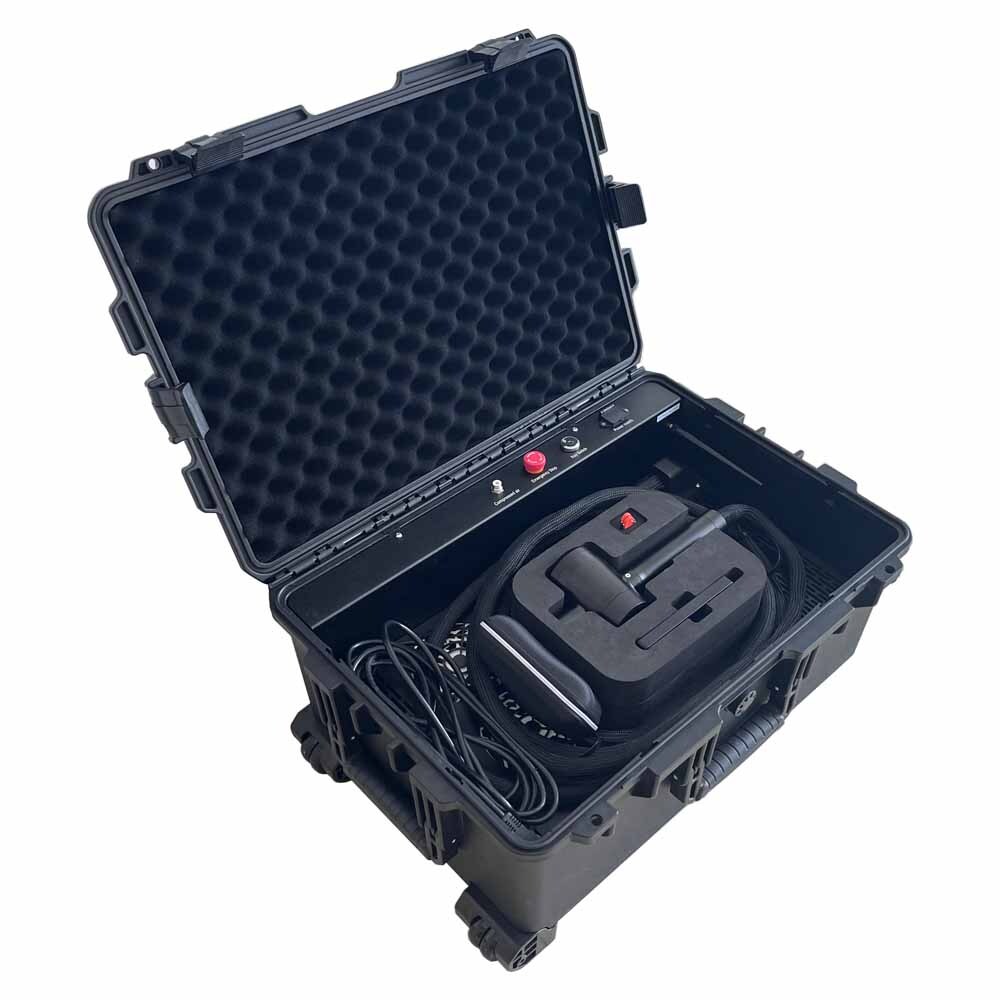

200w Pulse Suitcase Laser Cleaning Machine Rust removal laser is a suitcase type machine.The weight is only 27kg, the outlook is the same as a travel case , which is very easy to take along and move. Touch screen controller is as easy to operate as a mobile phone. We also approved to add Phone APP control system.
The cleaning process is very simple and rapid. 200w Pulse Suitcase Laser Cleaning Machine can remove the rust, paint, grease, dirt, coating, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material.
Features
Compact dimension and light weight
2. 8 kinds of cleaning modes
3. Self-developed cleaning system
4. Good cooling and ventilation effect
5. Easy maintenance
6. High cleaning efficiency
7. High-Tech non-contact cleanin
g
Machine details
Specifications
|
Optical parameters |
|
|
Model |
QA-LC200S |
|
Laser source |
Fiber |
|
Laser power |
100W |
|
Fiber cable length |
5 M |
|
Laser wavelength |
1064nm |
|
Pulse energy |
1.5 mJ |
|
Pulse frequency |
135KHz |
|
Pulse width |
150-200ns |
|
Power range |
10-100 adjustable |
|
Cleaning speed |
≤20 M²/Hour |
|
Power instability |
<5% |
|
Cooling |
Air cooling |
|
Cleaning head parameters |
|
|
Scan range |
0mm-110mm, supporting 8 scanning modes |
|
Field mirror focal length |
160mm(Optional) |
|
Cleaning head weight |
＜0.6kg |
|
Mechanical parameters |
|
|
Machine dimension |
670*450*310 mm |
|
Packing dimension |
690x540x340mm |
|
Net weight |
25kg |
|
Gross weight |
30kg |
|
Operating environment |
|
|
Power consumption |
≤1000W |
|
Temperature |
-40 ℃-40 ℃ |
|
Voltage |
Single phase 110V/220V±10%,50/60Hz |
|
Working environment humidity |
≤80% |

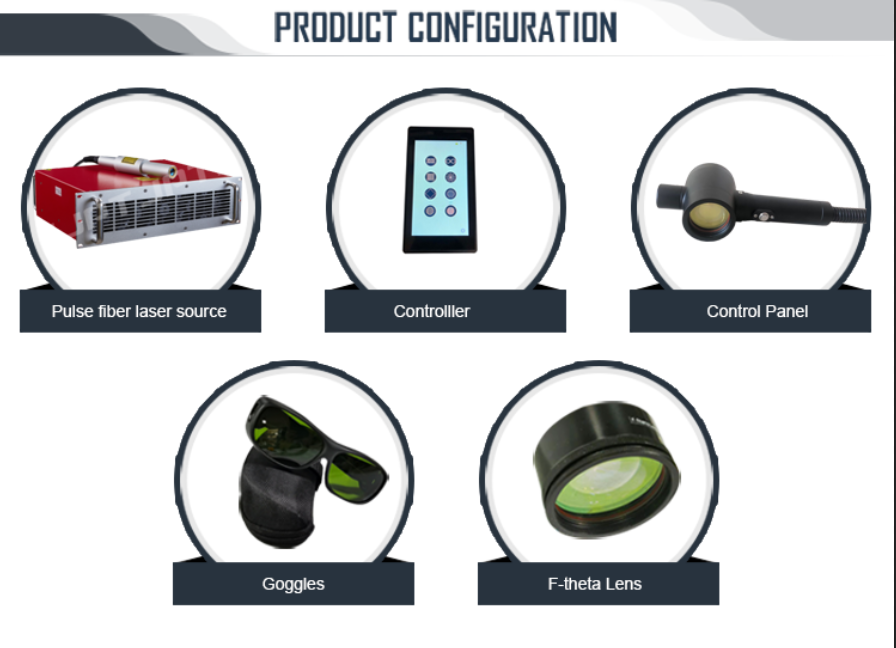

Configurations
|

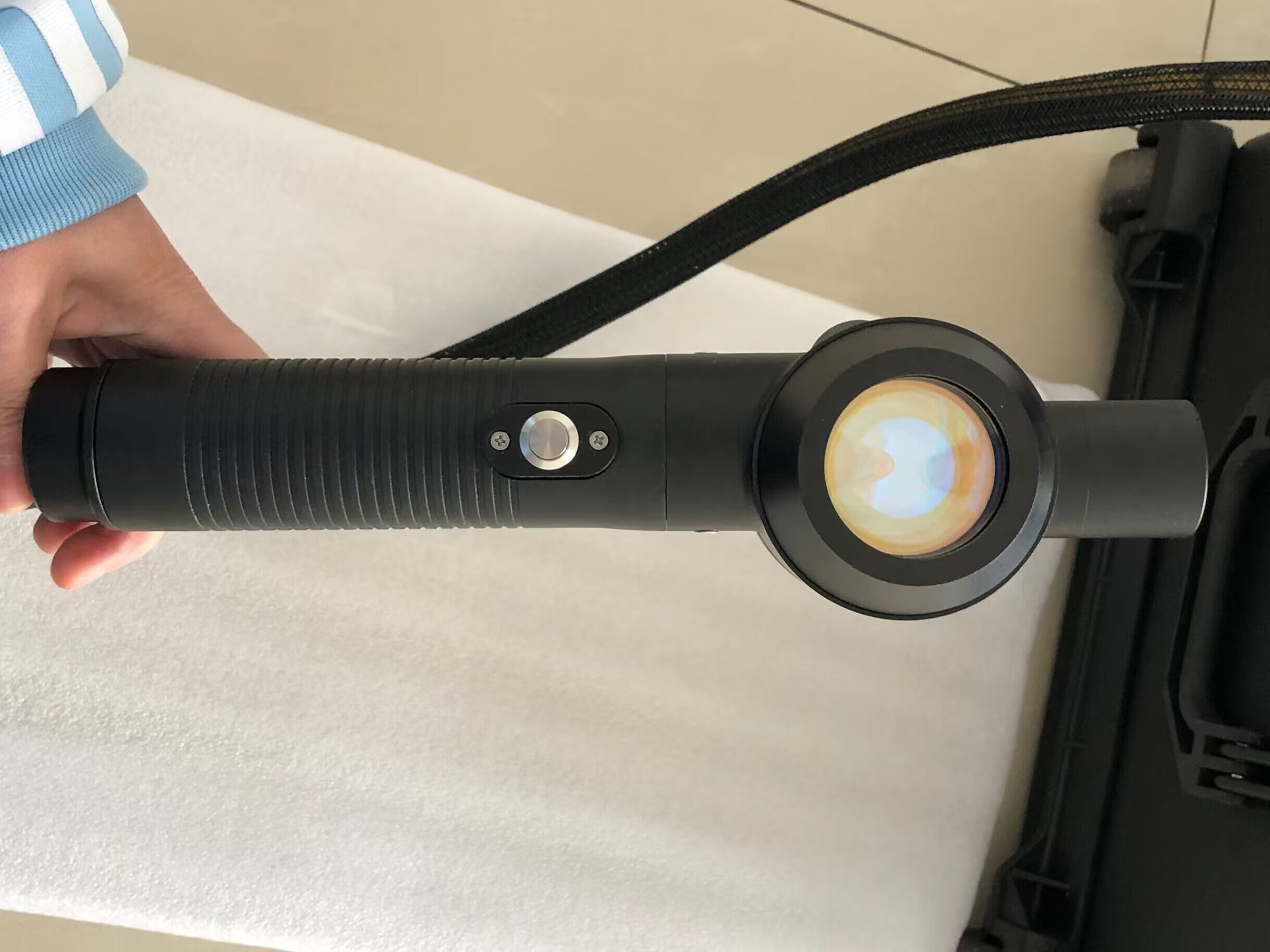

Laser cleaning head The laser head is small and light, weighing less than 0.6kg, equipped with dust-proof protective mirrors. |
|

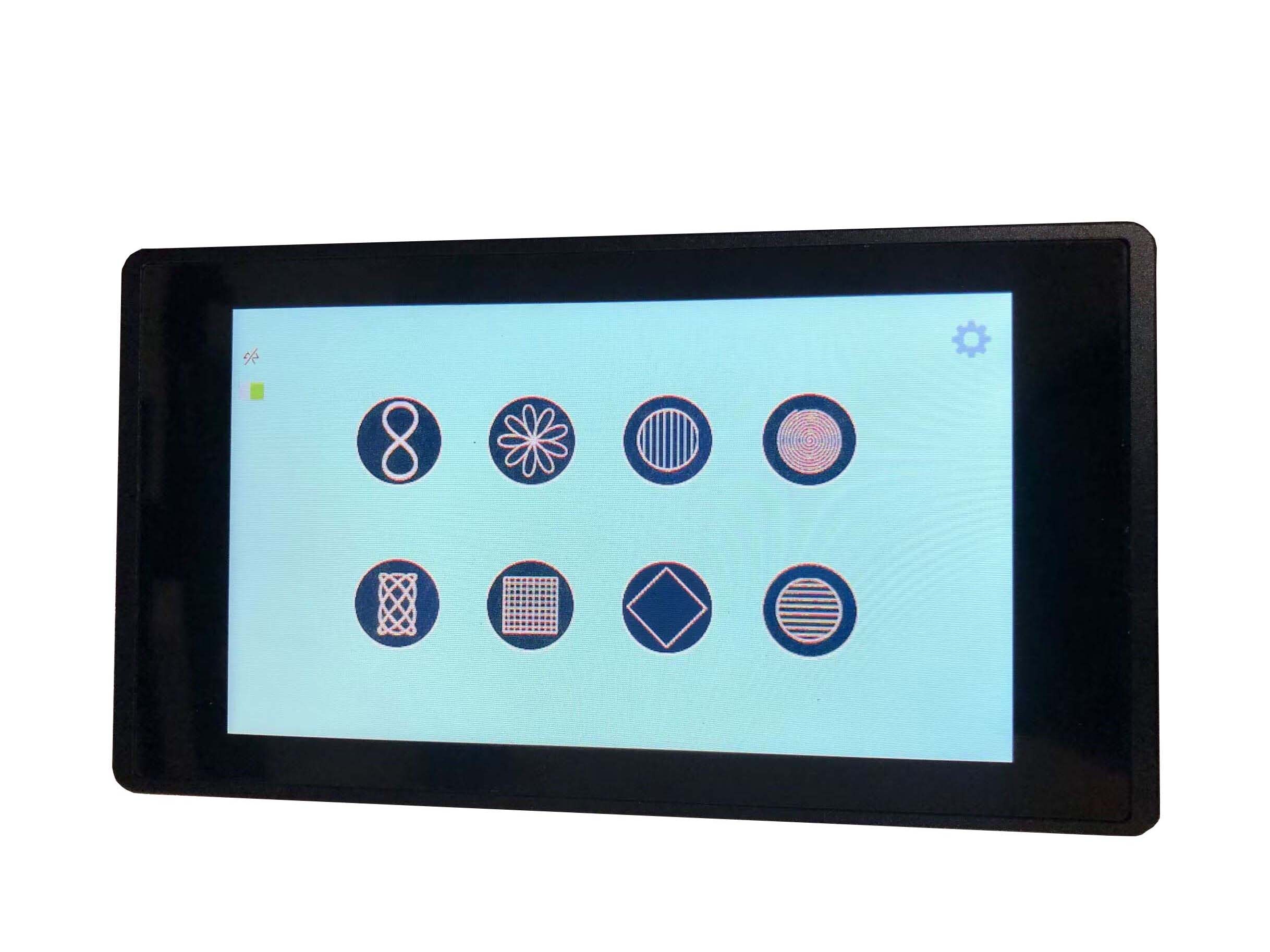

Touch screen controller Wireless touch operation screen, small size like mobile phone, light weight. There are 8 kinds of preset modes. |
|
|

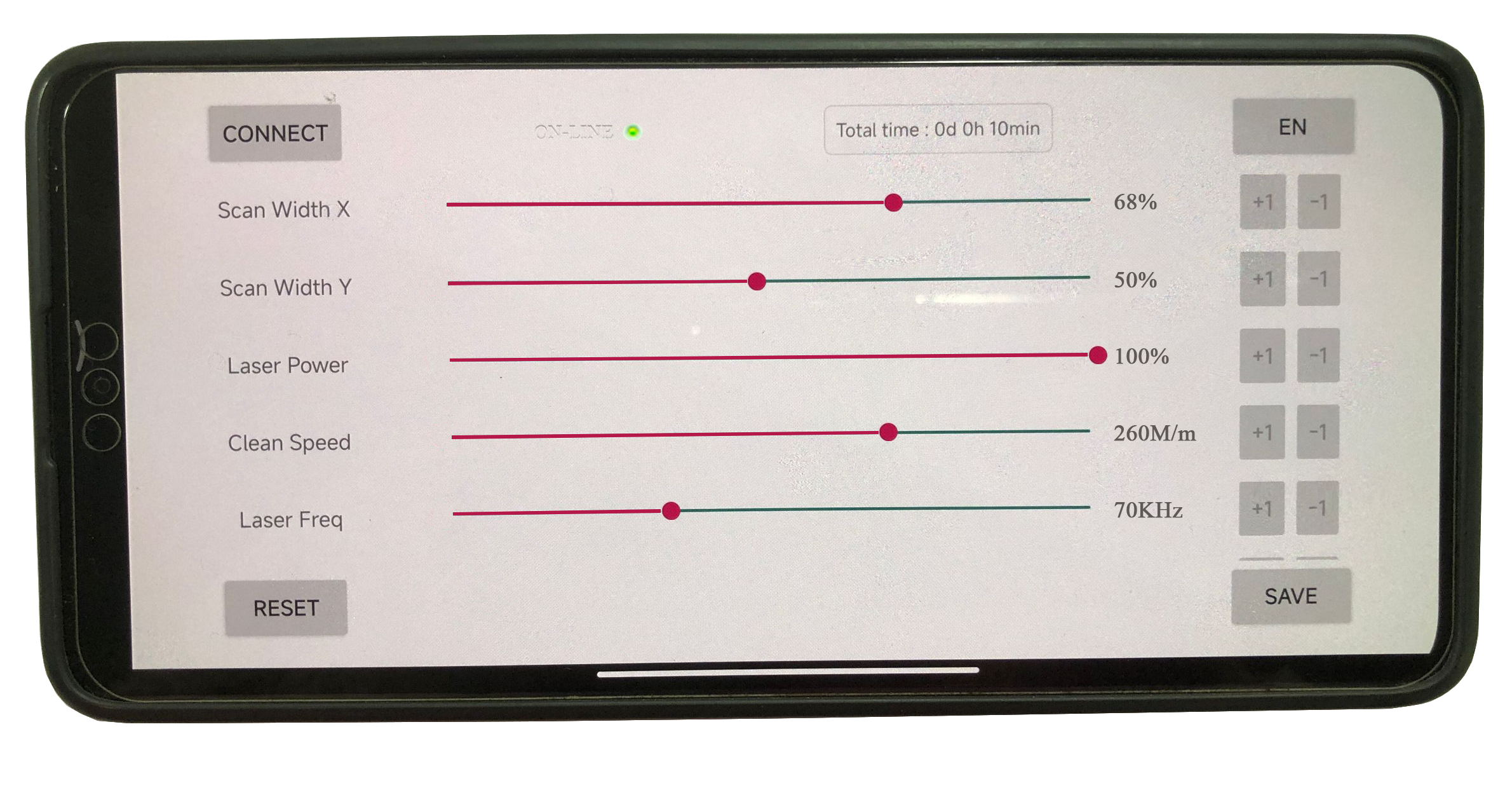

Mobile APP control There are two control methods, one is a handheld controller, and the other is controlled by a mobile phone Bluetooth APP, with a timing function. Easy operation. |
|
|

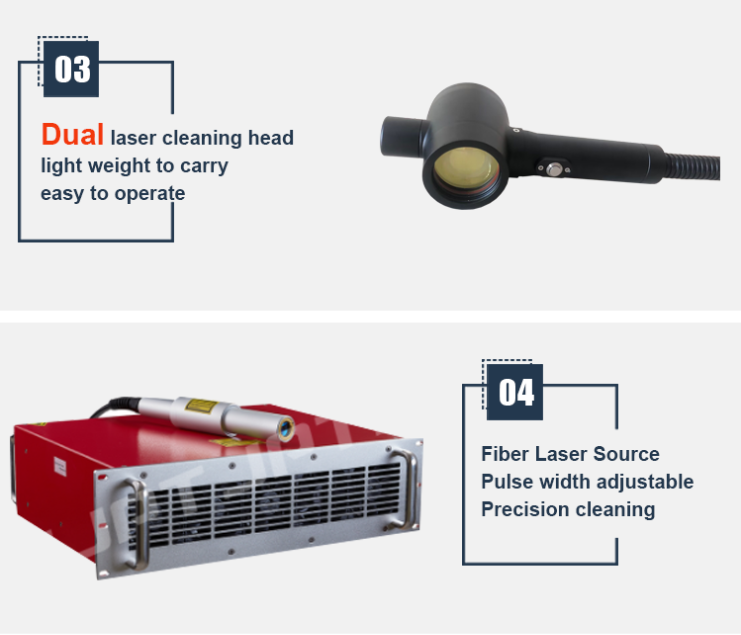

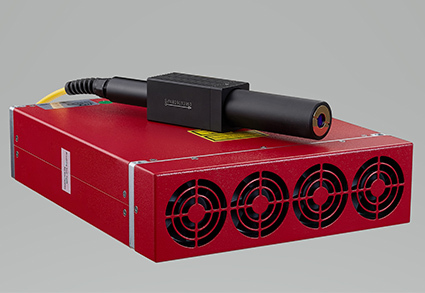

Laser source JPT pulse laser source, maximun monopulse energy is 1.5mJ. The lifetime is 100000hours, warranty is 2 years. |
|
|

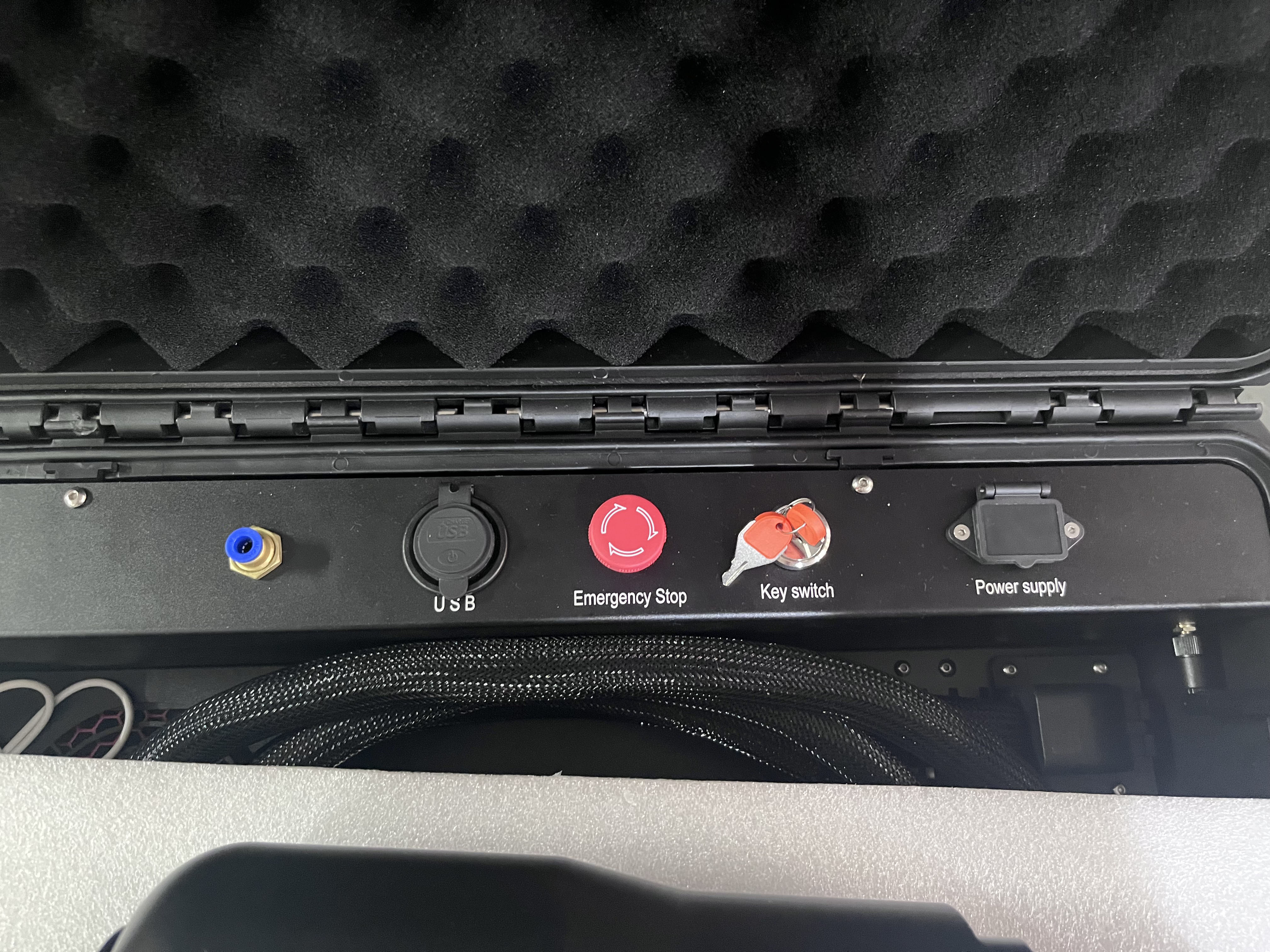

Buttons 1.Power plug:110/220v, We will adapt to power plugs for different countries 2.Key switch: The main power switch of the machine. 3.Emergency stop button: Emergency stop button of the equipment. 4.Air interface:Connect dry compressed air to prevent dust from damaging the lens during cleaning
|
|
|

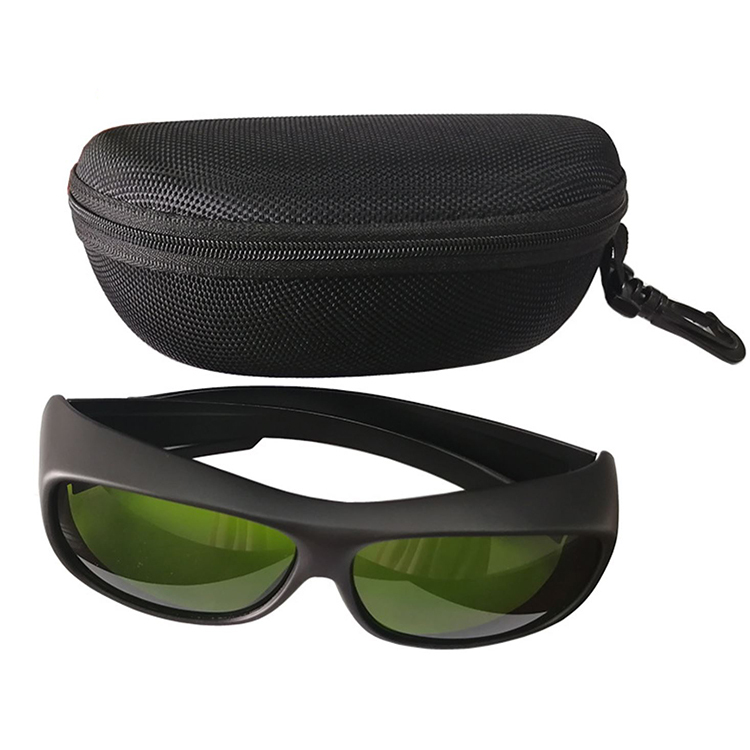

Laser safety goggles Laser safety goggles protect your eyes from laser damage,with a high protection index and very safe
|
|
|
Focus lens Standard F160 focus lens, cleaning width 100mm, optional larger focus lens, maximum cleaning width supports 300mm |
200w Pulse Suitcase Laser Cleaning Machine Application scope
Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, etc.
