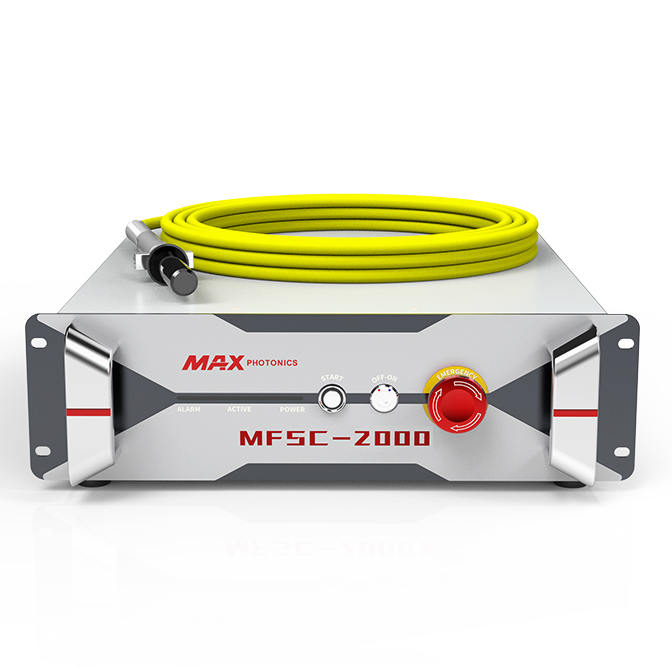

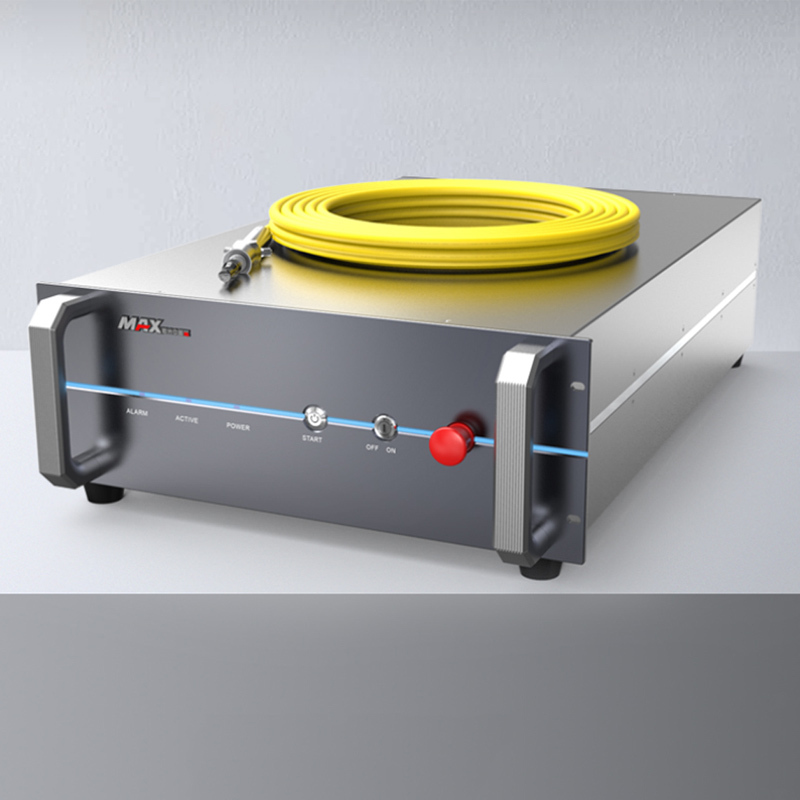

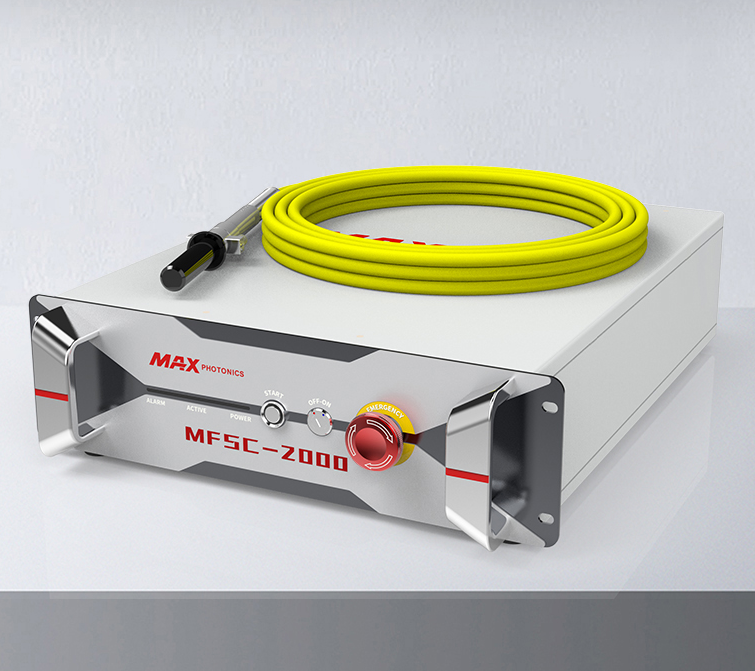

2000W MAX Fiber Laser Source Description
2000W MAX Fiber Laser Source Features
* Modular design, stable performance.The internal structure adopts the photoelectric module separation design, and the operating performance is more stable.
*Easy maintenance reduce downtime Optical modules,electrical modules, controlunits. and drive units can be directly replaced, upgraded, and maintained at the client.
*Customized to meet various needs Users can choose different size of fiber core diameters in accordance with the different process requirements to meet different processing needs.
*Uniform spot energy distribution Reduce welding spatter, thick plate cuttingability is more stable.
*Multiple applying scenarios
2000W MAX Fiber Laser Source can be used with laser processing heads galvanometers, etc. for system integration with robots. machine tools. etc.: laser fine cutting, precision welding processing, used in 3C. hardware. medical automotive aviation and other fields.
2000W MAX Fiber Laser Source Description
| Model | MFSC-1000W | MFSC-1500W | MFSC-2000W | MFSC-3000W |
| Optical Properties | ||||
| Output Power(w) | 1000W | 1500W | 2000W | 3000W |
| Operating Mode | Continuous/Pulse | |||
| Power AdjustRange(%) | 10-100% | |||
| Spectral Bandwidth(nm) | 3-5 | |||
| Laser Beam Quality(M2) | 1.3 (20u-QBH) | |||
| 2.8 (50u-QBH) | ||||
| Laser on time(μs) | 50-100 | 50-80 | ||
| Laser oFF time(μs) | 50-100 | 50-80 | ||
| Modulation Power(KHz) | 20 | 20-50 | ||
| Indicating Red Light Power(μW) | 150 | |||
| Electrical Parameters | ||||
| Voltage( VAC) | 220 | |||
| Working Temperature(℃) | 10-40 | |||
| Relative Humidity(%) | 10-85 | |||
| Cooling Method | Water Cooling | |||
| Weight(KG) | 50(+3) | 88 | ||
2000W MAX Fiber Laser Source Application
2000W MAX Fiber Laser Source is normally used in building materials .
Laser cutting construction iron frame, cutting doors and windows, cleaning iron frame rust.
welding iron frame.Advertising
Cutting and welding of metal billboards/advertisement racks. Ad text marking
Products package
