Products Description

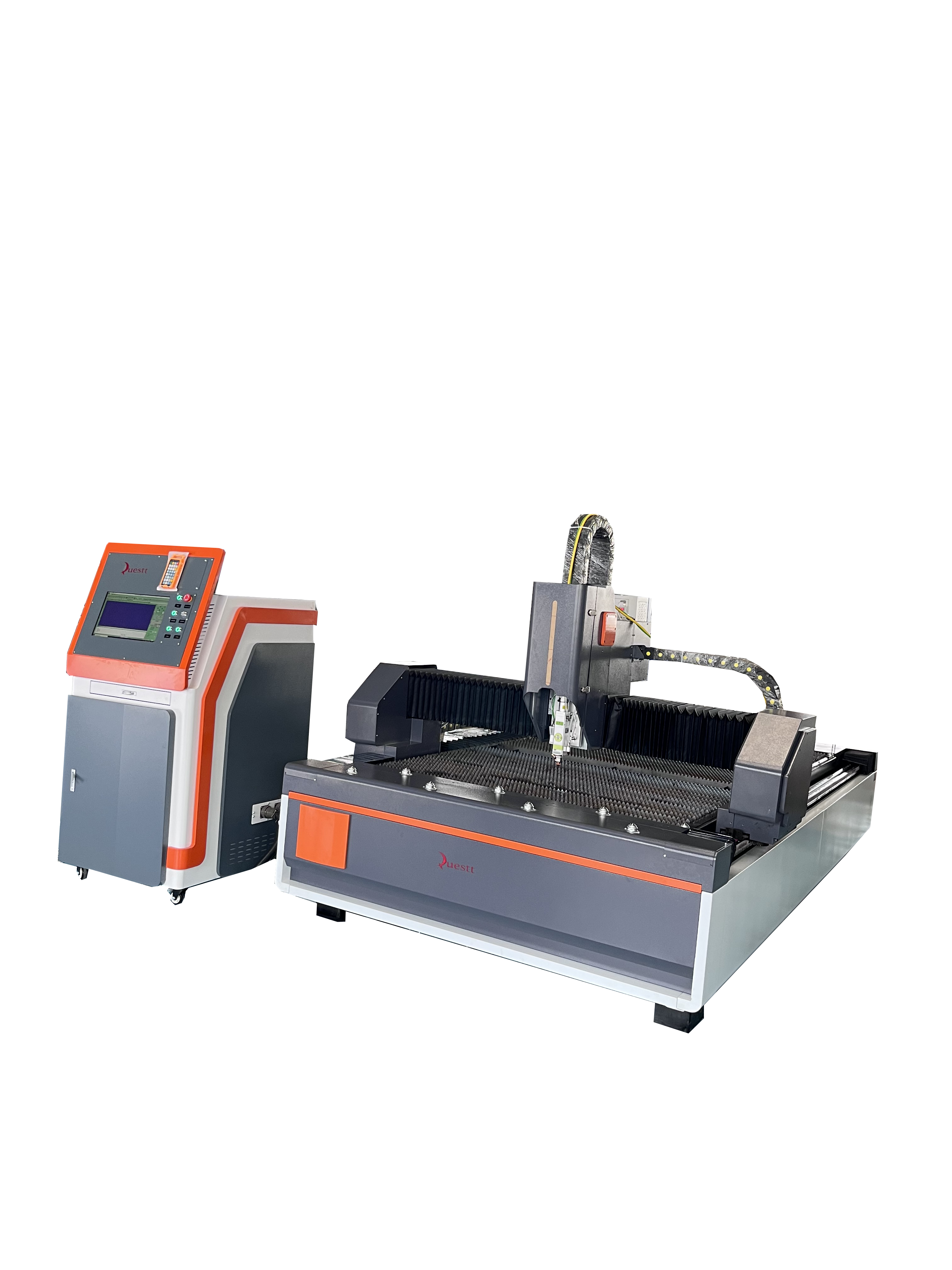

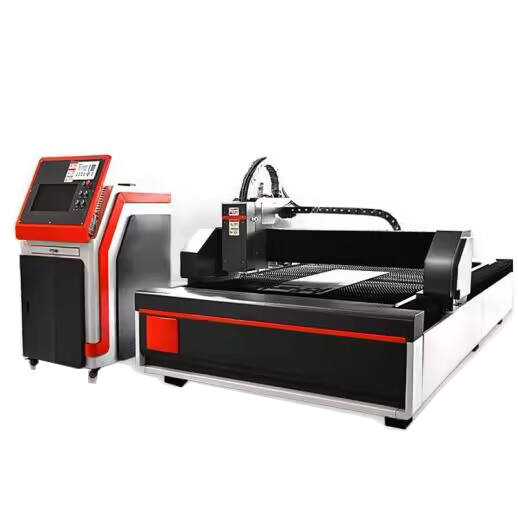

Rigid-FL1500 1500w Metal Sheet Fiber Laser Cutter is an advanced tool that is widely used in various industrial applications. Its high precision cutting ability and speedy processing time make it an extremely efficient tool for cutting metal sheets with unparalleled accuracy and speed.
1500w Metal Sheet Fiber Laser Cutter is equipped with a powerful laser that can easily cut through even the toughest materials with ease. It is designed to handle a variety of metal sheets in various thicknesses and can cut through stainless steel, aluminum, brass, and other metals with amazing precision.
With cutting-edge technology, 1500w Metal Sheet Fiber Laser Cutter is capable of delivering fast and precise results. Its advanced software and control system allow for easy programming and operation, making it easy for even novice operators to use.
The 1500w Metal Sheet Fiber Laser Cutter is also highly reliable and easy to maintain. Its durable construction ensures that it will last for years without requiring frequent repairs or maintenance.
Configurations
|
Item |
Details |
Picture |
|

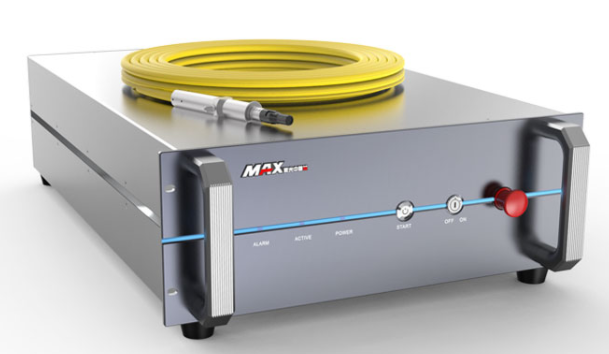

Fiber Laser Source |
1500W Fiber Laser Generator from China Model: MFSC-1500W |
|
|

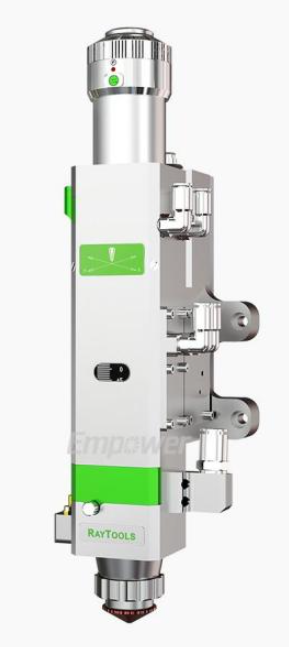

Laser Cutting Head |
Auto focus Raytools from Swiserland Model: BM109 |
|
|

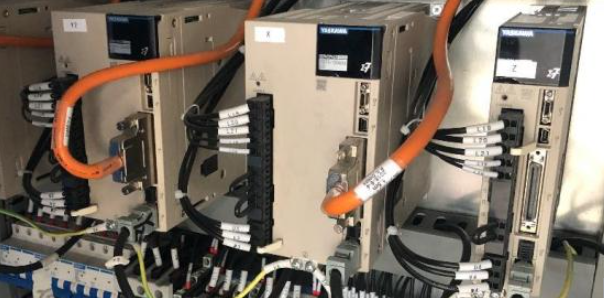

Servo Motor & Driver |
YASKAWA From Japan |
|
|

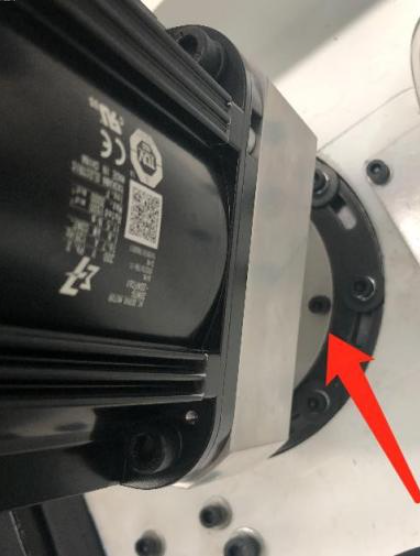

Reducer with Gear |
Shimpo from Japan Model VRT-090-7 F3 |
|
|
Rack Pinion |
YYC from Taiwan(World Brand)
Model: M2(45 steel) |
|
|
Linear Guiderail |
Hiwin From Taiwan(world Brand)
X axis model: HGH30CA2R4080ZACII Y axis model: HGH20CS2R2210ZACII |
|
|

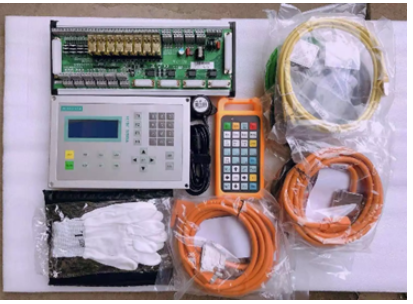

Control System |
CyperCut from Bochu China |
|
|

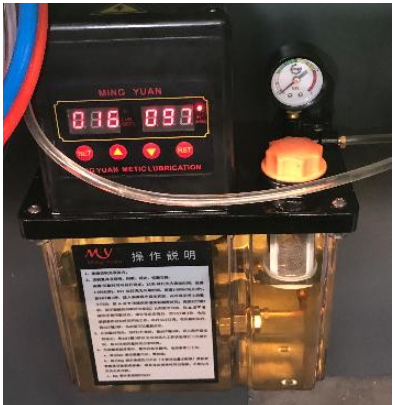

Oil Lubricated |
Automatic lubricated |
|
|

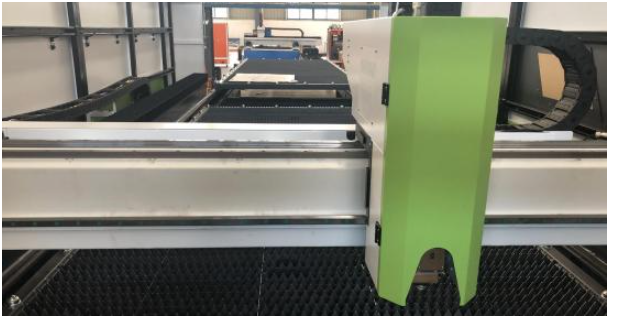

Gantry System |
Steel gantry |
|
|

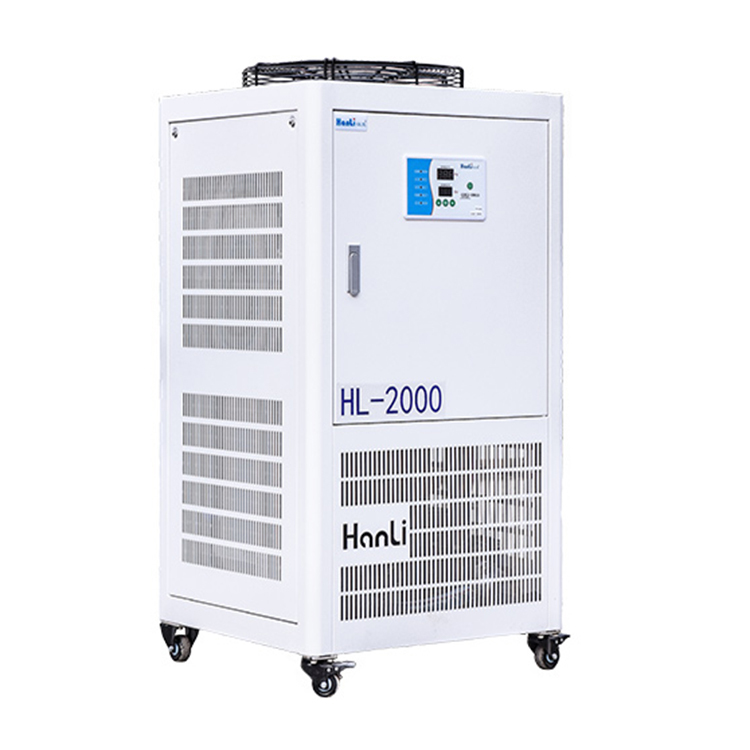

Water chiller |
Hanli 1500w From China |
|
|
Pneumatic Components |
Relay/AC contactor SCHNEIDER |
|
|
Proportional valve |
NNT |
|
Products Parameter
|
Laser output power |
1500W |
|
Laser wavelength |
1070 nm |
|
Laser medium |
Glass fiber with rate-earth element |
|
Max cutting speed |
80m/min |
|
Max cutting thickness |
3-20mm according to material |
|
Output energy regulating |
10%~100% |
|
Input electric power for laser |
≤2KW |
|
Type of cooling |
Water cooling |
|
Drive mode |
Imported servo motor |
|
Transmission mode |
Imported high precision Rack and Pinion |
|
Max-range for cutting |
3000mm×1500 mm |
|
Power supply |
220V/50HZ |
|
Contour dimension |
4270mm×2420 mm×1750 mm |
|
|
|
|

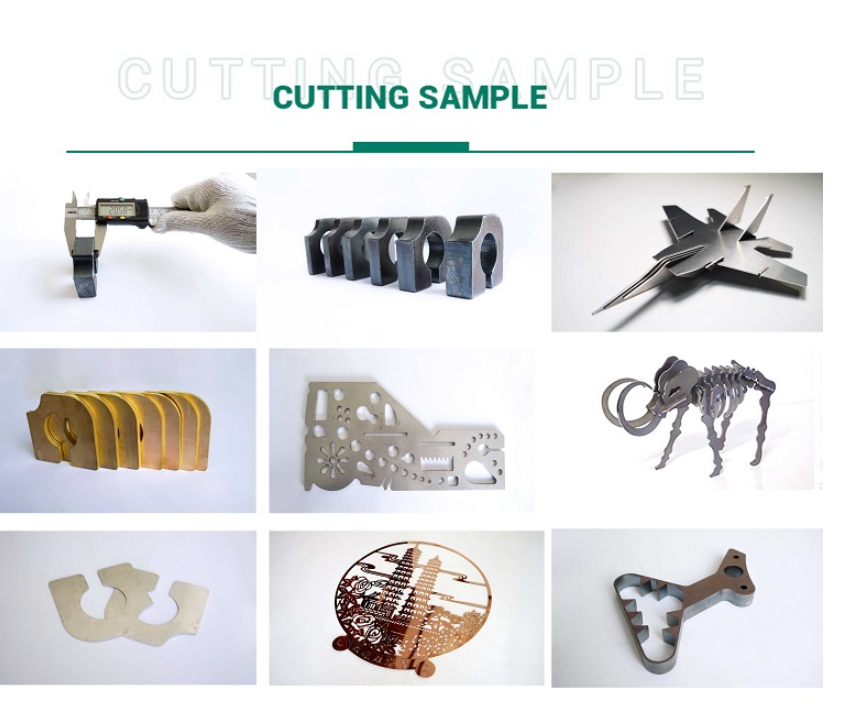

Cutting Sample
Application
1500w Metal Sheet Fiber Laser Cutter has become an essential tool in various fields such as manufacturing, construction, and engineering. The 3015 metal sheet cutting machine is a cutting-edge technology that has revolutionized the way metal sheets are cut. This high-performance cutting machine is built with a durable structure that is designed to withstand the harsh conditions of industrial environments. Using advanced laser technology, the 3015 metal sheet cutting machine is capable of cutting a variety of metals with precision and accuracy. One of the key benefits of using the 1500w Metal Sheet Fiber Laser Cutter is its efficiency. This advanced technology allows for faster cutting speeds and greater accuracy, which ultimately leads to increased productivity and reduced costs. Additionally, the 3015 metal sheet cutting machine is incredibly versatile, allowing for a wide range of cutting options and applications. Another advantage of the 1500w Metal Sheet Fiber Laser Cutter is its ease of use. With simple controls and intuitive software, the machine can be operated effectively by users of all skill levels. This user-friendly design makes it an ideal choice for small workshops as well as large manufacturing plants. In addition, the 1500w Metal Sheet Fiber Laser Cutter is an environmentally friendly option as it reduces waste and minimizes energy consumption. It is also a safer alternative to traditional cutting methods, as it eliminates the need for dangerous blades and reduces the risk of injury to workers.

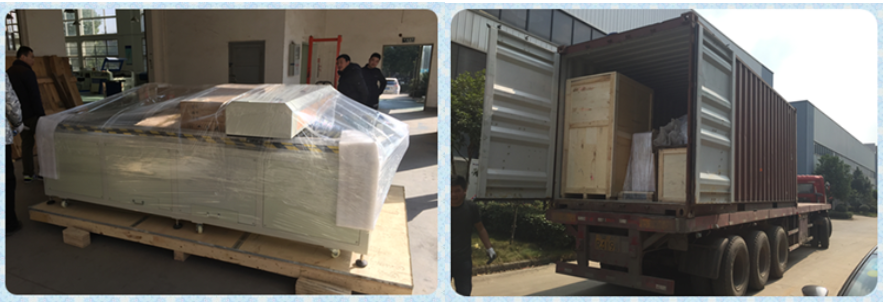

Packages
