1500 watts 3D Robot Fiber Laser Cutting Machine For Metal Sheet

1500 watts 3D Robot Fiber Laser Cutting Machine For Metal Sheet

Introduction

1500 watts 3D Robot Fiber Laser Cutting Machine For Metal Sheet will vastly enhance your manufacturing effectivity and accuracy which will supply you a greatest strong product for your market.
We makes use of both Kuka or ABB robots which supply accuracies from +/- 0.05mm and most positioning velocity of 30m/min. Also the use of the cutting-edge in laser technological know-how by way of integrating the strength environment friendly fiber laser source, giving you the satisfactory and most price advantageous science on the market today.
1500 watts 3D Robot Fiber Laser Cutting Machine For Metal Sheet is described as: multi-angle, multi-direction bendy reducing for specific thickness metal-plate with the aid of unique fiber laser reducing head.
1500 watts 3D Robot Fiber Laser Cutting Machine For Metal Sheet makes use of the gain of the flexibility and overall performance of the robotic . According to the measurement of the processing work piece, in order to teach-programming or offline-programming one-of-a-kind tracks on unique products, the robotic can be hooked up efficiently or inversely .The robot´s sixth axis loaded fiber laser slicing head is additionally capable to do the 3D slicing on the irregular processing work piece.
The fiber Robot 3D Laser Cutter machine is significantly used for Automobile manufacturing, engineering machinery, metal-plate processing and aerospace enterprise etc. The profitable utility has won big market impact in the home car manufacturing, auto-parts and engineering equipment processing field.

Advantage

1) Represents the most superior laser reducing standard;
2) Professional laser slicing manipulate systems, pc operations, to make certain the fantastic of slicing and to make the slicing job easier;
3) The six-axis robotic can gain 3D cutting, handy operate, excessive intelligence, to make certain high-speed tools with high-precision and excessive reliability;
4)The import laser reducing head is responsive, correct and high-quality cooperation with the robot, to make sure slicing focal point role and make certain secure slicing quality;
5) Laser reducing head can face up to 1.0Mpa fuel stress to multiplied the capability of reducing stainless metal and different materials.

Details

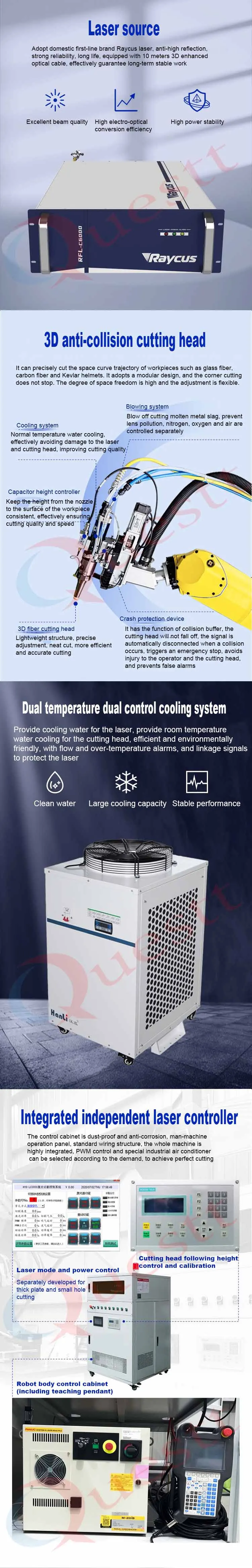

1.Laser source.

Adopt domestic first-line brand Raycus laser, anti-high reflection.strong reliability, long life, equipped with 10 meters 3D enhanced optical cable, effectively guarantee long-term stable work

Excellent beam quality

High electro-optical conversion efficiency

High power stability

2.3D anti-collision cutting head

It can precisely cut the space curve trajectory of workpieces such as glass fiber,carbon fiber and Kevlar helmets. lt adopts a modular design, and the corner cutting does not stop. The degree of space freedom is high and the adjustment is flexible.

Blowing system

Blow off cutting molten metal slag, preventlens pollution, nitrogen, oxygen and air arecontrolled separately

Cooling system

Normal temperature water cooling.effectively avoiding damage to the laserand cutting head, improving cutting quality

Capacitor height controller

Keep the height from the nozzle to the surface of the workpiece consistent, effectively ensuring cutting quality and speed

3D fiber cutting head

Lightweight structure, preciseadjustment, neat cut, more efficientand accurate cutting

Crash protection device

lt has the function of collision buffer, thecutting head will not fall off, the signal isautomatically disconnected when a collisionoccurs,triggers an emergency stop, avoids injury to the operator and the cutting head.and prevents false alarms

4.Dual temperature dual control cooling system

Provide cooling water for the laser, provide room temperature water cooling for the cutting head, efficient and environmentally friendly, with flow and over-temperature alarms, and linkage signals to protect the laser

Clean water

Large cooling capacity

Stable performance

5.Integrated independent laser controller

The control cabinet is dust-proof and anti-corrosion, man-machine operation panel, standard wiring structure, the whole machine is highly integrated,PWM control and special industrial air conditioner can be selected according to the demand, to achieve perfect cutting

Cutting head following heightcontrol and calibration

Laser mode and power control

Separately developed for thick plate and small hole cutting

Robot body control cabinet(including teaching pendant)

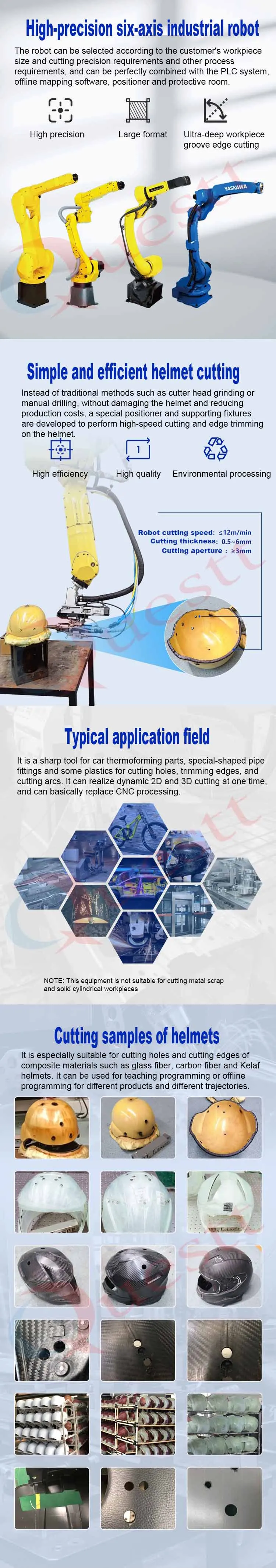

6.High-precision six-axis industrial robot

The robot can be selected according to the customer's workpiece size and cutting precision requirements and other process requirements, and can be perfectly combined with the PLC system off line mapping software, positioner and protective room.

High precision

Large format

Ultra-deep workpiece groove edge cutting

Specification

Application

Metallurgy, mold, machinery manufacturing, petrochemical, light industry, energy, transportation and other industries.

Simple and efficient helmet cutting

It is a sharp tool for car thermoforming parts, special-shaped pipe fittings and some plastics for cutting holes, trimming edges, and cutting arcs.it can realize dynamic 2D and 3D cutting at one timeand can basically replace CNC processing.

NOTE: This equipment is not suitable for cutting metal scrapand solid cylindrical workpieces

Cutting samples of helmets

It is especially suitable for cutting holes and cutting edges of composite materials such as glass fiber, carbon fiber and Kelaf helmets. it can be used for teaching programming or offline programming for different products and different trajectories.
