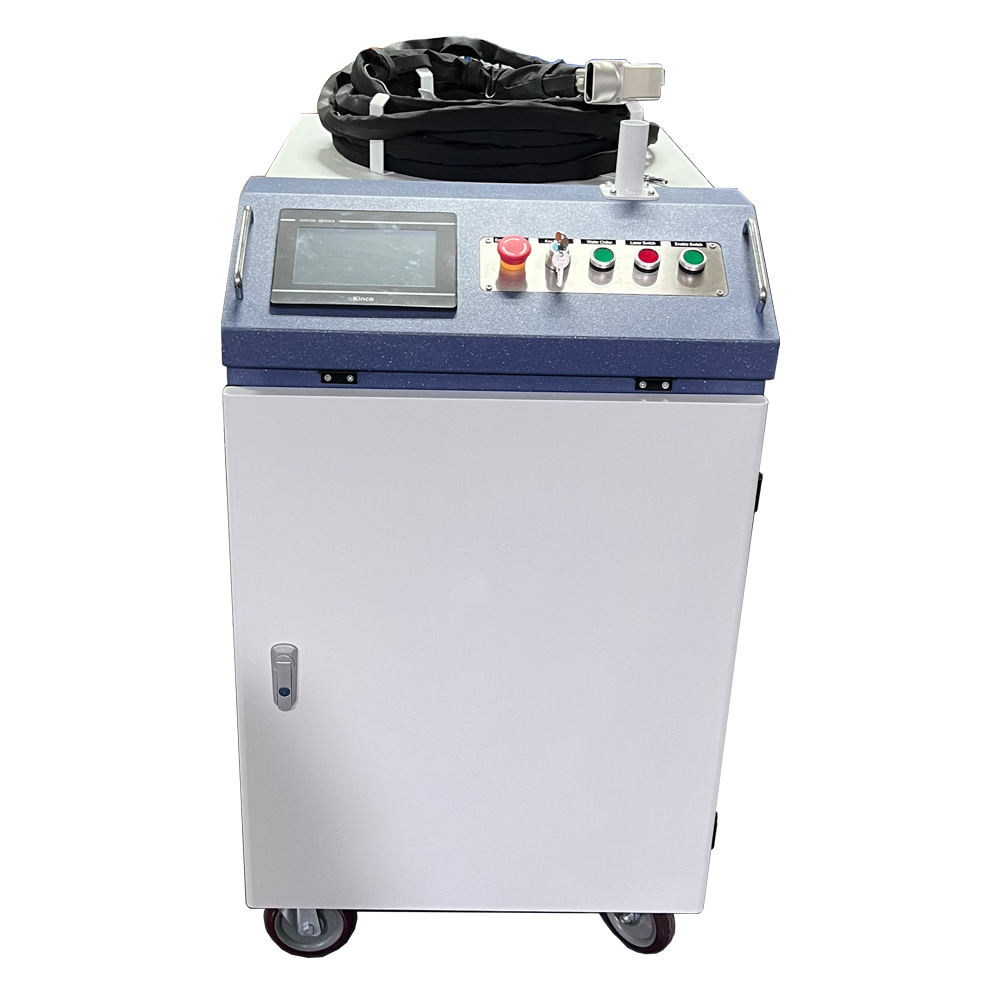

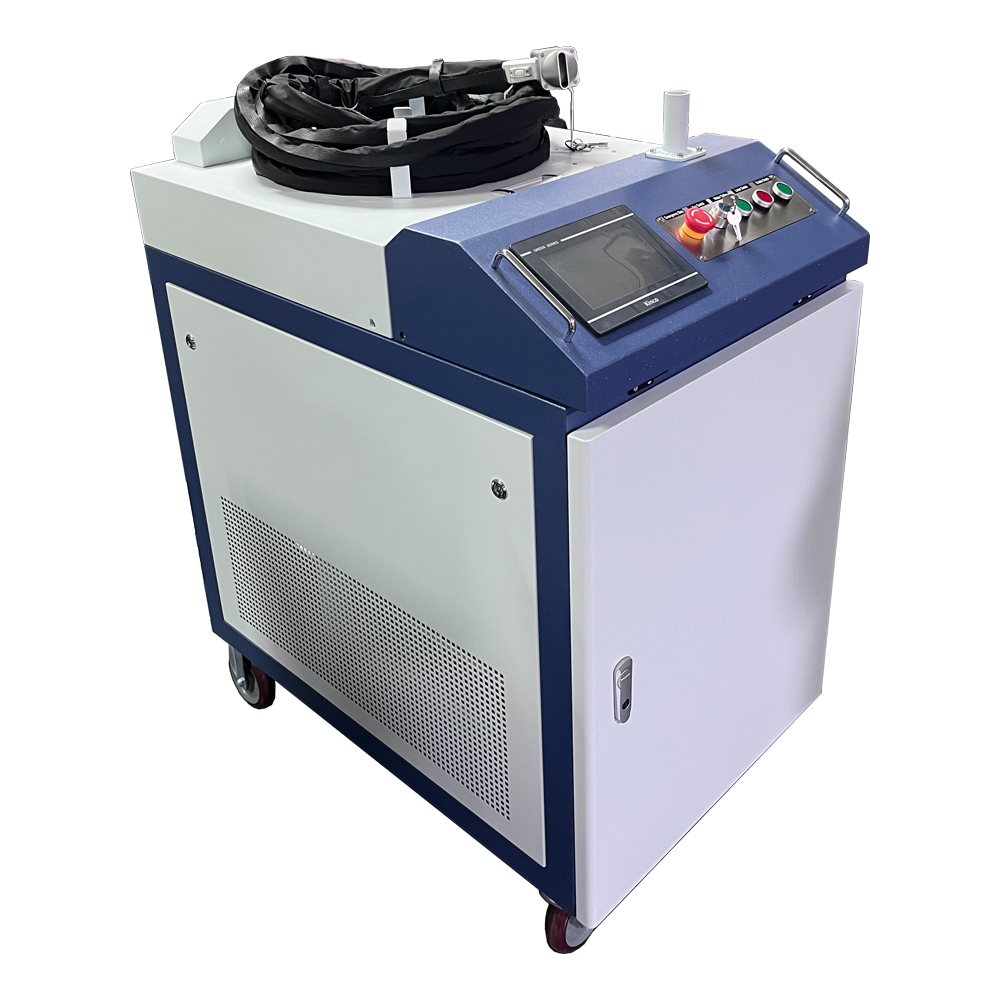

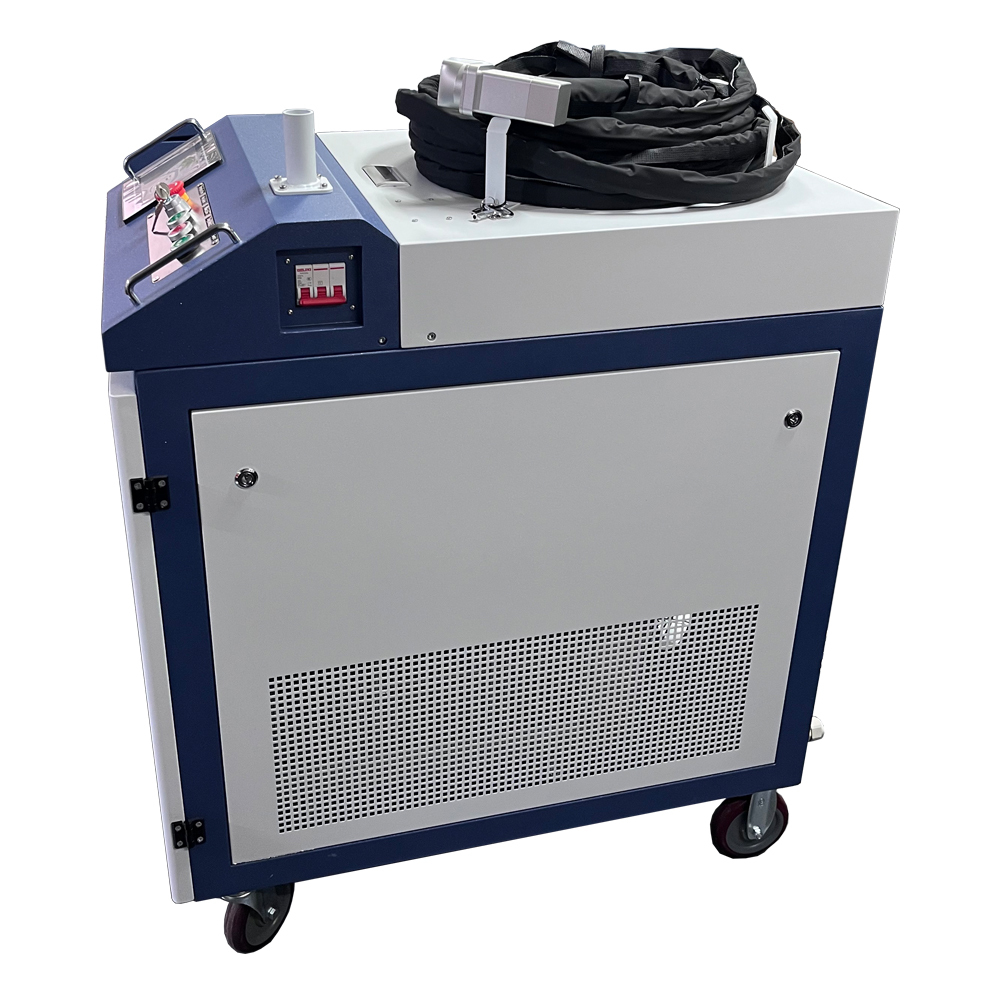

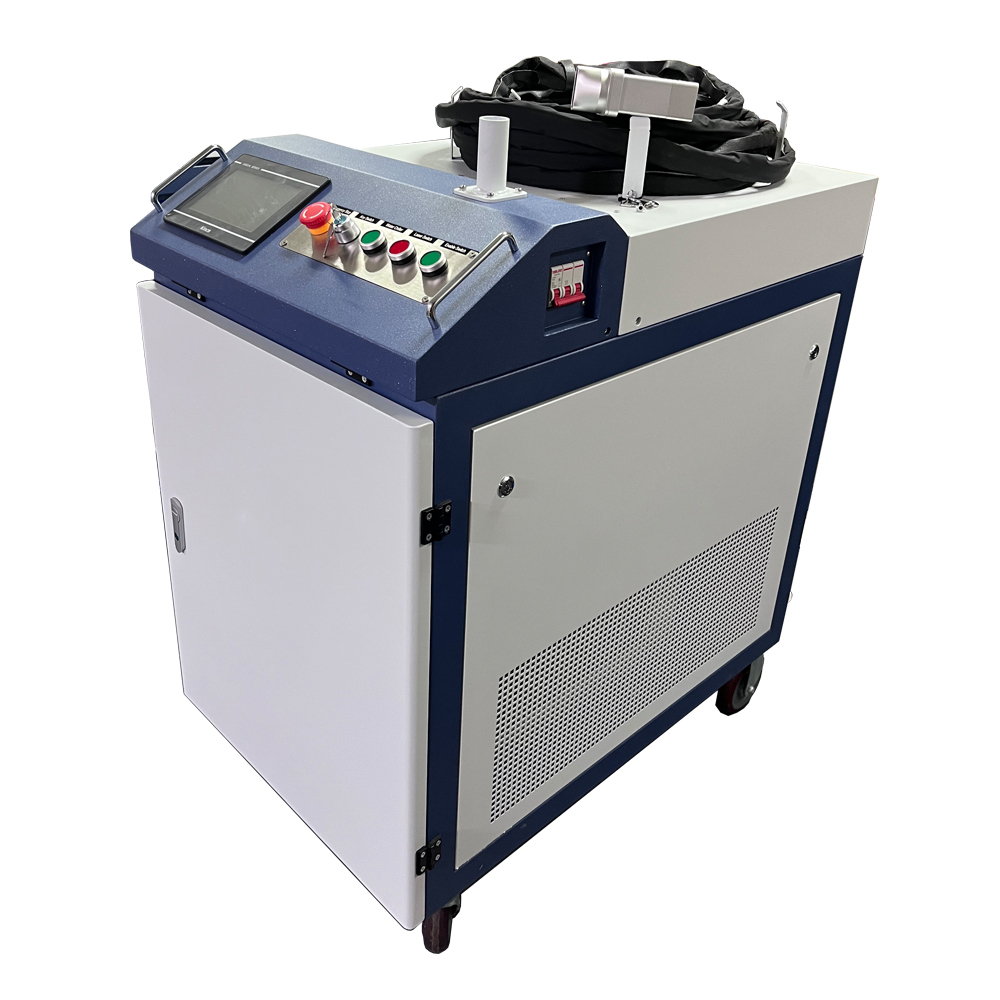

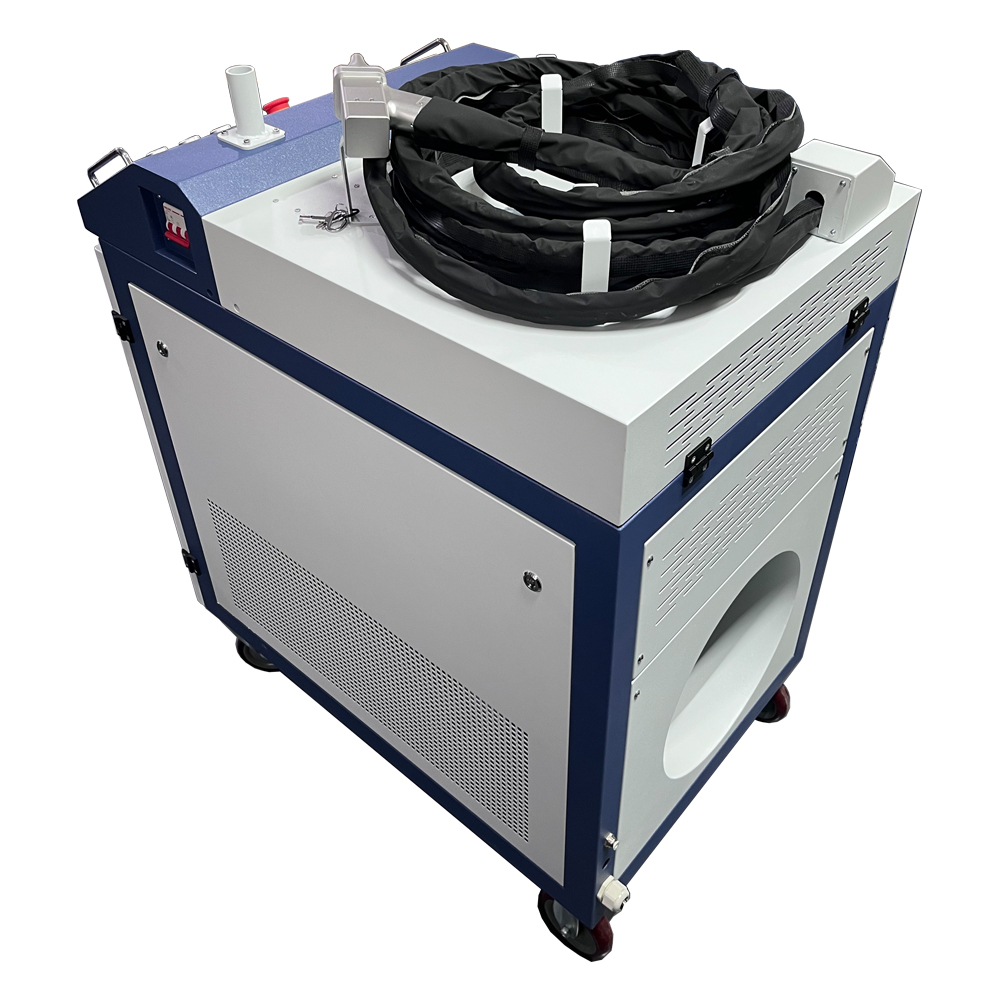

1000w CW Fiber Laser Cleaner
Products Description
1000w CW Fiber Laser Cleaner is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system. It has high average power, high single pulse energy, uniform spot energy distribution, convenient use and maintenance, etc., it is an ideal choice for mold surface treatment, automobile
manufacturing, shipbuilding, petrochemical industry, rubber tire manufacturing and other industrial applications.
1000w CW Fiber Laser Cleaner Features:
1. Non-contact cleaning does not damage the base of the parts.
2. Precise cleaning can realize selective cleaning with precise position and precise size.
3. No chemical cleaning fluid, no consumables, safety and environmental protection.
4. The operation is simple, and it can be powered on, and it can be hand-held or cooperated with a manipulator to realize automatic cleaning.
5. The cleaning efficiency is very high, saving time.
6. The laser cleaning system is stable and hardly needs maintenance.
1000w CW Fiber Laser Cleaner Specification:
| Model | QA-LC1000C | QA-LC1500C |
| Laser source |
MAX,Raycus,JPT |
MAX,Raycus,JPT |
| Laser power |
1000W |
1500W |
| Fiber cable length | 10 meters | 15 meters |
| Laser wavelength | 1064nm | 1064nm |
| Pulse energy | 1.5 mJ | 1.8mJ |
| Pulse frequency | 1-2000KHz | 1-2000KHz |
| Cleaning speed | ≤12 M²/Hour | ≤20 M²/Hour |
| Cooling | Water cooling | Water cooling |
| Dimension | 1200*500*900mm | 1200*500*900mm |
| Packing | 1340x680x1020mm | 1340x680x1020mm |
| Net weight | 185kg | 190kg |
| Gross weight | 200kg | 210kg |
| Beam width | 10-100mm | 10-100mm |
| Optional | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase AC 220V,2.5A | Single Phase AC 220V,2.5A |
Details

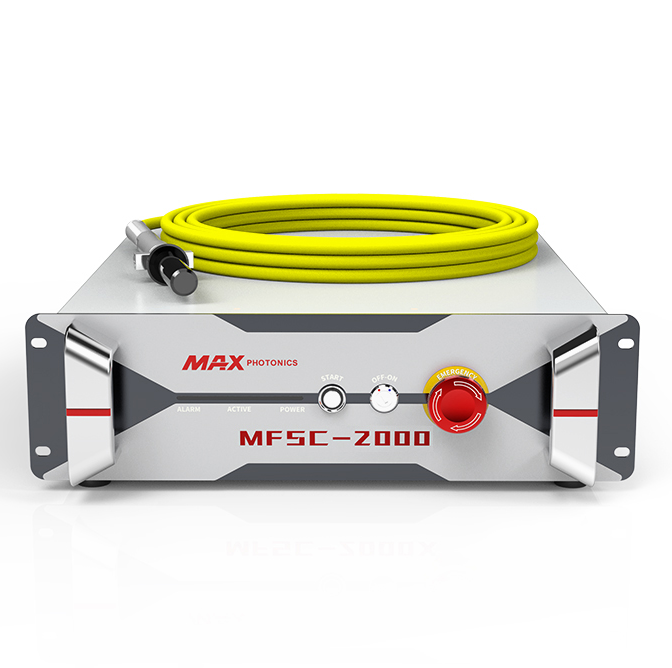

Continuous laser source
It can quickly and effectively clean the surface paint layer,oxide layerand rust,and provide an environmentally friendly and efficient cleaing solution for ships,aviation,heavy industry and other industries

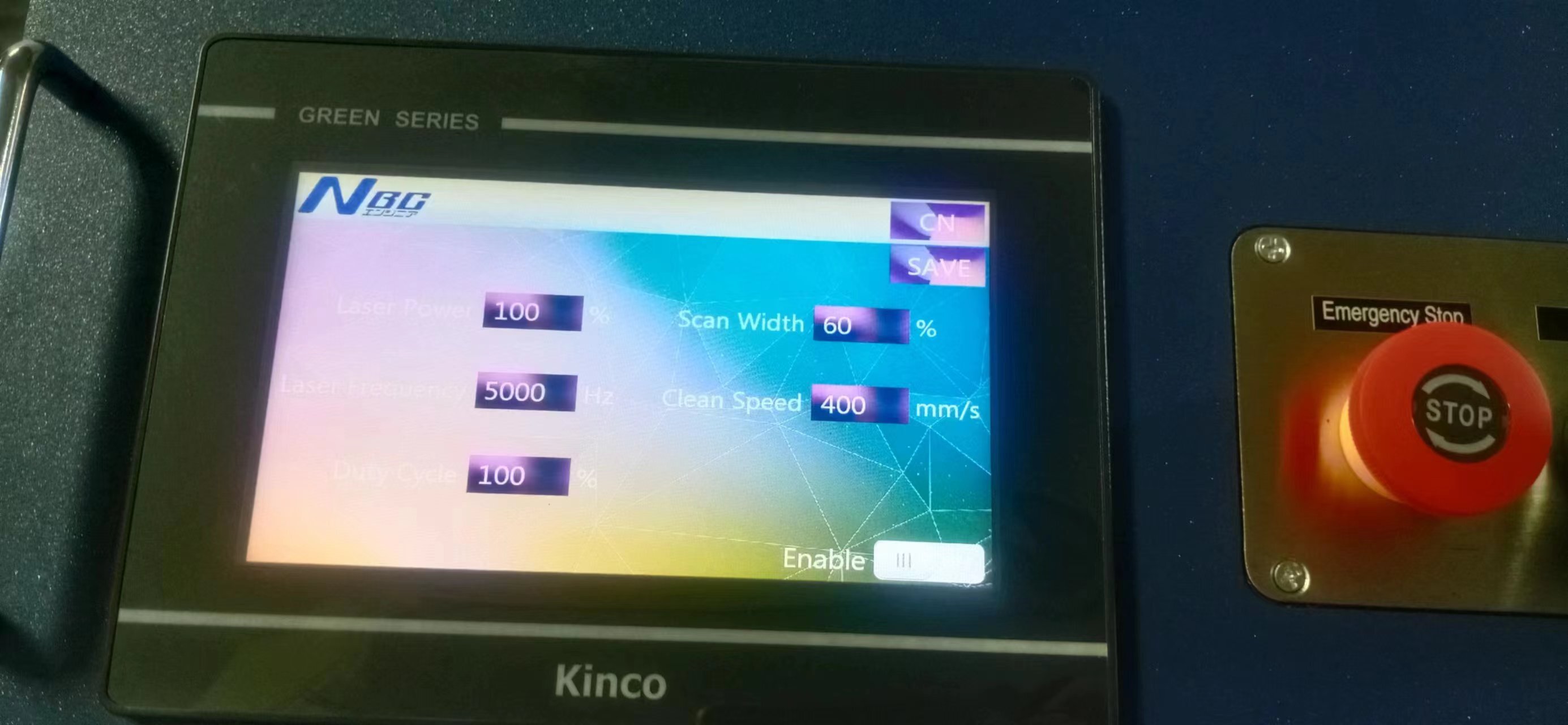

Touch Screen
Control Laser Cleaning System
7 languages supported
Easy to operatelntegrated automation
With focus holder,light weight
Ultra-wide cleaning format

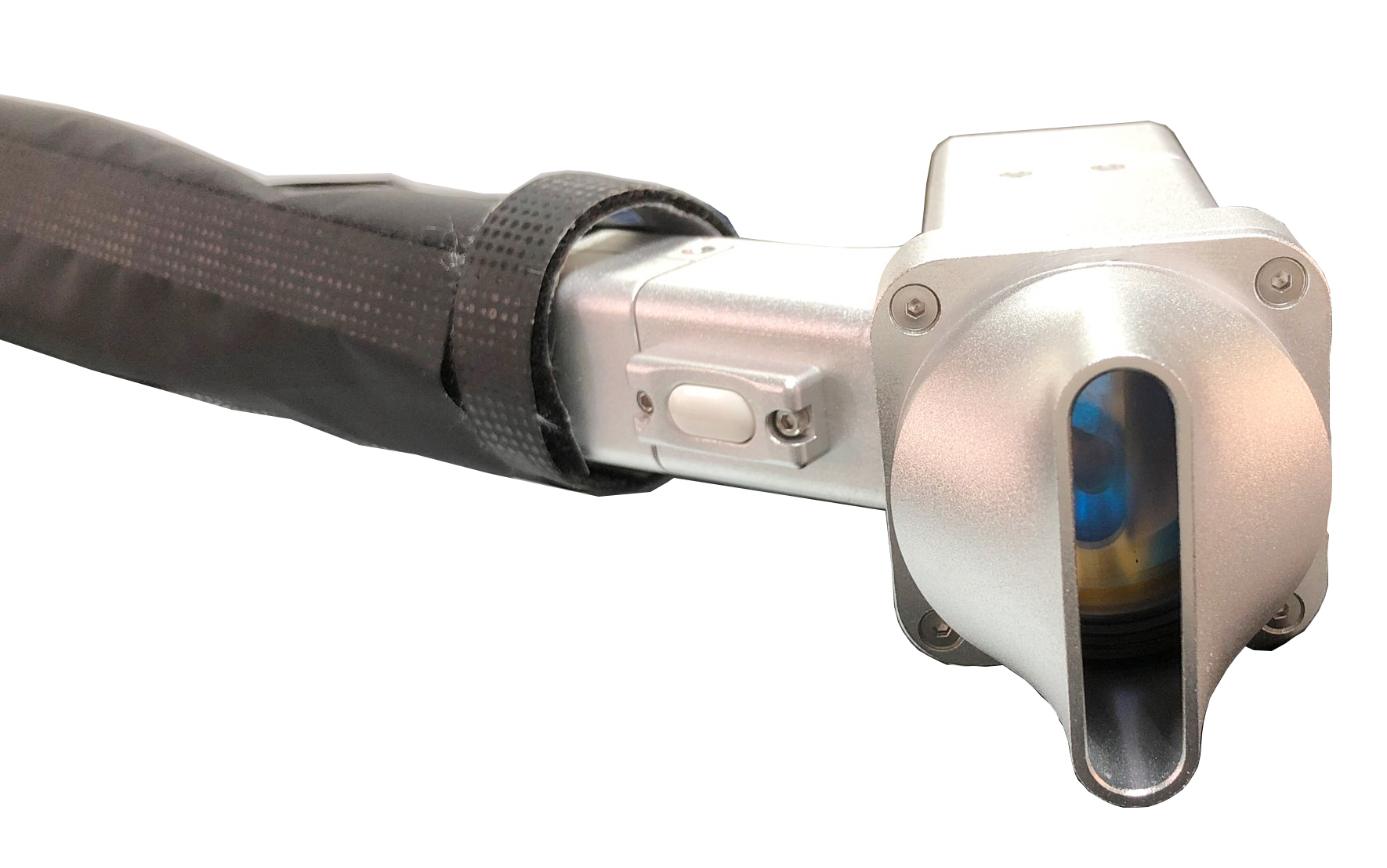

Handheld laser head design
The laser is concentrated cleaning effect is better
Battery is optional,it is convenient to work
Outdoos with 8 hours
Application:
|
Metal workpiece laser derusting,degreasing,laser paint removal,laser removal of zinc and film,laser coating removal,widely used in aerospace,mold,microelectronics,construnction,nuclear power plants,automobile anufaturing,military etc. |

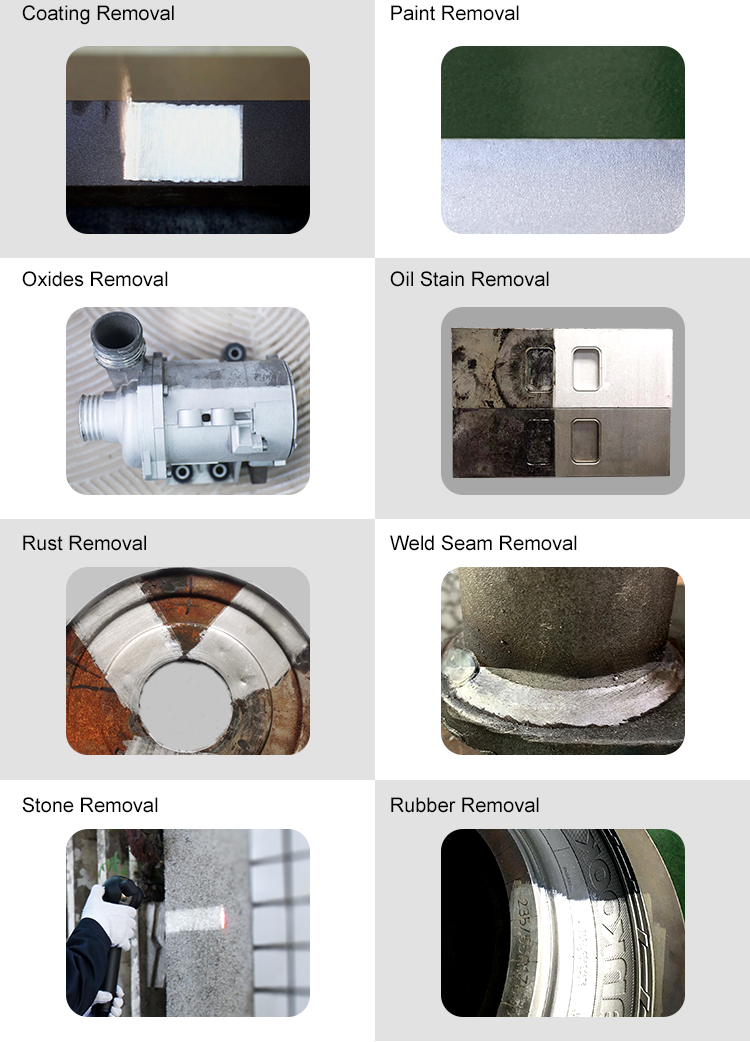

Samples:
|
The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force are the most difficult to destroy. Note: capillary force from a thin liquid layer in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants |
Company Introduction:

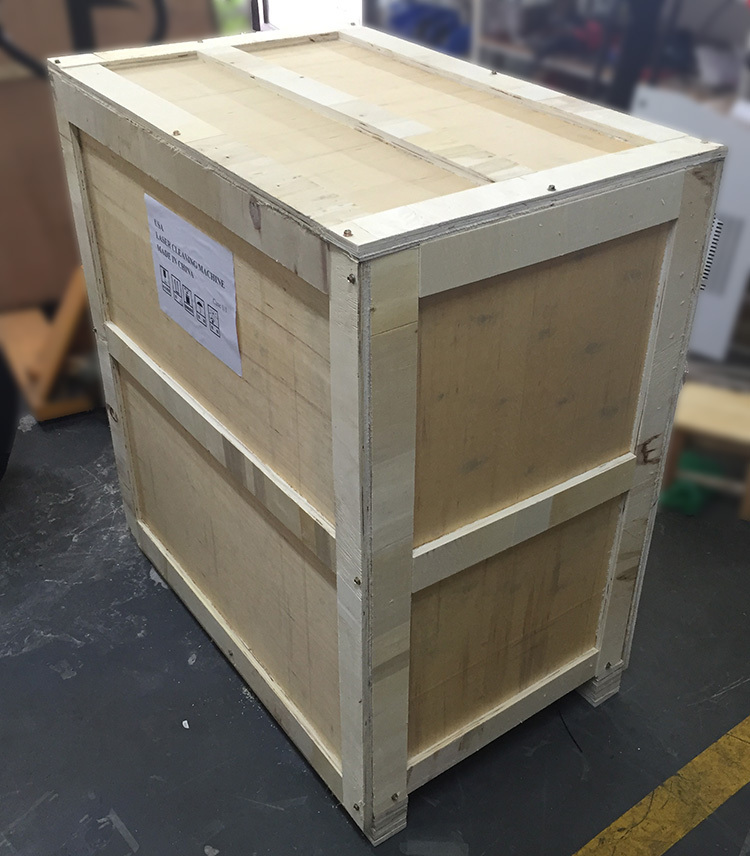

Package:
